Competitive Price OEM IPS Screen Panel Small Touch Screen TFT LCD Display Module: The Definitive Guide for Global Engineering Partners

Searching for a high-performance, compact visual interface that pairs broad viewing versatility with a competitive price OEM IPS screen panel? WeiTai engineer-grade visual components supply the industrial global marketplace with a premier line of small touch screen TFT LCD display module options. Ranging from 0.99 to 17.3 inches—with dedicated specialized form factors in 2.8, 3.0, 4.3, 5.9, 6.8, 7.8, 8, and 10.1 inches—these precision embedded components bypass complex sourcing channels. By partnering directly with the manufacturing facility, procurement professionals secure a reliable, field-tested display architecture tailored strictly for multi-environment commercial, medical, smart home, and heavy automated application infrastructure.

This highly optimized engineering line delivers a stunning competitive price OEM IPS screen panel matrix alongside a durable small touch screen TFT LCD display module. Each subsystem combines wide-view in-plane switching dynamics with resilient integrated circuit drivers to ensure vivid graphics, high text clarity, and instantaneous touch processing. By moving away from standard rigid visual packages, global product innovators leverage the WeiTai design catalog to configure custom controller layouts, specialized flex cable routings, and unique glass treatments. This manufacturing approach guarantees clean mechanical alignment, fast prototyping cycles, and long-term hardware availability across your entire global equipment portfolio.

Core Functional Features of the Small-Scale Visual Module

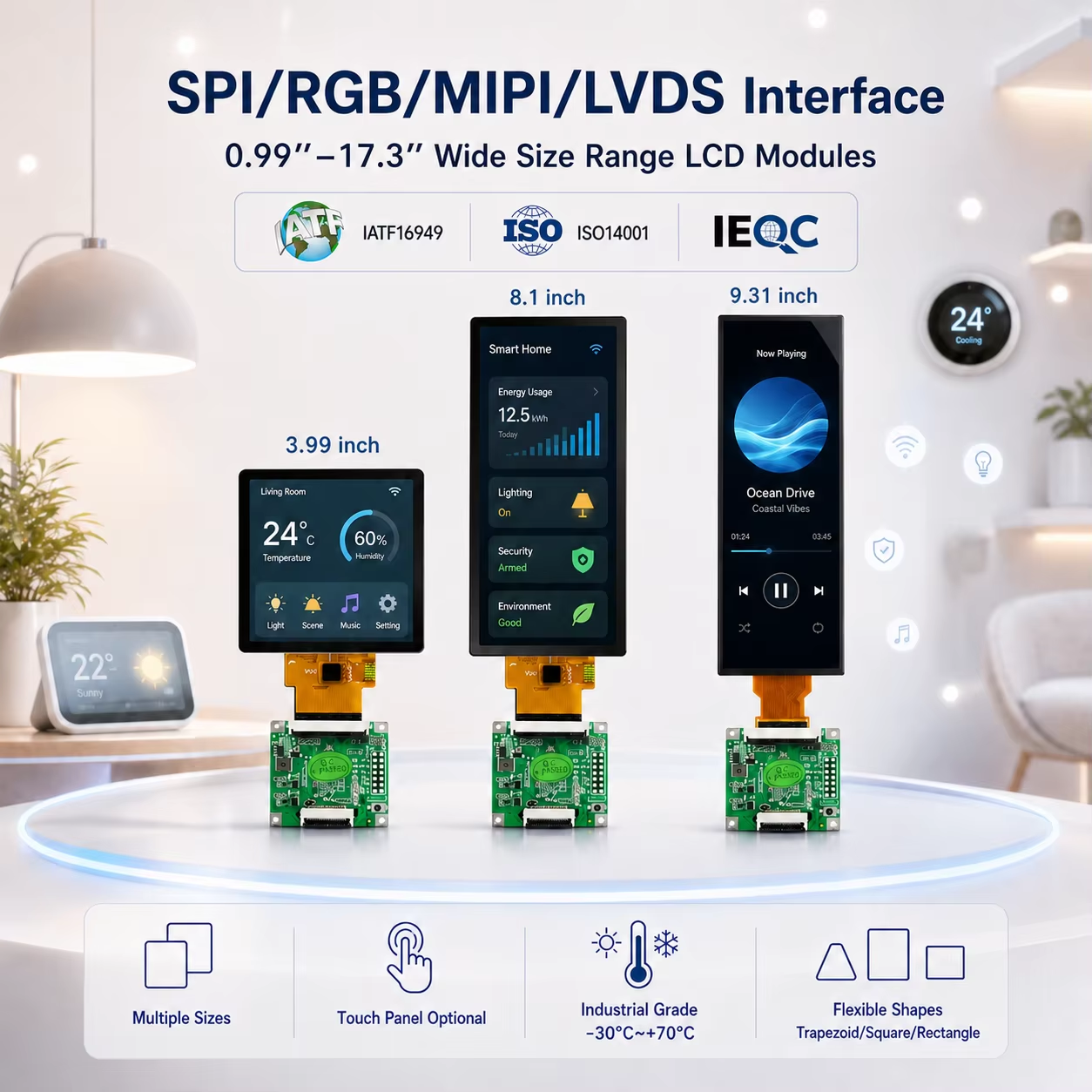

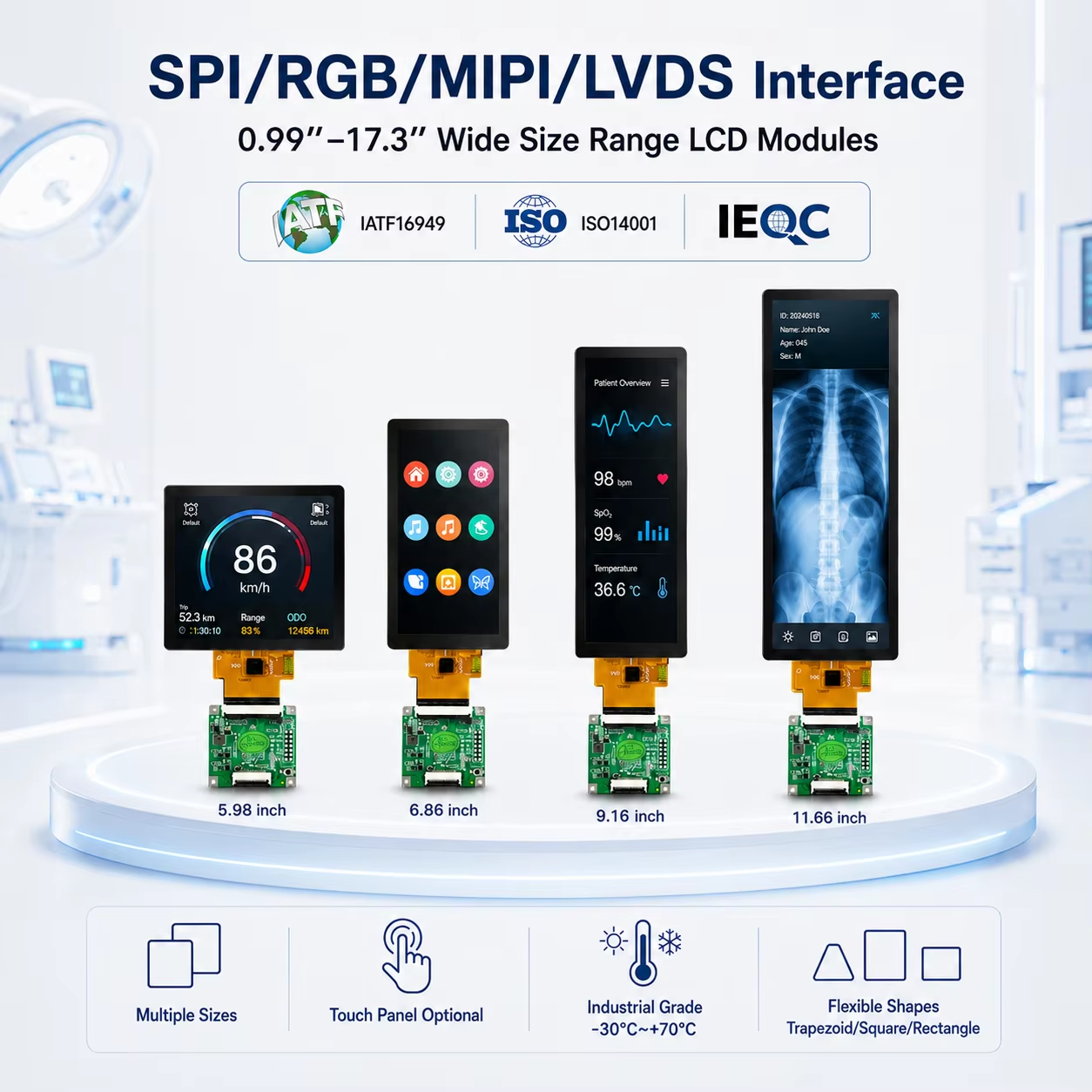

• Broad Dimension Adaptability: The vast choice matrix extends from ultra-compact 0.99 wear-resistant instrumentation plates up to versatile 17.3 workstation panels, including hard-to-source mid-range options like 2.8, 3.0, 4.3, 5.9, 6.8, 7.8, 8, and 10.1 inch configurations.

• True Color True View Technology: Utilizing premium in-plane switching liquid crystal formulations, the competitive price OEM IPS screen panel yields full 178-degree horizontal and vertical viewing envelopes with completely stable color retention and high contrast performance.

• Dual Sensed Interaction Architecture: Every small touch screen TFT LCD display module can be manufactured using highly accurate projected capacitive sensing or reliable analog resistive overlays, adapting smoothly to specialized gloved-hand use or wet operating environments.

• High Density Pixel Layout: The pixel arrangements across the sub-10-inch form factors are engineered to maximize sharp alphanumeric legibility, clear diagnostic waveforms, and smooth graphical user interface renderings for premium product presentation.

• Streamlined Signal Processing: The engineering boards support modern industry-standard communication buses, enabling clean electrical pairing with low-power microcontrollers and complex application processors through standard SPI, MCU, RGB, or MIPI interfaces.

Strategic Commercial Value for B2B Purchasing Channels

Integrating the WeiTai small touch screen TFT LCD display module into your long-term product line delivers strong financial and logistical advantages. Procuring a genuine competitive price OEM IPS screen panel allows global engineering firms to significantly lower their structural bill-of-materials costs, bypass third-party trading markups, and protect product profit margins against unexpected component pricing shifts.

Furthermore, the extensive custom configuration service provided directly through the WeiTai development pipeline drastically lowers your initial engineering and tooling investments. Instead of forcing your development team to modify pre-existing industrial housing to fit inflexible standard display sizes, WeiTai configures the ribbon lengths, backlight profiles, and controller chips to match your exact electrical specifications. This flexible design approach shortens product validation cycles, speeds up market release timelines, and ensures a sleek, highly reliable final product that positions your company far ahead of standard marketplace competition.

Specification

Size	Part No.	Resolution	Active Area （mm）	Brightness  (cd/㎡）	Interface	Op. Temp.
0.99''	WTLCMB0099S02029-AN	128*115	24.36*21.89	300	SPI	-10°C~60°C
1.66''	WTTCMI0166S02085-AN	400*400	39.84*39.84	230	QSPI	-20°C~70°C
2.86''	0316IVO-SV1	820*320	65.65*26.4	550	MIPI	-20°C~80°C
3.0''	JL-030HSD10-SV1-VTS	102*102	36.72*65.28	400	MIPI	-20°C~70°C
3.08''	WTTCMI0308S40189-DN	432*928	33.05*70.99	330	RGB	-20°C~70°C
3.99''	WTLCMB0399S08042-AN	400*960	39.18*94.03	300	MIPI	-20°C~70°C
4.39''	WTLCMB0439S10140-AN	360*640	53.56*95.23	350	RGB	-20°C~60°C
5.98''	WTLCMI0598G18172-LN	640*1280	67.97*135.9	1250	4-Lane LVDS	-30°C~85°C
6"	M060AWRD-R0	1280*640	136.3* 68.16	1000	LVDS	-40°C~85°C
6.80''	WTLCMI0680S12138-BN	480*1280	60.22*160.59	580	MIPI	-20°C~70°C
6.86''	WTLCMI0686S12177-AN	480*1280	60.22*160.58	400/500/1000	MIPI/4-Lane MIPI	-20°C~70°C
6.92"	M069AWA1-R0	1280*720	156.4*80.13	750	LVDS	-30°C~85°C
7.0''	M070AWPA-R0	800*480	154.75* 87.04	1000	LVDS	-30°C~85°C
7.84''	HWTL078401G15-24MR	400*1280	59.40*190.08	500/800	RGB/MIPI/4-Lane MIPI	-20°C~70°C
8"	T080ADPB R0	800*480	174.0* 104.40	850	LVDS	-20°C~70°C
8.10''	WTLCMB0810G16165-KN	600*1600	72.23*192.62	500/1000	RGB/MIPI	-20°C~70°C
8.8"	E088AWR1-R0	1280*480	209.2 x 78.48	1000	LVDS	-30°C~85°C
8.90''	WTLCMB0890H24089-BN	1920*720	211.68*79.38	500	LVDS	-20°C~70°C
9"	M090AWA6-R0	1280*720	198.72*111.7	1000	LVDS	-30°C~85°C
9.16''	WTLCMB0916S14001-FN	462*1920	54.44*226.25	400/450/500/1000	MIPI/4-Lane MIPI	-20°C~70°C
9.20''	WTL092001G01-32M	1920*384	224.64*44.92	2500	LVDS	-30°C~85°C
9.31''	WTTCMB0931S18198-AN	600*1600	82.94*221.18	450/500	MIPI	-20°C~70°C
9.36''	WTLCMI0936G14137-KN	320*1280	58.08*232.32	500	2-Lane MIPI/4-Lane MIPI	-20°C~70°C
9.6''	WTLCMB0930G14043-GN	320*1280	58.08*232.32	450/500/750/800/1000	MIPI/4-Lane MIPI	-20°C~70°C
9.66''	WTLCMI0966F24010-AS	480*1920	58.09*232.6	800/1500	4-Lane MIPI	-20°C~70°C
9.88''	WTL098802G03-24M_IVO	400*1600	32.76*240	420/800	MIPI/4-Lane MIPI	-20°C~70°C
10.11''	WTLCMB1011S16006-UN	440*1920	57.94*252.86	500/1000/1500	RGB/MIPI/4-Lane MIPI	-20°C~70°C
10.16''	WTTCMB1016I18206-BN	600*1600	90.61*241.63	400	MIPI	-20°C~70°C
10.25"	E102AWF8 R0	1920*720	243.64*91.36	1000	LVDS	-30°C~85°C
11.12''	WTLCMI1166F18001-BA	380*1920	58.14*276.48	550/700	MIPI/4-Lane MIPI	-20°C~70°C
11.8"	M118AW41-R0	1200*1600	180.0* 240.0	750	LVDS	-30°C~85°C
12.3”	M123AWF4 R0	1920*720	292.03*109.5	940	LVDS	-30°C~85°C
12.6”	E126AW41-R0	1280*1600	200.06*250.0	1000	LVDS	-30°C~85°C
12.88"	M128AWF1-R0	1920*720	285.12* 160.3	900	LVDS	-30°C~85°C
14"	M140AW4X-R0	1200*1600	213.12* 284.1	750	LVDS	-40°C~85°C
15.6''	WTLCMN1560I54078-AN	1920*1080	344.16*193.5	250	eDP	-10°C~60°C

FAQ

Q1: Do you accept sample order or small quantity order?
A1: Yes, you can place sample orders for testing first, we will fully support you every stage of new product introduction,from
EVT -> DVT -> PVT, until mass production.

Q2: How do you guarantee the quality?
A2: We are qualified for a series of quality system certification (ISO14001 etc.) and brand customer factory audit every year.
We have strict supplier quality control system from NPI to each lot mass production, and routine supplier's factory audit will be done every year.

Q3: Could you offer OEM&ODM service?
A3: Yes, we have sufficient capacity（30,000,000pcs/years） to provide OEM&ODM service.

Q4: How long is your product life cycle?
A4: The average life cycle of most of our products is more than 5 years.
