Factory Sales Best Price 7.0'' 8.10'' 8.90'' 9.16'' 9.20'' 9.31'' 9.36'' 9.6'' 10.11'' 10.16 Incn TFT LCD Screen Display Module

Factory Sales Best Price 7.0'' 8.10'' 8.90'' 9.16'' 9.20'' 9.31'' 9.36'' 9.6'' 10.11'' 10.16 Incn TFT LCD Screen Display Module

Source factory sales best price 7.0'' 8.10'' 8.90'' 9.16'' 9.20'' 9.31'' 9.36'' 9.6'' 10.11'' 10.16 incn TFT LCD screen display module units (7.0"-10.16"). Factory direct by WeiTai.

Overview

Overview

Products Description

WeiTai delivers a premium, manufacturing-direct portfolio with our Factory Sales Best Price 7.0'' 8.10'' 8.90'' 9.16'' 9.20'' 9.31'' 9.36'' 9.6'' 10.11'' 10.16 Incn TFT LCD Screen Display Module selection. This industrial-grade lineup addresses the precise display requirements of global OEMs and system integrators. Engineered for long-term reliability, each high-performance TFT LCD module optimizes optical clarity, thermal endurance, and power consumption across unique mid-sized form factors. By eliminating middleman markups, WeiTai secures structural cost reductions for your production lifecycle while guaranteeing consistent component availability. This comprehensive series serves as the definitive visual interface solution for demanding automated setups, medical devices, and smart commercial terminals.

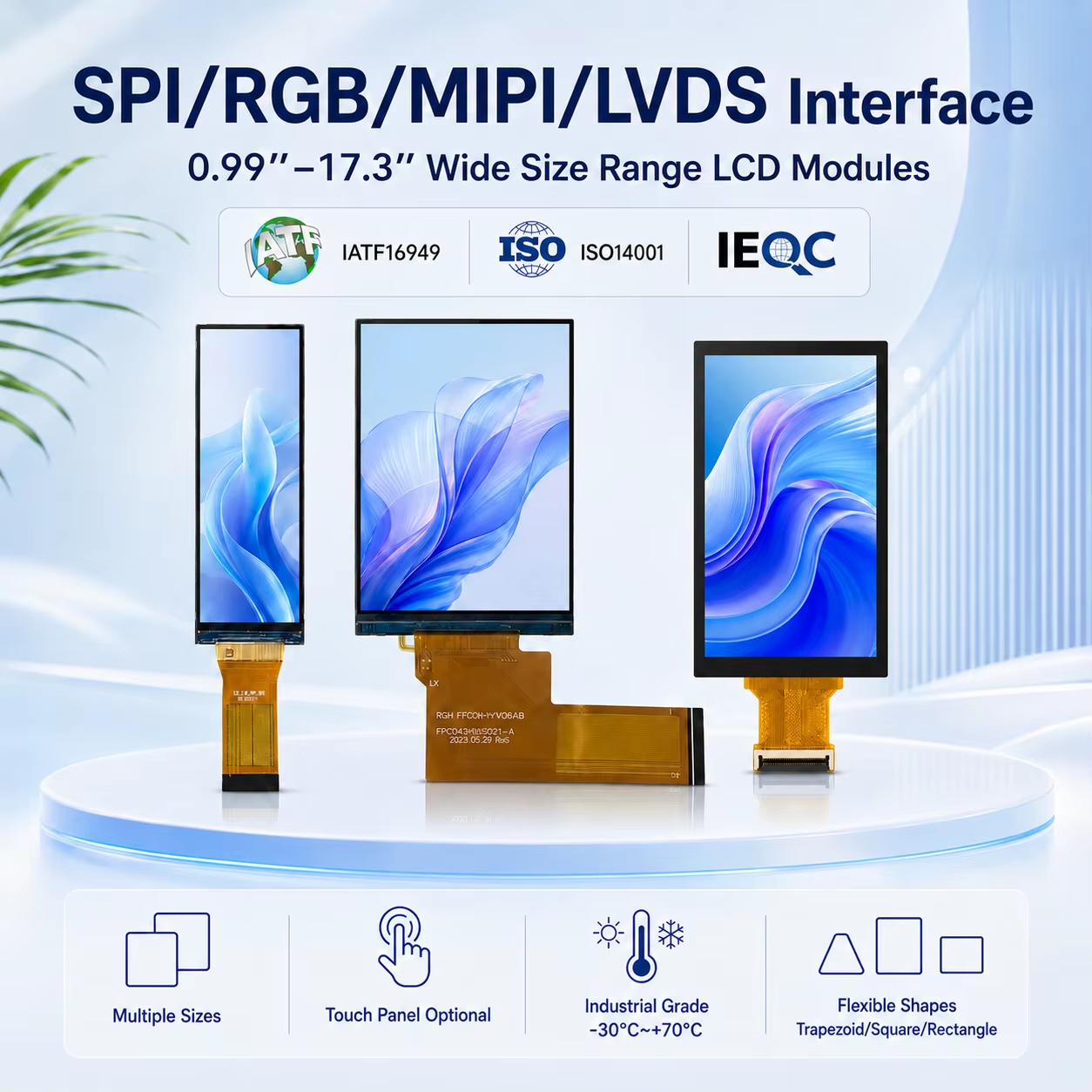

product factory sales best price 70 810 890 916 920 931 936 96 1011 1016 incn tft lcd screen display module-2

Core Functional and Optical Features

Diverse Scale Portfolio Availability: Offers seamless hardware compatibility across highly specific intermediate physical dimensions covering 7.0, 8.10, 8.90, 9.16, 9.20, 9.31, 9.36, 9.6, 10.11, and 10.16 inches to eliminate enclosure modification friction.
Optimized Luminance and Viewability: Employs an advanced light-emitting diode backlight structure that supplies strong brightness output to counteract ambient glare and internal room reflections.
Direct Wholesale Procurement Model: The underlying factory sales best price 7.0'' 8.10'' 8.90'' 9.16'' 9.20'' 9.31'' 9.36'' 9.6'' 10.11'' 10.16 incn TFT LCD screen display module commercial strategy provides direct factory access, reducing bill-of-materials overheads.
Vivid Graphic and Data Definition: Built with high pixel-per-inch density thresholds across all custom form factors to ensure clean presentation of complex sensor data, curves, and alpha-numeric readouts.
Flexible Interface Controller Support: Features an adaptable signal interface framework designed to pair smoothly with multiple processing platforms through standard parallel, serial, or differential data pathways.

product factory sales best price 70 810 890 916 920 931 936 96 1011 1016 incn tft lcd screen display module-3

Strategic Commercial Value and B2B Supply Chain Optimization

Procuring your visual assemblies via the WeiTai factory sales best price 7.0'' 8.10'' 8.90'' 9.16'' 9.20'' 9.31'' 9.36'' 9.6'' 10.11'' 10.16 incn TFT LCD screen display module production matrix injects distinct operational and commercial advantages into your hardware manufacturing cycle. Partnering directly with an authentic manufacturer enables enterprise purchasing branches to eliminate third-party broker fees and trading margins, reducing direct bill-of-materials expenditures and insulating project profit horizons against sudden supply chain price adjustments.

product factory sales best price 70 810 890 916 920 931 936 96 1011 1016 incn tft lcd screen display module-4

product factory sales best price 70 810 890 916 920 931 936 96 1011 1016 incn tft lcd screen display module-5

product factory sales best price 70 810 890 916 920 931 936 96 1011 1016 incn tft lcd screen display module-6

product factory sales best price 70 810 890 916 920 931 936 96 1011 1016 incn tft lcd screen display module-7

Specification

_Size	_{Part No.}	_Resolution	Active Area （mm）	Brightness (cd/㎡）	_Interface	_{Op. Temp.}
0.99''	WTLCMB0099S02029-AN	128*115	24.36*21.89	300	SPI	-10°C~60°C
1.66''	WTTCMI0166S02085-AN	400*400	39.84*39.84	230	QSPI	-20°C~70°C
2.86''	0316IVO-SV1	820*320	65.65*26.4	550	MIPI	-20°C~80°C
3.0''	JL-030HSD10-SV1-VTS	102*102	36.72*65.28	400	MIPI	-20°C~70°C
3.08''	WTTCMI0308S40189-DN	432*928	33.05*70.99	330	RGB	-20°C~70°C
3.99''	WTLCMB0399S08042-AN	400*960	39.18*94.03	300	MIPI	-20°C~70°C
4.39''	WTLCMB0439S10140-AN	360*640	53.56*95.23	350	RGB	-20°C~60°C
5.98''	WTLCMI0598G18172-LN	640*1280	67.97*135.9	1250	4-Lane LVDS	-30°C~85°C
6"	M060AWRD-R0	1280*640	136.3* 68.16	1000	LVDS	-40°C~85°C
6.80''	WTLCMI0680S12138-BN	480*1280	60.22*160.59	580	MIPI	-20°C~70°C
_6.86''	_{WTLCMI0686S12177-AN}	_480*1280	_60.22*160.58	_400/500/1000	MIPI/4-Lane MIPI	_-20°C~70°C
6.92"	M069AWA1-R0	1280*720	156.4*80.13	750	LVDS	-30°C~85°C
7.0''	M070AWPA-R0	800*480	154.75* 87.04	1000	LVDS	-30°C~85°C
_7.84''	_{HWTL078401G15-24MR}	_400*1280	_59.40*190.08	_500/800	RGB/MIPI/4-Lane MIPI	_-20°C~70°C
8"	T080ADPB R0	800*480	174.0* 104.40	850	LVDS	-20°C~70°C
8.10''	WTLCMB0810G16165-KN	600*1600	72.23*192.62	500/1000	RGB/MIPI	-20°C~70°C
8.8"	E088AWR1-R0	1280*480	209.2 x 78.48	1000	LVDS	-30°C~85°C
8.90''	WTLCMB0890H24089-BN	1920*720	211.68*79.38	500	LVDS	-20°C~70°C
9"	M090AWA6-R0	1280*720	198.72*111.7	1000	LVDS	-30°C~85°C
9.16''	WTLCMB0916S14001-FN	462*1920	54.44*226.25	400/450/500/1000	MIPI/4-Lane MIPI	-20°C~70°C
9.20''	WTL092001G01-32M	1920*384	224.64*44.92	2500	LVDS	-30°C~85°C
9.31''	WTTCMB0931S18198-AN	600*1600	82.94*221.18	450/500	MIPI	-20°C~70°C
9.36''	WTLCMI0936G14137-KN	320*1280	58.08*232.32	500	2-Lane MIPI/4-Lane MIPI	-20°C~70°C
_9.6''	_{WTLCMB0930G14043-GN}	_320*1280	_58.08*232.32	450/500/750/800/1000	MIPI/4-Lane MIPI	-20°C~70°C
9.66''	WTLCMI0966F24010-AS	480*1920	58.09*232.6	800/1500	4-Lane MIPI	-20°C~70°C
9.88''	WTL098802G03-24M_IVO	400*1600	32.76*240	420/800	MIPI/4-Lane MIPI	-20°C~70°C
_10.11''	_{WTLCMB1011S16006-UN}	_440*1920	_57.94*252.86	500/1000/1500	RGB/MIPI/4-Lane MIPI	-20°C~70°C
10.16''	WTTCMB1016I18206-BN	600*1600	90.61*241.63	400	MIPI	-20°C~70°C
10.25"	E102AWF8 R0	1920*720	243.64*91.36	1000	LVDS	-30°C~85°C
11.12''	WTLCMI1166F18001-BA	380*1920	58.14*276.48	550/700	MIPI/4-Lane MIPI	-20°C~70°C
11.8"	M118AW41-R0	1200*1600	180.0* 240.0	750	LVDS	-30°C~85°C
12.3”	M123AWF4 R0	1920*720	292.03*109.5	940	LVDS	-30°C~85°C
12.6”	E126AW41-R0	1280*1600	200.06*250.0	1000	LVDS	-30°C~85°C
12.88"	M128AWF1-R0	1920*720	285.12* 160.3	900	LVDS	-30°C~85°C
14"	M140AW4X-R0	1200*1600	213.12* 284.1	750	LVDS	-40°C~85°C
15.6''	WTLCMN1560I54078-AN	1920*1080	344.16*193.5	250	eDP	-10°C~60°C

FAQ

Q1: Do you accept sample order or small quantity order?
A1: Yes, you can place sample orders for testing first, we will fully support you every stage of new product introduction,from
EVT -> DVT -> PVT, until mass production.

Q2: How do you guarantee the quality?
A2: We are qualified for a series of quality system certification (ISO14001 etc.) and brand customer factory audit every year.
We have strict supplier quality control system from NPI to each lot mass production, and routine supplier's factory audit will be done every year.

Q3: Could you offer OEM&ODM service?
A3: Yes, we have sufficient capacity（30,000,000pcs/years） to provide OEM&ODM service.

Q4: How long is your product life cycle?
A4: The average life cycle of most of our products is more than 5 years.
