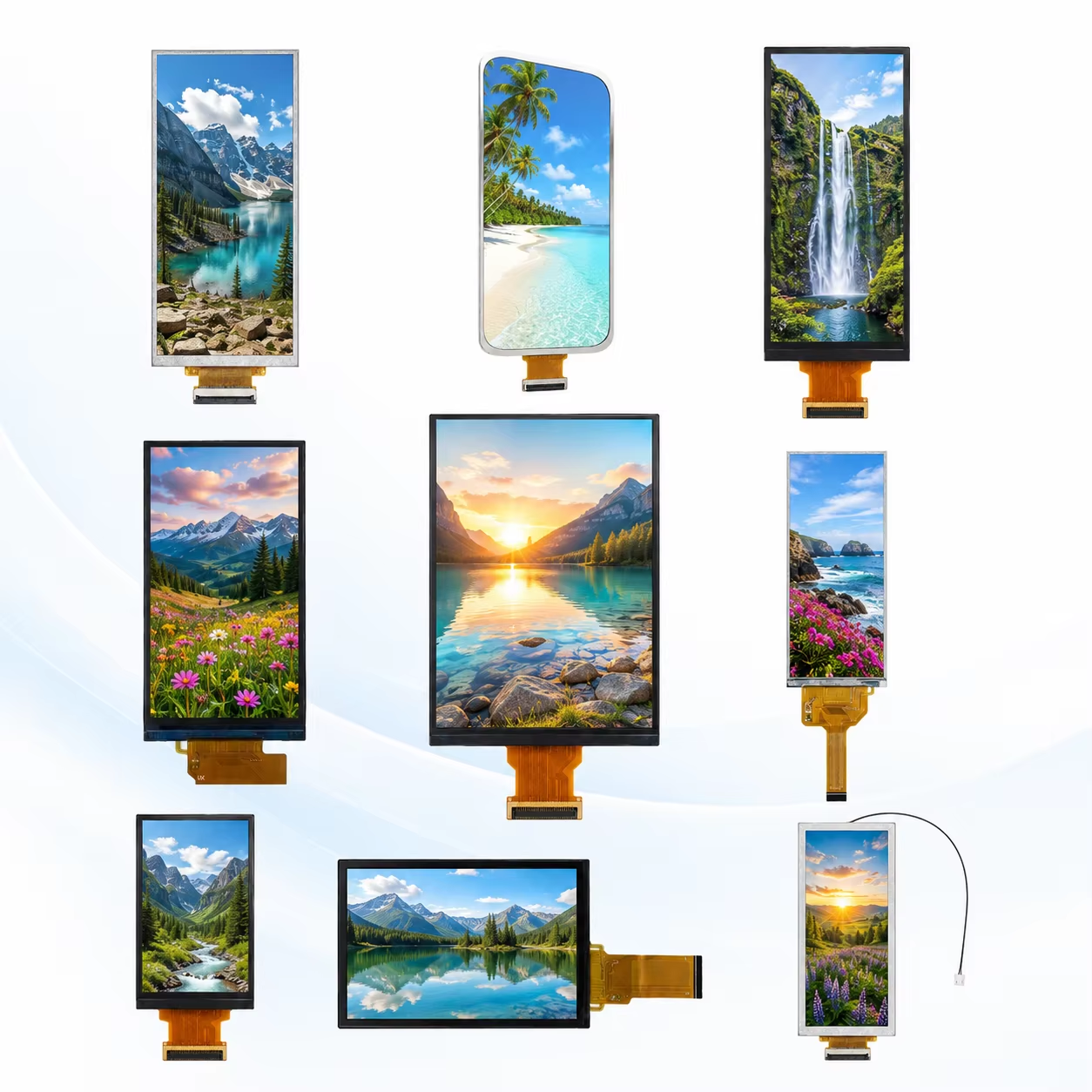

Source 0.99-17.3 inch Smart AI Service Robot Terminal LCD displays from WEITAI. Compact, rugged touch screens with MIPI, LVDS, SPI, and RGB interface support.
Looking for a premium Smart AI Service Robot Terminal LCD to elevate your automated hardware? WEITAI offers an advanced, multi-size Robot Terminal LCD Touch Screen Display series engineered precisely for modern smart kiosks, hospitality bots, and unmanned systems. Ranging from an ultra-compact 0.99-inch display up to a versatile 17.3-inch screen, this High Resolution Compact Design LCD lineup brings crisp visuals and industrial reliability to any automated platform. Featuring a versatile MIPI LVDS SPI RGB Interface Screen bus structure, these rugged units handle harsh operational conditions effortlessly. Upgrade your system with WEITAI and secure a reliable, long-lifecycle display partner today.
In the fast-evolving world of automation, your user interface can make or break the customer experience. This commercial-grade Smart AI Service Robot Terminal LCD collection by WEITAI bridges the gap between sleek consumer aesthetics and rugged industrial endurance. Developed as an all-in-one Robot Terminal LCD Touch Screen Display, each unit provides optimal touch sensitivity and vibrant color reproduction, ensuring smooth human-robot interaction in commercial spaces, hospitals, and smart warehouses.
Engineered with a High Resolution Compact Design LCD framework, these displays minimize bezel space, allowing product designers to save internal real estate for processing boards and batteries. The hardware layout features a highly adaptable MIPI LVDS SPI RGB Interface Screen hub, meaning you can easily match the tiny 0.99-inch SPI screen for status tracking or the larger 15.6-inch eDP/LVDS screens for interactive guidance. As a specialized Wide Temperature Robot Monitor, the entire line is built to counter extreme environmental stress, maintaining rapid pixel refresh rates without ghosting or thermal shutdown. If your project demands a high-performance Industrial Robot Touch Module backed by strict quality controls, WEITAI delivers the inventory depth and technical compliance you need to scale smoothly.
Space-Saving Compact Geometry: Designed around a High Resolution Compact Design LCD form factor, maximizing screen-to-body ratio for modern, streamlined robot profiles.

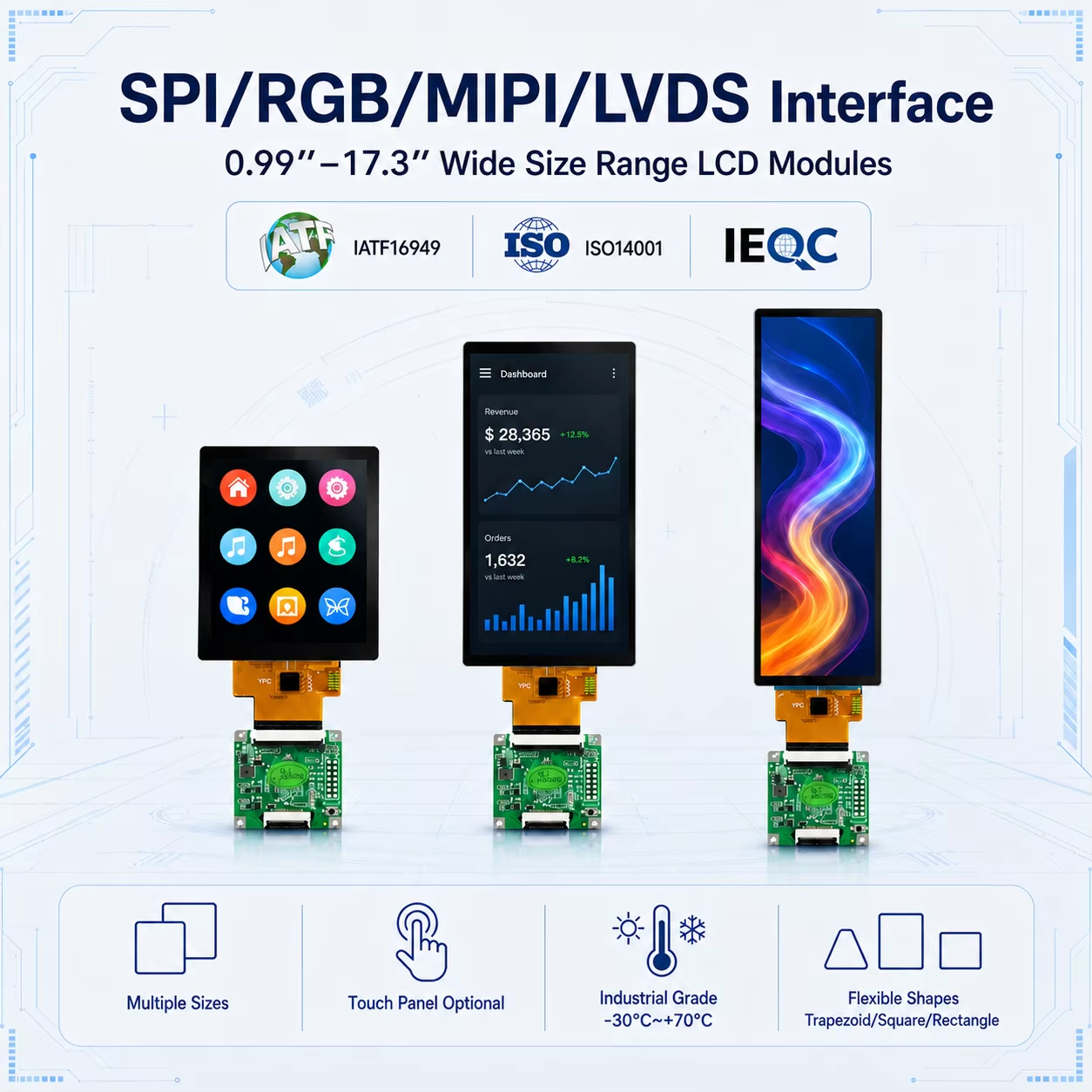

Universal Interface Compatibility: Native integration of a multi-bus MIPI LVDS SPI RGB Interface Screen controller, simplifying mother-board matching across different processing platforms.
Sunlight-Viewable Brightness Options: Luminance configurations scale up to a piercing 2500 cd/m², transforming this display into an exceptional outdoor-readable module.
Extremely Wide Thermal Tolerance: Operates comfortably within wide environmental ranges, with specific models sustaining flawless performance down to -40°C and up to 85°C.
Size |
Part No. |
Resolution |
Active Area （mm） |
Brightness
(cd/㎡）
|
Interface |
Op. Temp. |
0.99'' |
WTLCMB0099S02029-AN |
128*115 |
24.36*21.89 |
300 |
SPI |
-10°C~60°C |
1.66'' |
WTTCMI0166S02085-AN |
400*400 |
39.84*39.84 |
230 |
QSPI |
-20°C~70°C |
2.86'' |
0316IVO-SV1 |
820*320 |
65.65*26.4 |
550 |
MIPI |
-20°C~80°C |
3.0'' |
JL-030HSD10-SV1-VTS |
102*102 |
36.72*65.28 |
400 |
MIPI |
-20°C~70°C |
3.08'' |
WTTCMI0308S40189-DN |
432*928 |
33.05*70.99 |
330 |
RGB |
-20°C~70°C |
3.99'' |
WTLCMB0399S08042-AN |
400*960 |
39.18*94.03 |
300 |
MIPI |
-20°C~70°C |
4.39'' |
WTLCMB0439S10140-AN |
360*640 |
53.56*95.23 |
350 |
RGB |
-20°C~60°C |
5.98'' |
WTLCMI0598G18172-LN |
640*1280 |
67.97*135.9 |
1250 |
4-Lane LVDS |
-30°C~85°C |
6" |
M060AWRD-R0 |
1280*640 |
136.3* 68.16 |
1000 |
LVDS |
-40°C~85°C |
6.80'' |
WTLCMI0680S12138-BN |
480*1280 |
60.22*160.59 |
580 |
MIPI |
-20°C~70°C |
6.86'' |
WTLCMI0686S12177-AN |
480*1280 |
60.22*160.58 |
400/500/1000 |
MIPI/4-Lane MIPI |
-20°C~70°C |
6.92" |
M069AWA1-R0 |
1280*720 |
156.4*80.13 |
750 |
LVDS |
-30°C~85°C |
7.0'' |
M070AWPA-R0 |
800*480 |
154.75* 87.04 |
1000 |
LVDS |
-30°C~85°C |
7.84'' |
HWTL078401G15-24MR |
400*1280 |
59.40*190.08 |
500/800 |
RGB/MIPI/4-Lane MIPI |
-20°C~70°C |
8" |
T080ADPB R0 |
800*480 |
174.0* 104.40 |
850 |
LVDS |
-20°C~70°C |
8.10'' |
WTLCMB0810G16165-KN |
600*1600 |
72.23*192.62 |
500/1000 |
RGB/MIPI |
-20°C~70°C |
8.8" |
E088AWR1-R0 |
1280*480 |
209.2 x 78.48 |
1000 |
LVDS |
-30°C~85°C |
8.90'' |
WTLCMB0890H24089-BN |
1920*720 |
211.68*79.38 |
500 |
LVDS |
-20°C~70°C |
9" |
M090AWA6-R0 |
1280*720 |
198.72*111.7 |
1000 |
LVDS |
-30°C~85°C |
9.16'' |
WTLCMB0916S14001-FN |
462*1920 |
54.44*226.25 |
400/450/500/1000 |
MIPI/4-Lane MIPI |
-20°C~70°C |
9.20'' |
WTL092001G01-32M |
1920*384 |
224.64*44.92 |
2500 |
LVDS |
-30°C~85°C |
9.31'' |
WTTCMB0931S18198-AN |
600*1600 |
82.94*221.18 |
450/500 |
MIPI |
-20°C~70°C |
9.36'' |
WTLCMI0936G14137-KN |
320*1280 |
58.08*232.32 |
500 |
2-Lane MIPI/4-Lane MIPI |
-20°C~70°C |
9.6'' |
WTLCMB0930G14043-GN |
320*1280 |
58.08*232.32 |
450/500/750/800/1000 |
MIPI/4-Lane MIPI |
-20°C~70°C |
9.66'' |
WTLCMI0966F24010-AS |
480*1920 |
58.09*232.6 |
800/1500 |
4-Lane MIPI |
-20°C~70°C |
9.88'' |
WTL098802G03-24M_IVO |
400*1600 |
32.76*240 |
420/800 |
MIPI/4-Lane MIPI |
-20°C~70°C |
10.11'' |
WTLCMB1011S16006-UN |
440*1920 |
57.94*252.86 |
500/1000/1500 |
RGB/MIPI/4-Lane MIPI |
-20°C~70°C |
10.16'' |
WTTCMB1016I18206-BN |
600*1600 |
90.61*241.63 |
400 |
MIPI |
-20°C~70°C |
10.25" |
E102AWF8 R0 |
1920*720 |
243.64*91.36 |
1000 |
LVDS |
-30°C~85°C |
11.12'' |
WTLCMI1166F18001-BA |
380*1920 |
58.14*276.48 |
550/700 |
MIPI/4-Lane MIPI |
-20°C~70°C |
11.8" |
M118AW41-R0 |
1200*1600 |
180.0* 240.0 |
750 |
LVDS |
-30°C~85°C |
12.3” |
M123AWF4 R0 |
1920*720 |
292.03*109.5 |
940 |
LVDS |
-30°C~85°C |
12.6” |
E126AW41-R0 |
1280*1600 |
200.06*250.0 |
1000 |
LVDS |
-30°C~85°C |
12.88" |
M128AWF1-R0 |
1920*720 |
285.12* 160.3 |
900 |
LVDS |
-30°C~85°C |
14" |
M140AW4X-R0 |
1200*1600 |
213.12* 284.1 |
750 |
LVDS |
-40°C~85°C |
15.6'' |
WTLCMN1560I54078-AN |
1920*1080 |
344.16*193.5 |
250 |
eDP |
-10°C~60°C |
