The engineering landscape for next-generation human-machine interfaces demands more than just conventional grid layouts. Enter the WEITAI 10.16 Inch TFT IPS LCD Module Touch Panel—a highly specialized, stretched panoramic display component purposefully integrated for modern B2B hardware ecosystems. As mission-critical dashboards and sophisticated terminal arrays require richer data density within narrower spatial layouts, choosing a standard-setting display strip becomes vital. This ruggedized 10.16 inch IPS LCD Module with touch panel delivers an elegant 600x1600 Resolution layout, allowing industrial product designers to maximize restrictive mechanical footprints effortlessly. By moving away from restrictive standard aspect ratios, engineering teams can now craft highly interactive vertical setups or horizontal control readouts that significantly enhance ergonomics in competitive international markets.
Uncompromising legibility in unpredictable field environments remains a primary procurement directive for electronics sourcing managers worldwide. To mitigate glare and visual fading, the WEITAI 10.16 Inch TFT IPS LCD Module Touch Panel outputs an optimized 400cd/m Brightness rating that strikes an ideal balance between vivid illumination and thermal efficiency.
Symmetrical 178° Wide Perspective: Utilizing true IPS LCD DISPLAY open-cell manufacturing, this panel guarantees a full 178-degree viewing cone, eliminating the frustrating grayscale inversion and localized color shifts that plague traditional twisted-nematic (TN) bars.

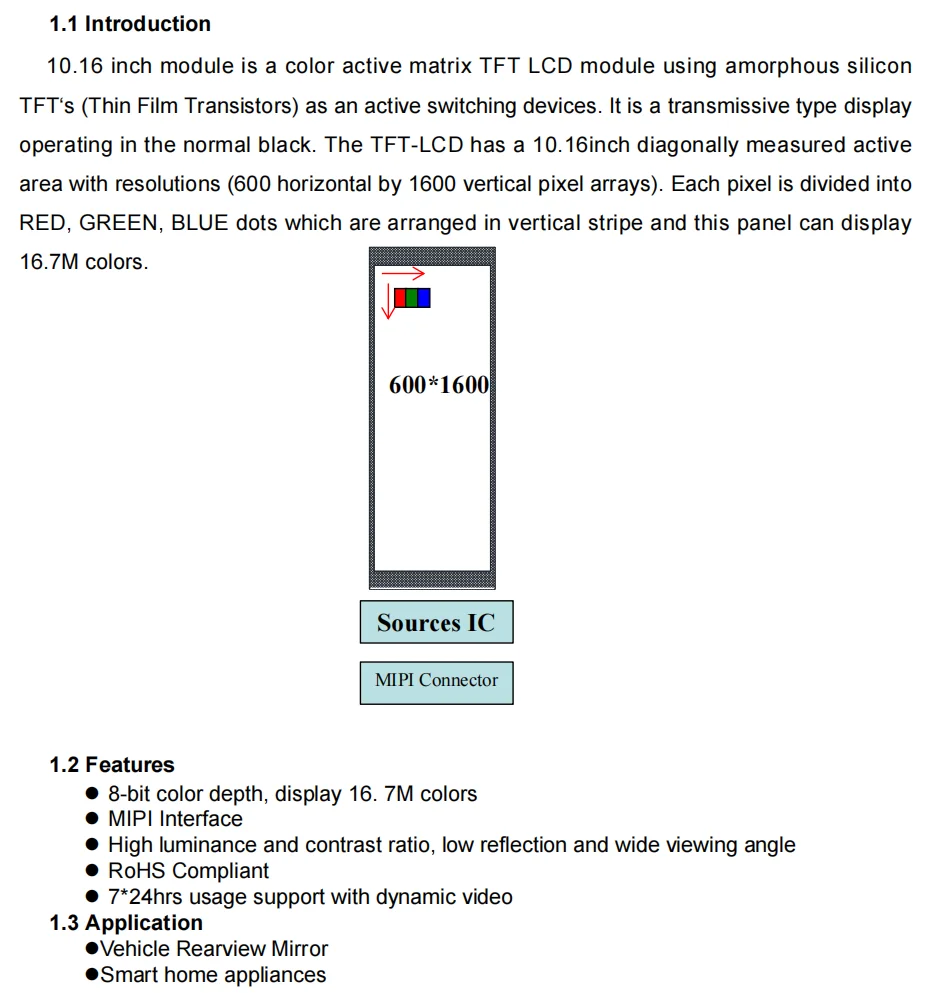

Crisp Vector Graphic Rendering: The sharp pixel alignment of the 600x1600 Resolution hardware maps complicated telemetry graphs, tiny text fonts, and responsive capacitive touch inputs with flawless precision, making it an excellent choice for complex multi-touch interactive control docks.
Produce Name |
10.16 inch IPS LCD Module with touch panel |
Resolution |
600*1600 |
Brightness |
400 cd/m2 |
Weight |
368g |

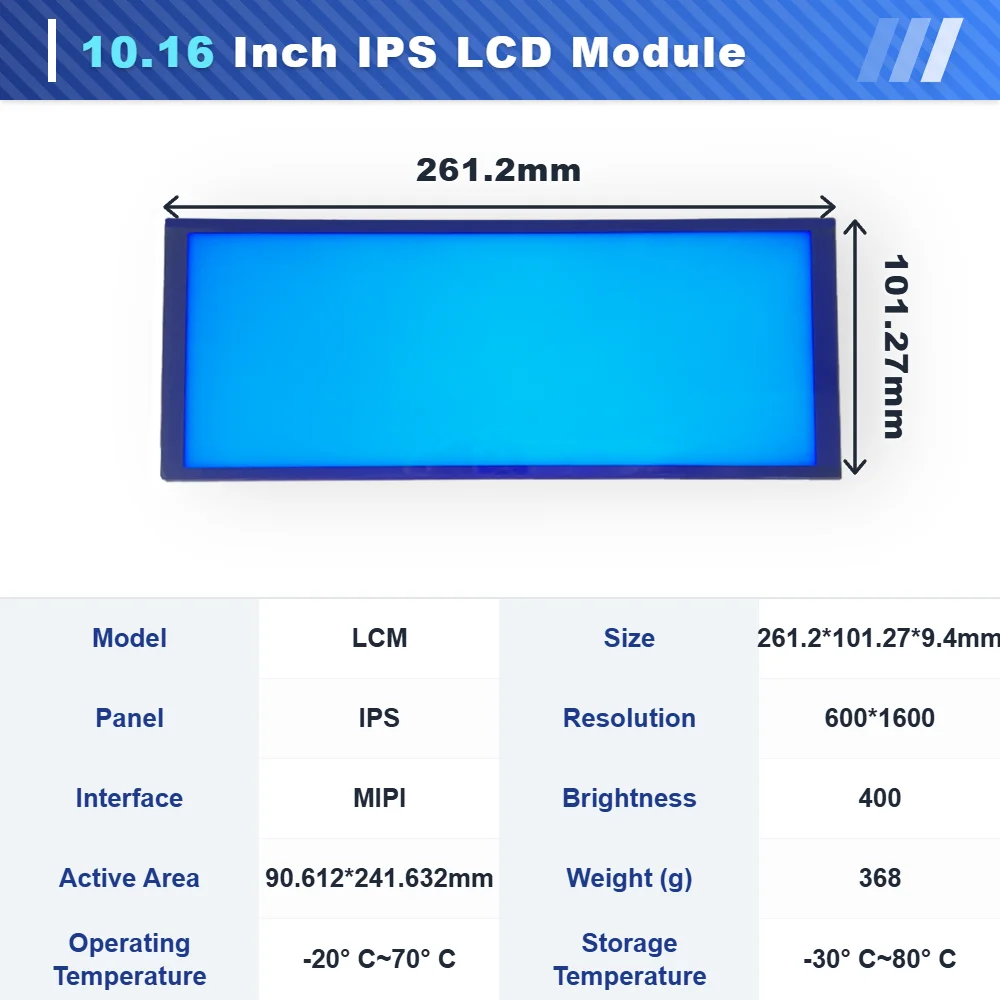

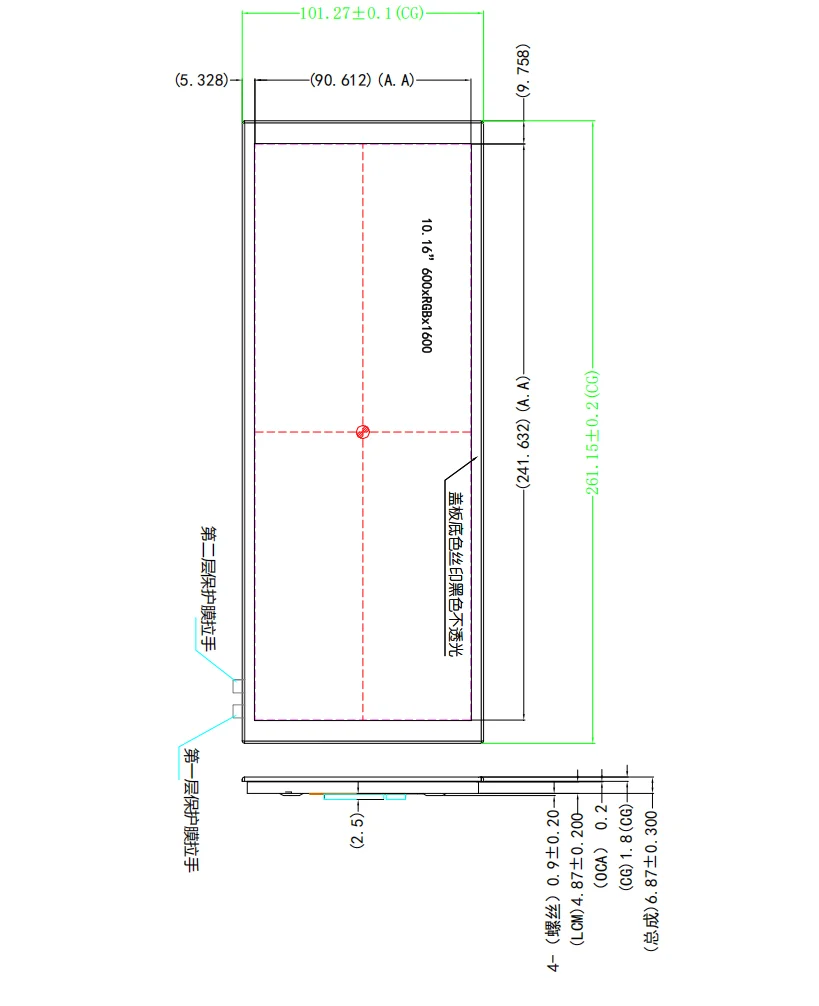

Size |
261.2*101.27*9.4 mm |
Active Area |
90.612(H)*241.632(V) mm |

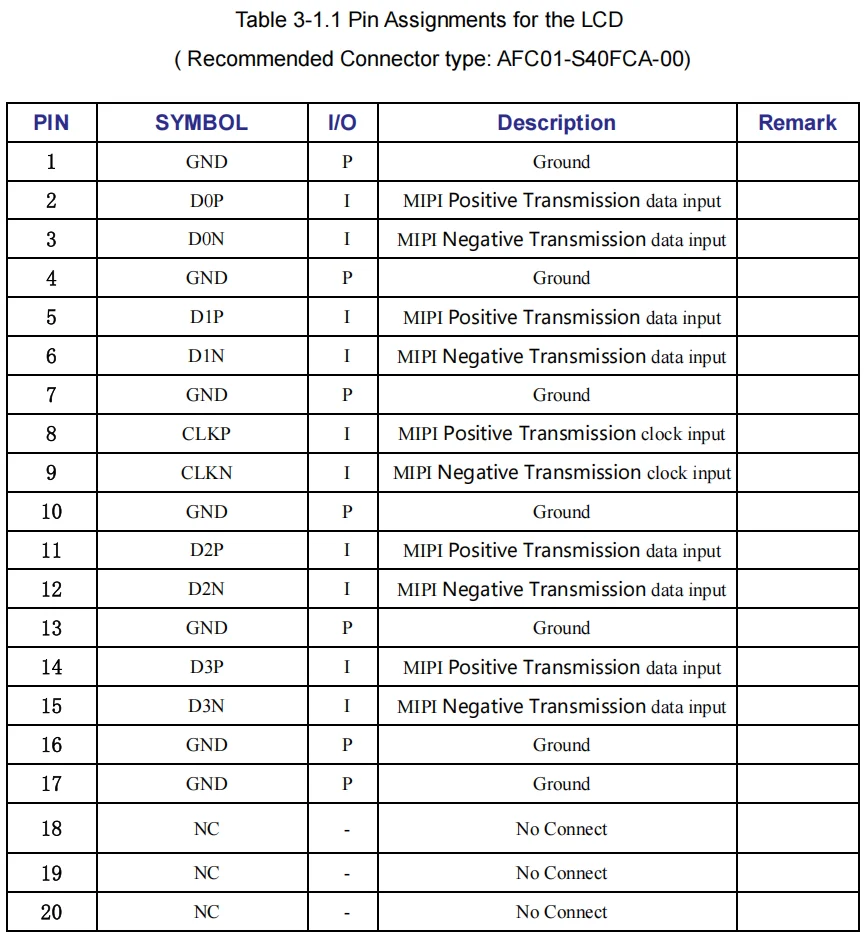

Interface |
MIPI |
LCD Type |
IPS LCD DISPLAY |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Application |
In-vehicle display/Smart Home |
From an embedded systems design standpoint, electronic component resilience during continuous, unventilated field operations dictates the entire warranty lifespan of an industrial end-product. This robust TFT IPS LCD Module Touch Panel is physically validated to operate flawlessly across a wide -20C~70C Operating thermal threshold. It prevents the liquid crystal structural collapse (isotropic blackouts) often caused by stagnant solar heat or freezing warehouse temperatures.
Furthermore, WEITAI engineers chose an optimized, low-power MIPI Interface instead of legacy parallel routing. This high-speed MIPI Interface configuration minimizes electromagnetic noise emissions (EMI), accelerates touch frame rates, and guarantees instantaneous real-time sensor updates for mission-critical software automation stacks.
Real-world operational longevity under mechanical stress speaks louder than laboratory datasheets. In a notable fleet integration project, a major heavy-duty electric logistics vehicle OEM utilized this exact WEITAI 10.16 Inch TFT IPS LCD Module Touch Panel to solve panel cracking and touch-controller dropouts caused by high-frequency chassis vibration. Thanks to its reinforced substrate framing and industrial -20C~70C Operating capacity, the ruggedized 10.16 inch IPS LCD Module with touch panel passed demanding automotive shock profiles while delivering continuous telemetry through the stable MIPI Interface.
Concurrently, a premier commercial building control brand selected this sleek 600x1600 Resolution bar to serve as a premium wall-mounted smart home command hub, yielding a 45% drop in field service calls due to its flawless touch sensitivity and reliable panel life.
Mitigating supply-chain obsolescence risks is a critical priority for long-term B2B product life cycles. Every TFT IPS LCD Module Touch Panel sourced from our smart facilities undergoes total traceability verification, powered by integrated automated testing lines hooked into corporate ERP and MES data nodes.
Holding active tier-1 automotive IATF16949, alongside ISO9001 and ISO14001 credentials, WEITAI ensures that production unit number one-million behaves precisely like the initial exploratory engineering validation sample.
By guaranteeing a product lifecycle availability extending beyond 5 years, global electronics buyers can lock this high-performance display strip into long-term infrastructure designs confidently, knowing that WEITAI leverages an annual factory scaling capacity exceeding 30,000,000 pieces to handle sudden commercial volume spikes seamlessly.
