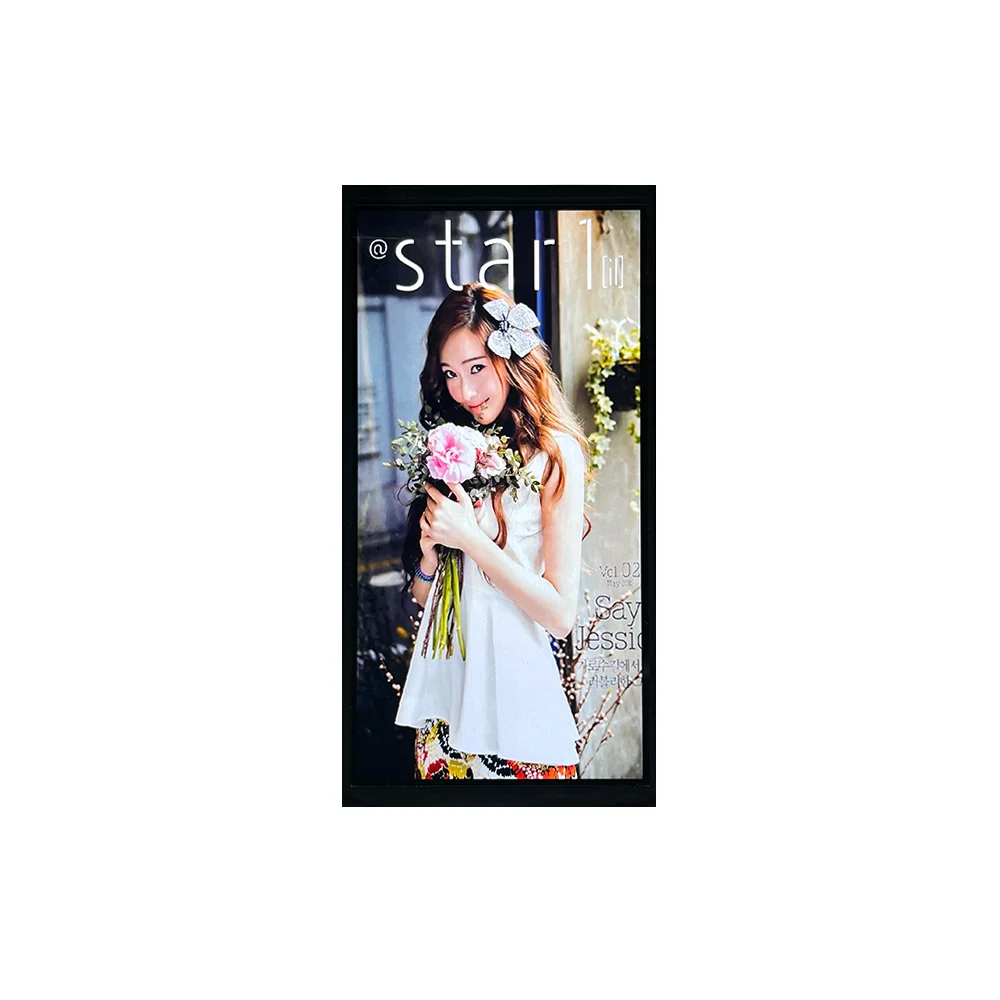

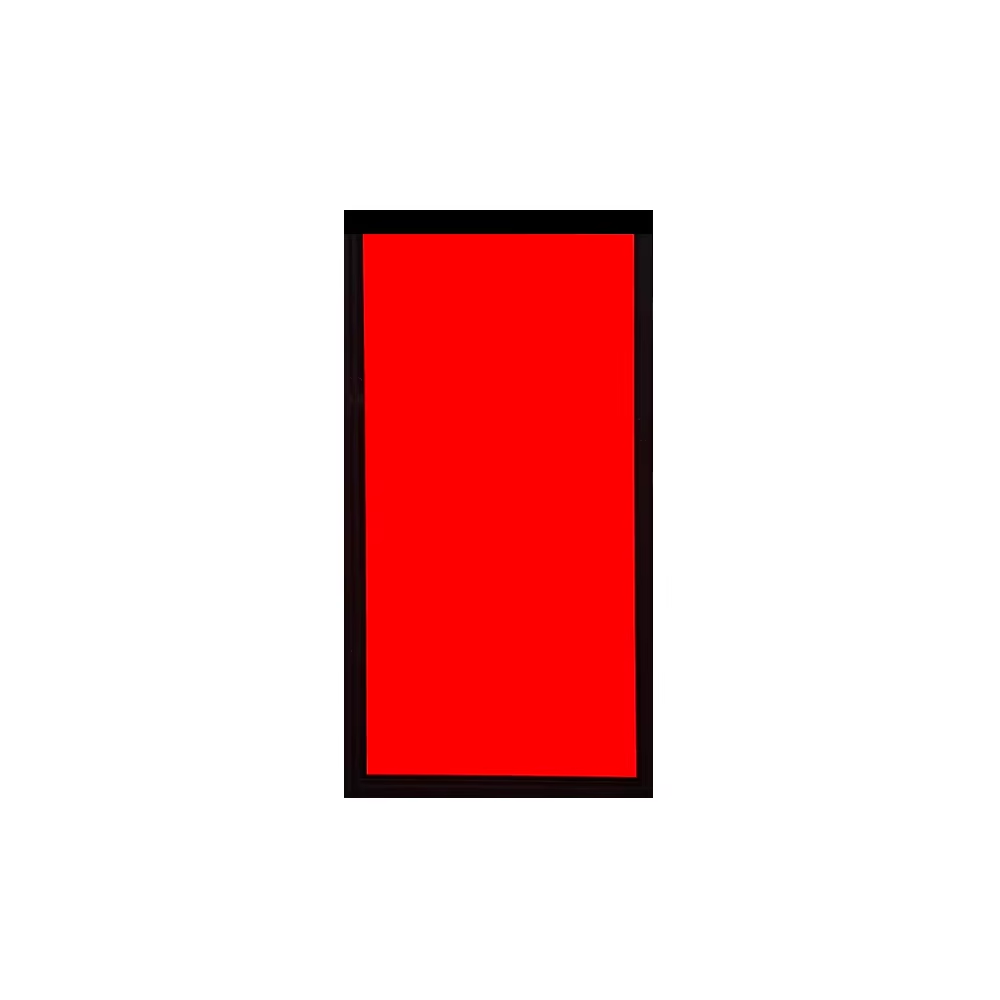

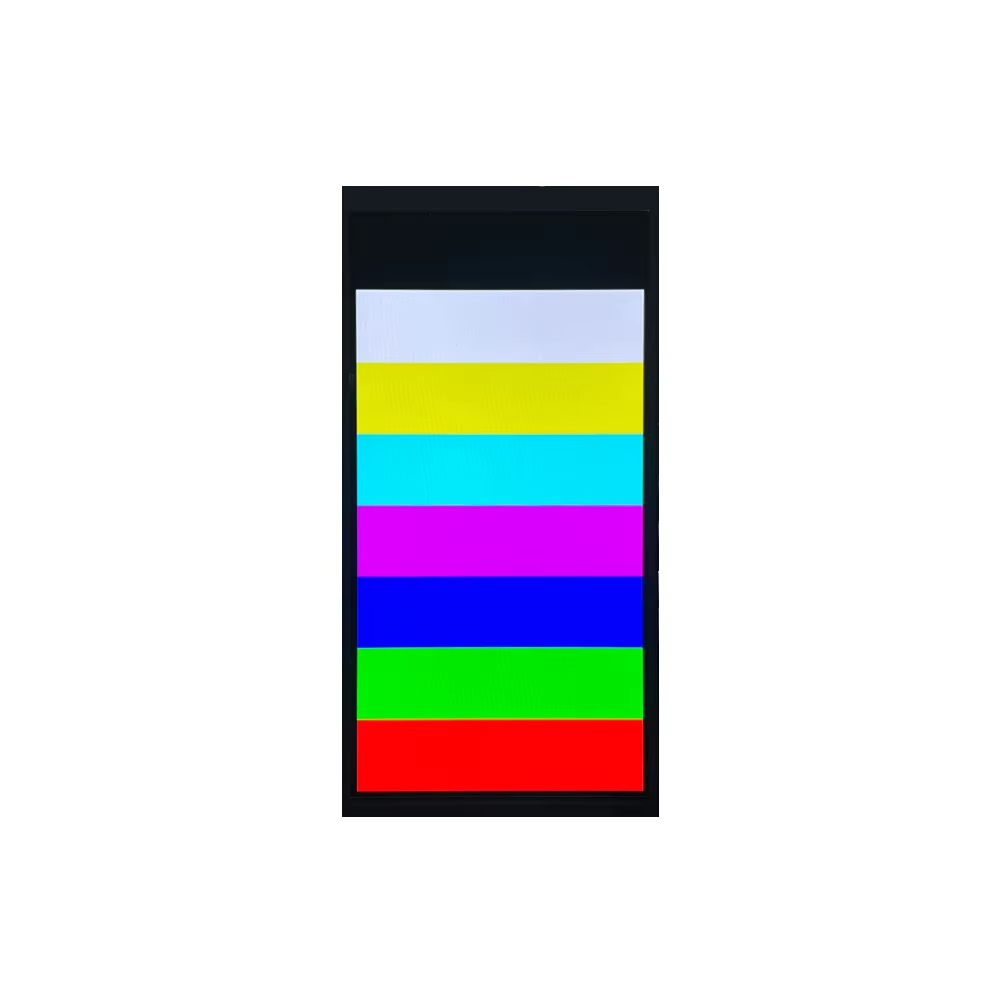

Navigating the complexities of modern automotive cabins requires a high-brightness in-vehicle display that delivers both pristine visual clarity and uncompromising reliability. This premium 5.98 inch TFT IPS LCD module is engineered precisely to bridge the gap between heavy-duty durability and consumer-grade visual aesthetics.

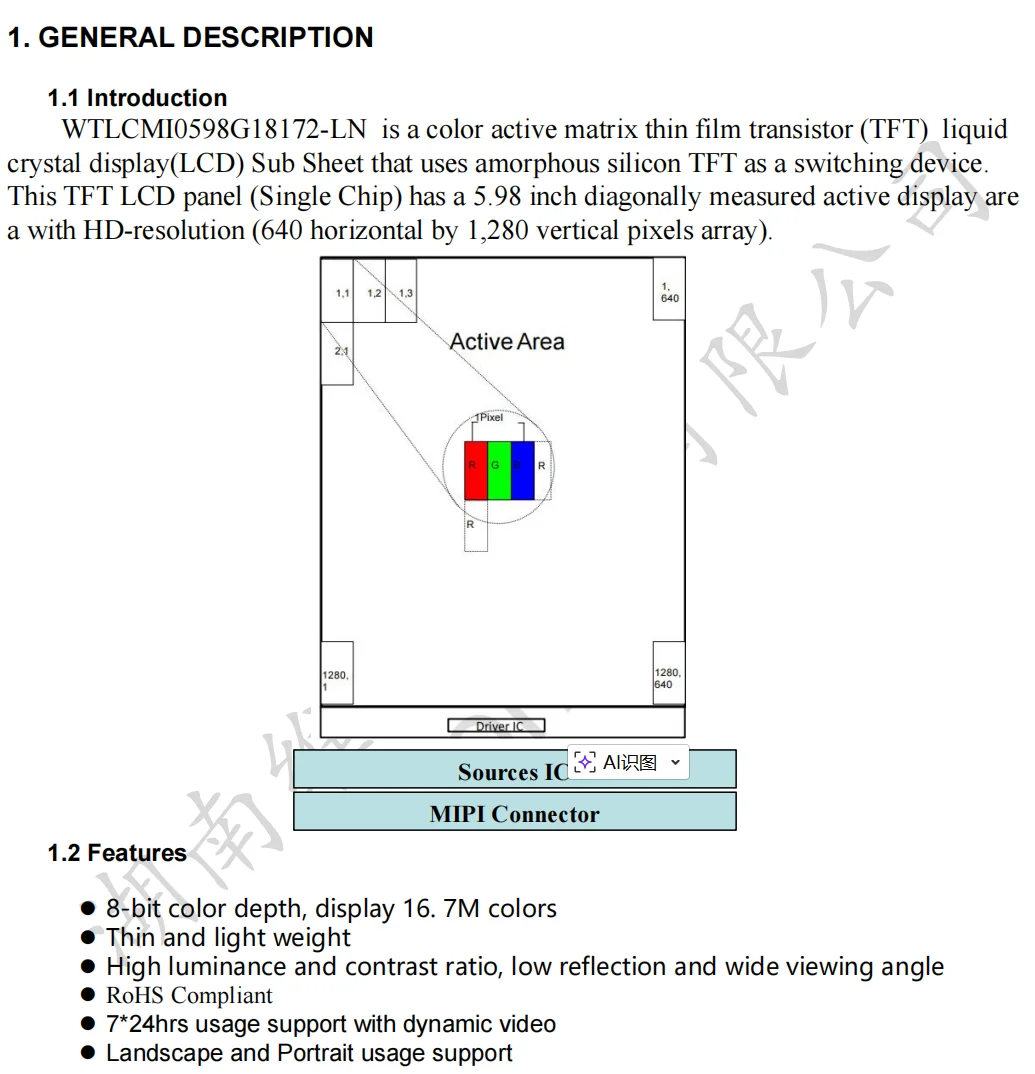

Featuring a portrait-oriented 640x1280 resolution, this custom LCD panel provides crisp graphics and sharp text rendering, making it an ideal choice for:
Automotive center consoles and infotainment systems
Digital instrument clusters
Smart rearview electronic mirrors
Hardware procurement managers and automotive engineers frequently struggle with displays that wash out under direct sunlight. However, with our advanced liquid crystal technology, your user interface remains perfectly visible regardless of ambient lighting conditions.
Sunlight Readable Engineering with Advanced LED Backlighting
When it comes to outdoor readable sunlight display systems, brightness is only half the story. This high-luminance automotive monitor boasts an impressive 1250 cd/m² brightness rating, driven by an optimized LED backlight matrix that efficiently dissipates heat while maximizing photon output.
Our engineering team has spent years refining the optical stack of this 5.98 inch TFT IPS LCD module, integrating specialized anti-glare properties that eliminate distracting reflections inside the cockpit. For fleet management devices and agricultural machinery controllers, this exceptional illumination ensures that critical telematics data and navigation maps are instantly readable at a quick glance, drastically improving driver safety and lowering visual fatigue during extended operation hours.
Standard TN panels fail miserably in automotive applications due to color shifting and restricted viewing arcs, which is why choosing a premium IPS LCD display is non-negotiable for modern vehicle interiors.
This specific 5.98 inch TFT IPS LCD module guarantees true-to-life color reproduction and ultra-wide 178-degree viewing angles horizontally and vertically. Whether mounted as a central infotainment screen accessible to both driver and passenger, or utilized as a smart home control hub on a living room wall, the 640x1280 custom LCD panel maintains consistent contrast and zero color distortion. This ensures that every graphic user interface (GUI), icon, and warning alert looks exactly as the UX designer intended, elevating the premium feel of your final product.
Signal integrity inside an automobile is constantly threatened by electromagnetic interference (EMI) from the powertrain and wireless modules, creating a need for a highly secure communication protocol. Our industrial LVDS display screen utilizes a robust 4-Lane LVDS interface, which inherently rejects common-mode noise through low-voltage differential signaling.

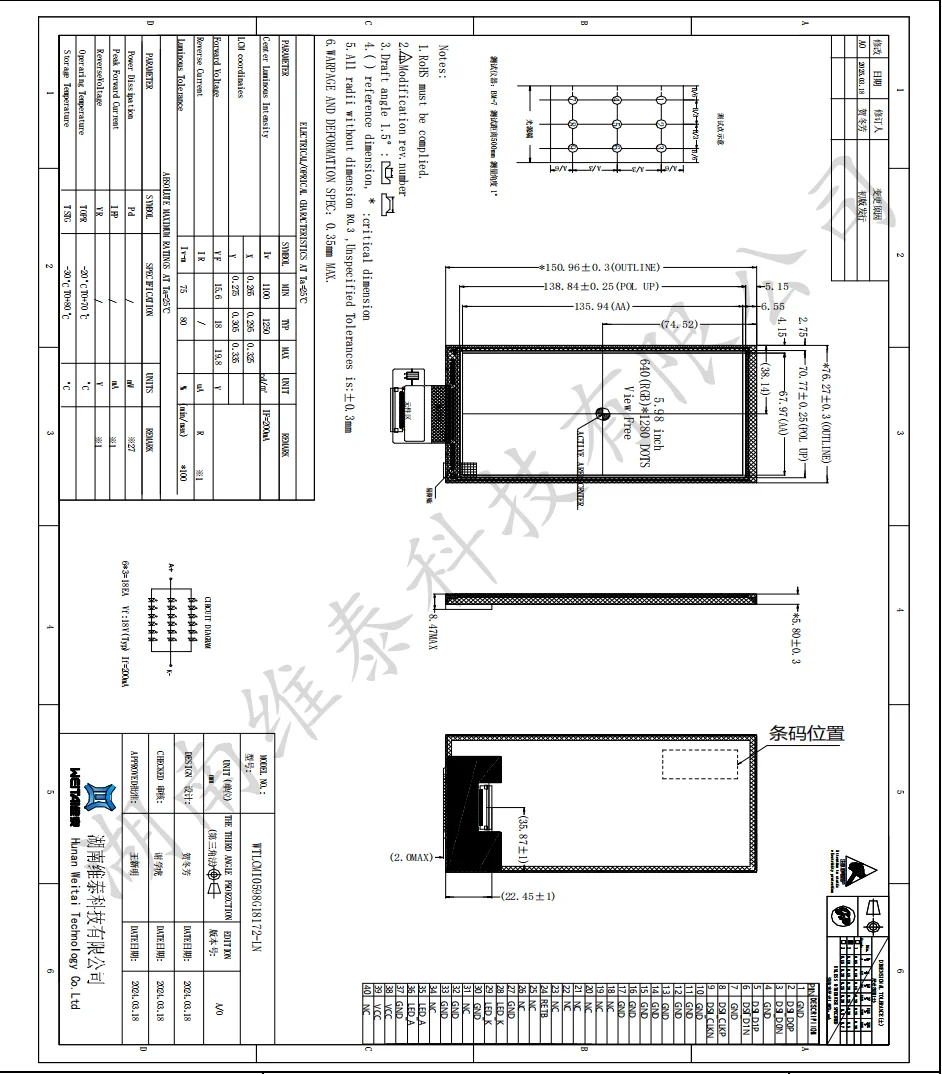

This professional-grade 4-Lane LVDS interface allows hardware designers to route longer display cables from the central processing unit without worrying about pixel jitter, data corruption, or screen flickering. Furthermore, the compact form factor of 150.96 x 76.27 x 5.8 mm ensures that this slim 5.98 inch TFT IPS LCD module can be effortlessly integrated into space-constrained dashboards without altering the structural integrity of the surrounding interior trim.

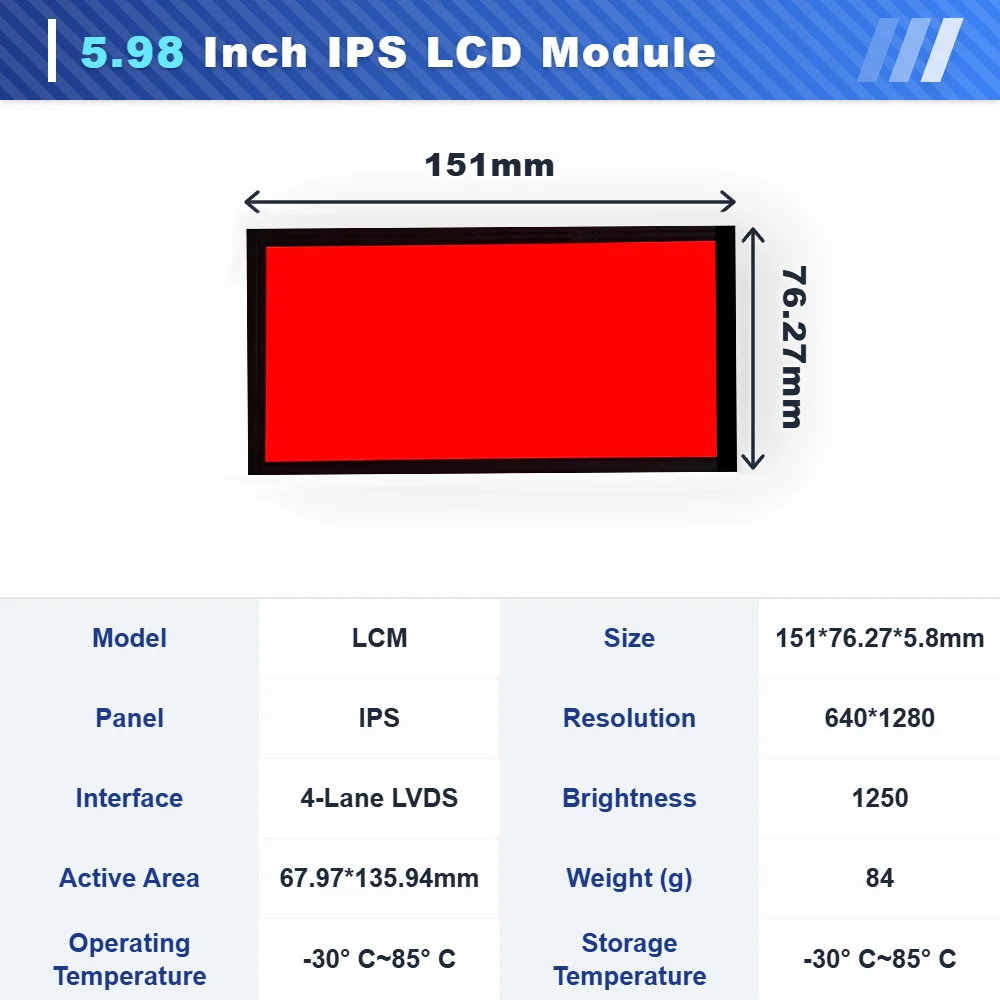

Produce Name |
5.98 inch IPS LCD Module |
Resolution |
640*1280 |
Brightness |
1250 cd/m2 |
Weight |
84 g |
Size |
150.96*76.27*5.8 mm |
Active Area |
67.97(H)*135.94(V) mm |
Interface |
4-Lane LVDS |
LCD Type |
IPS LCD DISPLAY |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Application |
In-vehicle display/Smart Home |
Automotive hardware must endure punishing environments that would quickly destroy standard consumer electronics, from freezing winter nights to scorching summer days inside a locked vehicle. This ruggedized high-brightness in-vehicle display supports an extensive working temperature range from -20°C up to 70°C, alongside a storage capacity spanning -30°C to 80°C.
Real-World Case Study: In our recent product validation lifecycle, we partnered with a tier-1 commercial vehicle telematics provider who deployed this 5.98 inch TFT IPS LCD module across a fleet of cross-country shipping trucks. Even after thousands of hours encountering continuous chassis vibrations and extreme thermal cycles across different climate zones, the custom LCD panel maintained steady luminance levels and zero pixel failures, proving its operational excellence in genuine field conditions.
Selecting the right high-luminance automotive monitor involves choosing a production partner who understands the long development cycles of the industrial and automotive sectors. WEITAI addresses this critical industry bottleneck by offering a guaranteed product lifecycle of over 5 years, shielding your engineering team from the costly nightmares of frequent component obsolescence.

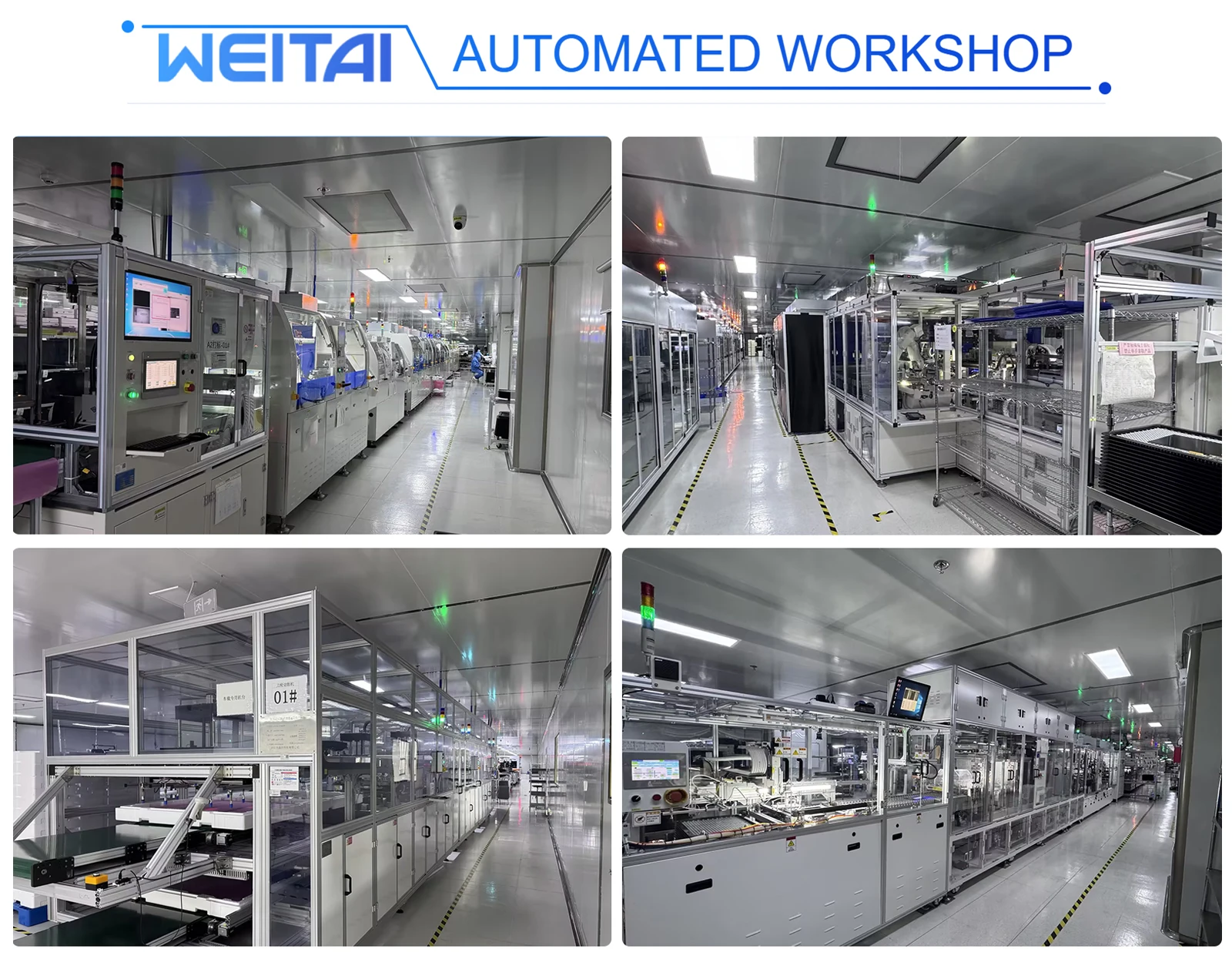

From initial product conception and Engineering Validation Testing (EVT), through Design Validation Testing (DVT) and Production Validation Testing (PVT), up to full-scale mass manufacturing, WEITAI provides comprehensive end-to-end technical support. Backed by fully automated assembly lines and deeply integrated ERP and MES tracking systems, WEITAI ensures that every single batch of industrial LVDS display screens meets strict global quality metrics, offering global OEMs a highly agile, scalable, and resilient display supply chain.
