Revolutionary Stretched Bar Display Design for Next-Gen Visuals
In the competitive landscape of display engineering, the 7.84 Inch TFT IPS LCD LCM Module with MIPI Interface stands out as a specialized bar-type solution designed to break the constraints of traditional aspect ratios. This unique 7.84 Inch TFT IPS LCD LCM Module features a distinct 400x1280 Resolution, making it an ideal choice for narrow-space integration where vertical or horizontal information density is paramount. Whether it is being used as a high-definition In-vehicle Display for real-time rearview streaming or a sleek control strip for high-end Smart Home appliances, the visual impact is undeniable. With a slim Size of 205.8 x 67.8 x 7.25 mm, this 7.84 Inch TFT IPS LCD LCM Module allows designers to maximize the Active Area of 59.40 x 190.08 mm without compromising the aesthetic flow of the cockpit or interior housing. By adopting this 7.84 Inch TFT IPS LCD LCM Module with 400x1280 Resolution, engineers can effectively deliver more data in a more compact, modern form factor.

Ultra-High Brightness and IPS Technology for Crystal Clear Visibility
One of the most critical performance metrics for an In-vehicle Display is legibility under direct sunlight. The 7.84 Inch TFT IPS LCD LCM Module delivers an impressive 800 cd/m2 Brightness, ensuring that critical navigation data or safety alerts remain visible even when the dashboard is exposed to harsh solar glare. Complementing this high-intensity backlight is the In-Plane Switching (IPS) matrix technology. This 7.84 Inch TFT IPS LCD LCM Module offers expansive 85/85/85/85 viewing angles, meaning color accuracy and contrast levels stay consistent regardless of whether the driver or the passenger is looking at the screen. For Smart Home applications, this means a premium, glossy look that doesn't fade or shift when viewed from different heights. Integrating the 7.84 Inch TFT IPS LCD LCM Module with 800 cd/m2 Brightness into your product line guarantees a premium user experience that meets the visual demands of top-tier automotive and residential projects.

Advanced MIPI Interface for Seamless High-Speed Connectivity
The choice of a MIPI Interface in the 7.84 Inch TFT IPS LCD LCM Module is not accidental; it is a technical requirement for modern high-speed data throughput. As In-vehicle Display systems become more complex, the need to reduce electromagnetic interference (EMI) while maintaining low power consumption becomes a top priority. This 7.84 Inch TFT IPS LCD LCM Module with MIPI Interface provides the high-bandwidth link necessary to drive the 400x1280 Resolution at smooth frame rates, which is essential for fluid animations and real-time video feeds in streaming mirrors. During our internal development phases, we observed that using the MIPI Interface significantly simplifies the internal wiring of Smart Home controllers, reducing PCB footprint and improving thermal management. This makes the 7.84 Inch TFT IPS LCD LCM Module a strategic choice for engineers who prioritize system stability and low-latency response.

Products Description

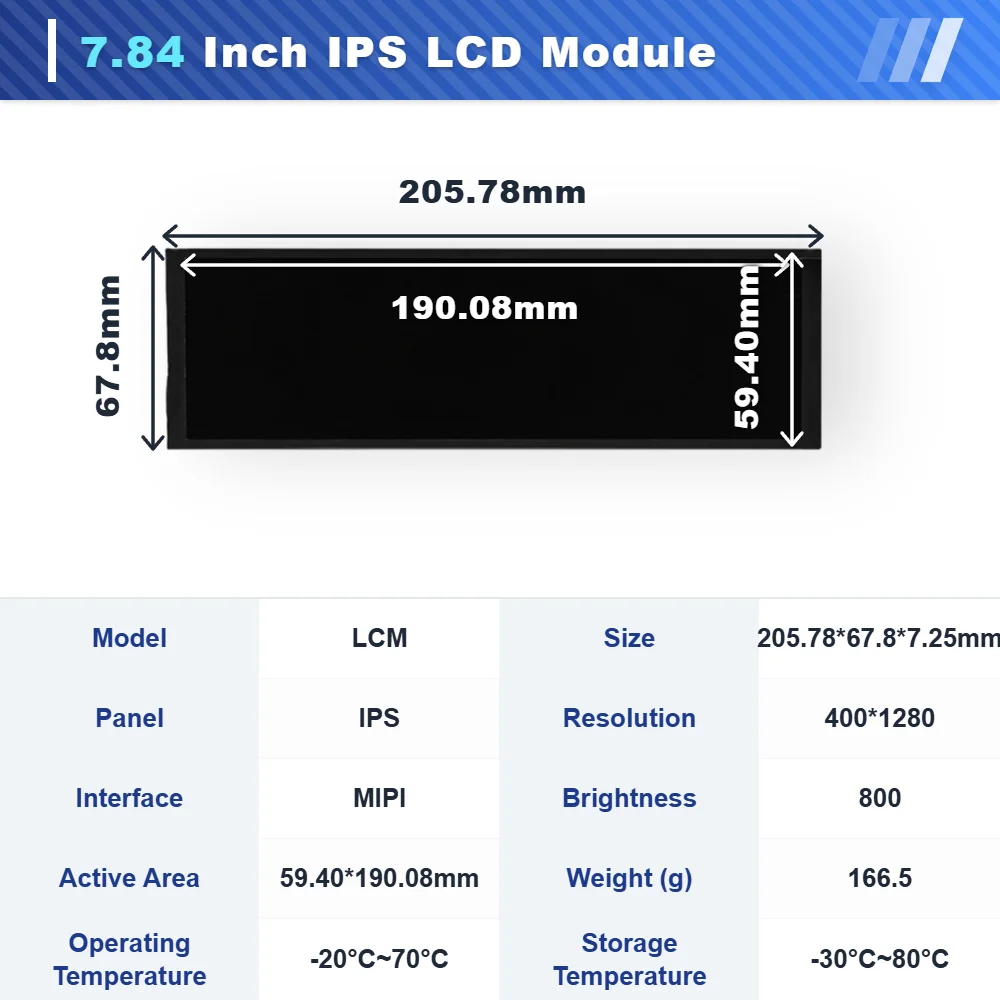

Specification

Produce Name	7.84 inch IPS LCD Module
Resolution	400*1280
Brightness	800 cd/m2
Weight	92.6g
Size	205.8(H)*67.8(V)*7.25(B) mm
Active Area	59.40(H)*190.08 (V) mm

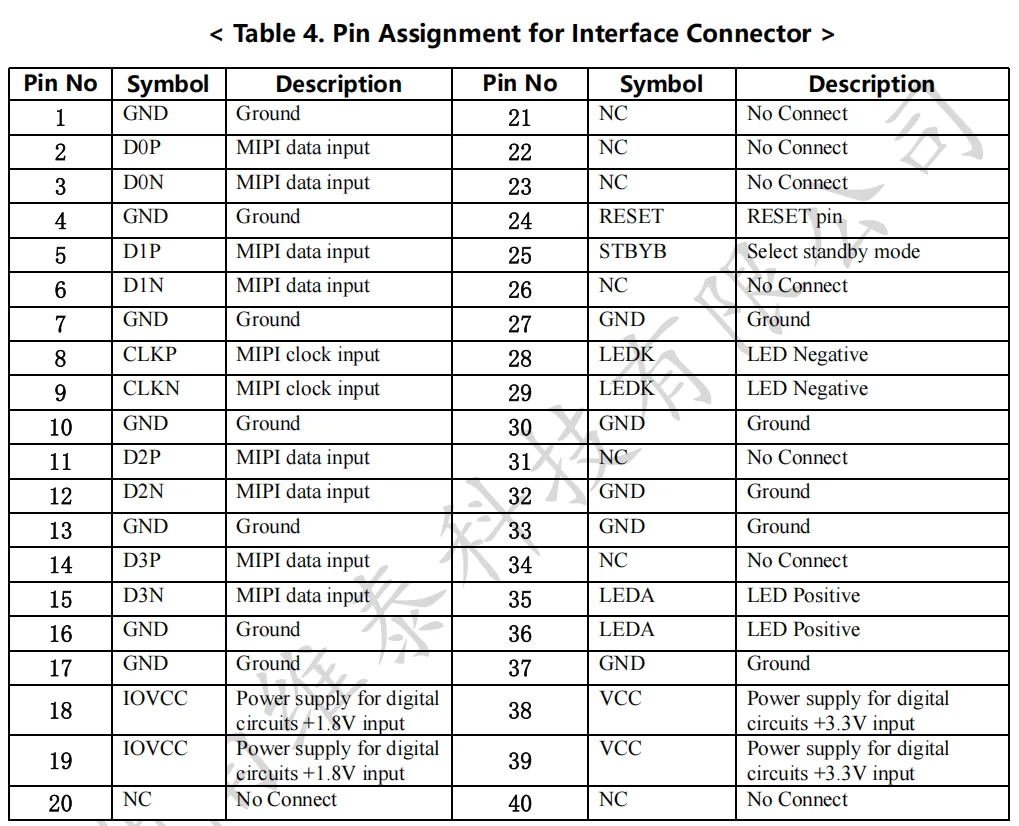

Interface	MIPI
LCD Type	IPS LCD DISPLAY
Working temperature	-20°C~70°C
Storage Temperature	-30°C~80°C
Application	In-vehicle display/Smart Home

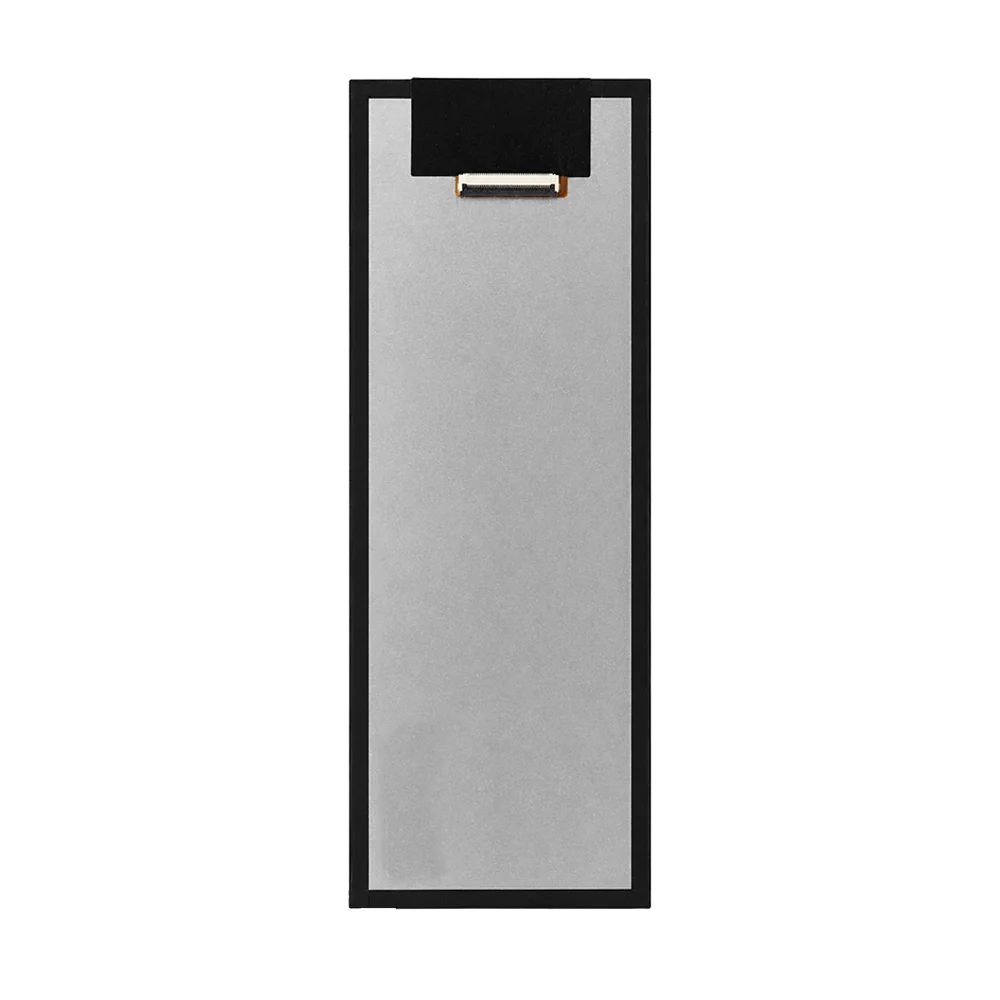

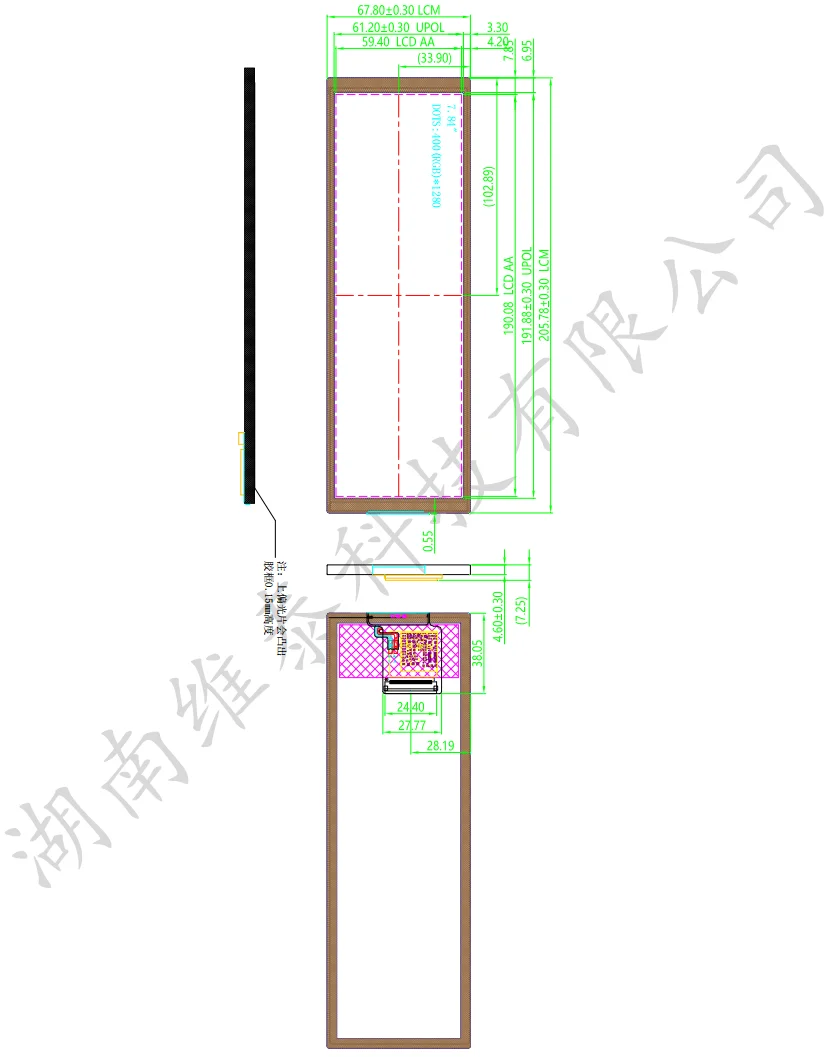

Details Images

Rugged Reliability Built for Challenging Environmental Extremes

Automotive environments are notorious for their extreme temperature swings, and the 7.84 Inch TFT IPS LCD LCM Module is engineered to withstand them all. With a robust Working temperature of -20°C~70°C and a storage capacity reaching up to 80°C, this 7.84 Inch TFT IPS LCD LCM Module with 400x1280 Resolution ensures consistent operation from freezing winter mornings to scorching summer afternoons in an enclosed vehicle. The mechanical integrity is further reinforced by its Weight of 92.6g, providing a sturdy yet lightweight profile for mirror-mounted or wall-mounted installations. At WEITAI, we understand that an In-vehicle Display must remain flicker-free and responsive despite continuous road vibrations. This is why each 7.84 Inch TFT IPS LCD LCM Module undergoes rigorous thermal cycling and vibration testing, ensuring that your Smart Home or automotive product remains a reliable centerpiece.

Unlocking Commercial Value in Modern Cockpits and Smart Interiors
From a commercial perspective, the 7.84 Inch TFT IPS LCD LCM Module with 400x1280 Resolution offers immense market potential for Tier-1 suppliers and device manufacturers. In a recent case study, a client integrating this 7.84 Inch TFT IPS LCD LCM Module into a smart refrigerator handle saw a 25% increase in consumer engagement due to the unique "bar display" UI. For In-vehicle Display applications, this module is the perfect fit for "Streaming Rearview Mirrors," providing a wider field of vision that traditional glass mirrors cannot match. By utilizing the 7.84 Inch TFT IPS LCD LCM Module with MIPI Interface, B2B buyers can differentiate their product offerings with high-end optical specs that justify a premium price point. Furthermore, the 7.84 Inch TFT IPS LCD LCM Module supports both portrait and landscape orientations, offering a level of versatility that is rare in the small-to-medium display market.

Securing Your Global Supply Chain with Vertical Manufacturing Power

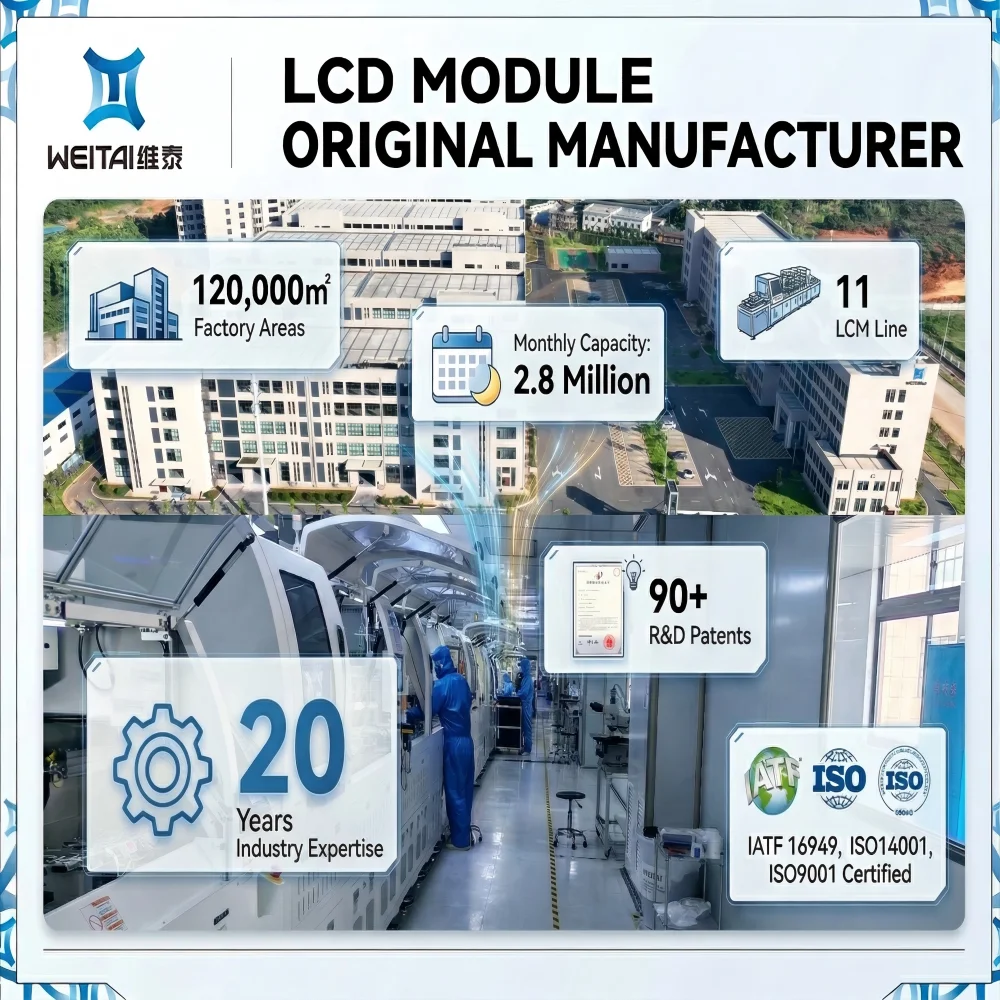

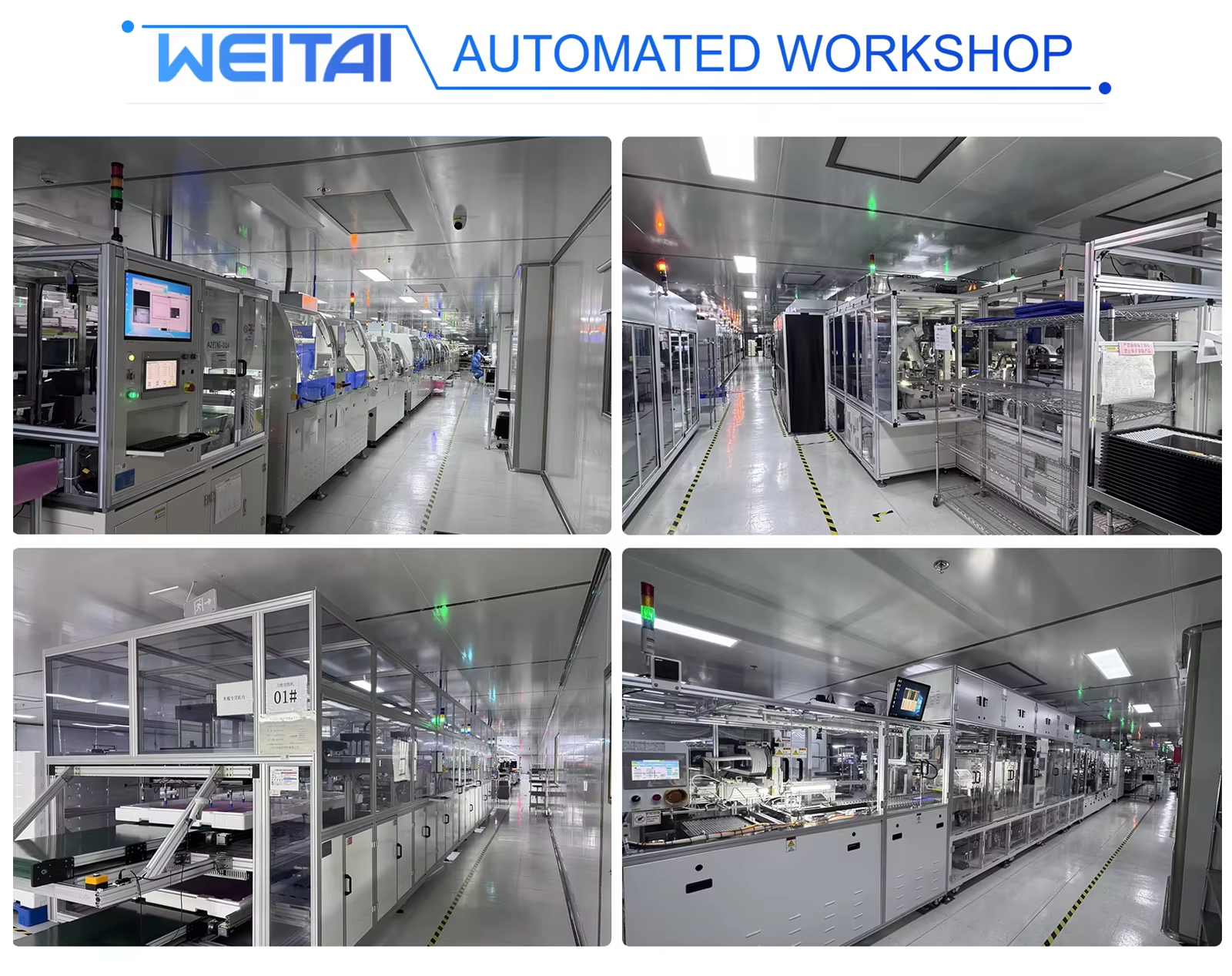

Partnering with WEITAI means tapping into two decades of profound industry expertise. As a national "Specialized & Sophisticated" enterprise, WEITAI operates a vertical supply chain that covers everything from glass cutting and COG/FOG bonding to backlight manufacturing and full lamination. Every 7.84 Inch TFT IPS LCD LCM Module with MIPI Interface is produced in a fully automated facility managed by integrated ERP and MES systems, ensuring 100% traceability and quality control. Our commitment to excellence is backed by ISO14001, IATF16949, and ISO9001 certifications, which are essential for entering the global automotive market. With an annual capacity of 30,000,000 pieces, WEITAI possesses the scalability to support your project from the initial EVT/DVT prototyping stages all the way to mass production. Choosing our 7.84 Inch TFT IPS LCD LCM Module means securing a partner dedicated to supply chain security.

FAQ

Q1: Do you accept sample order or small quantity order?
A1: Yes, you can place sample orders for testing first, we will fully support you every stage of new product introduction,from
EVT -> DVT -> PVT, until mass production.

Q2: How do you guarantee the quality?
A2: We are qualified for a series of quality system certification (ISO14001 etc.) and brand customer factory audit every year.
We have strict supplier quality control system from NPI to each lot mass production, and routine supplier's factory audit will be done every year.

Q3: Could you offer OEM&ODM service?
A3: Yes, we have sufficient capacity（30,000,000pcs/years） to provide OEM&ODM service.

Q4: How long is your product life cycle?
A4: The average life cycle of most of our products is more than 5 years.
