High-Definition Panoramic Clarity for Automotive and IoT Applications
In the fast-paced development of modern cockpit electronics and intelligent domestic systems, the 7.84 Inch TFT LCD IPS Display Module has established itself as a premier solution for high-density information display. This advanced 7.84 Inch TFT LCD IPS Display Module with 400x1280 Resolution features an ultra-slim, elongated form factor that is meticulously engineered to provide maximum visual impact in restricted spaces. Unlike generic display panels, this TFT LCD IPS Display Module creates a seamless, panoramic visual experience that is ideal for digital instrument clusters, central consoles, or sophisticated smart home management hubs. With its precise Size of 205.8 x 67.8 x 7.25 mm, the module allows designers to utilize screen real estate efficiently, fitting perfectly into the sleek silhouettes of modern dashboards or vertical smart wall-panels. By integrating this 7.84 Inch TFT LCD IPS Display Module, engineers can achieve a high-tech aesthetic while ensuring that every detail of the 400x1280 Resolution is rendered with perfect clarity for the end-user.

Unrivaled Optical Performance with High-Luminance IPS Technology
For any professional Automotive Display or high-end IoT device, visibility is the baseline for functional success. The 7.84 Inch TFT LCD IPS Display Module incorporates premium In-Plane Switching (IPS) technology to ensure that color reproduction remains consistent and vivid, even when viewed from extreme off-center angles. This IPS LCD DISPLAY technology guarantees that the visual experience is free from the color-shift issues often found in standard display panels. A standout feature of this specific model is its 800 cd/m2 Brightness, which provides exceptional sunlight readability, even in conditions with intense ambient light. Our 7.84 Inch TFT LCD IPS Display Module with 800 Cd/m Brightness ensures that critical navigation information and status updates remain legible, regardless of whether the vehicle is operating in midday sun or the user is interacting with a Smart Home interface in a bright, sun-drenched space. The LED Backlight system has been optimized to maintain this high-intensity performance without compromising power efficiency or thermal safety.

Low-Latency Data Flow via 4-Lane MIPI Interface
Technical performance is where the 7.84 Inch TFT LCD IPS Display Module sets a new standard for industry professionals. The integration of a 4-Lane MIPI Interface allows for high-speed data transmission that is essential for modern, high-refresh-rate UI requirements. In the context of an Automotive Display, data latency is simply not an option. The 4-Lane MIPI Interface on this 7.84 Inch TFT LCD IPS Display Module ensures that high-definition video frames and complex graphical data reach the screen instantaneously, providing a flicker-free and fluid interaction that satisfies the most demanding automotive standards. By utilizing the four-lane architecture, this TFT LCD IPS Display Module handles complex graphical tasks while minimizing electromagnetic interference (EMI), creating a robust hardware environment that reduces overall system noise and improves signal stability.

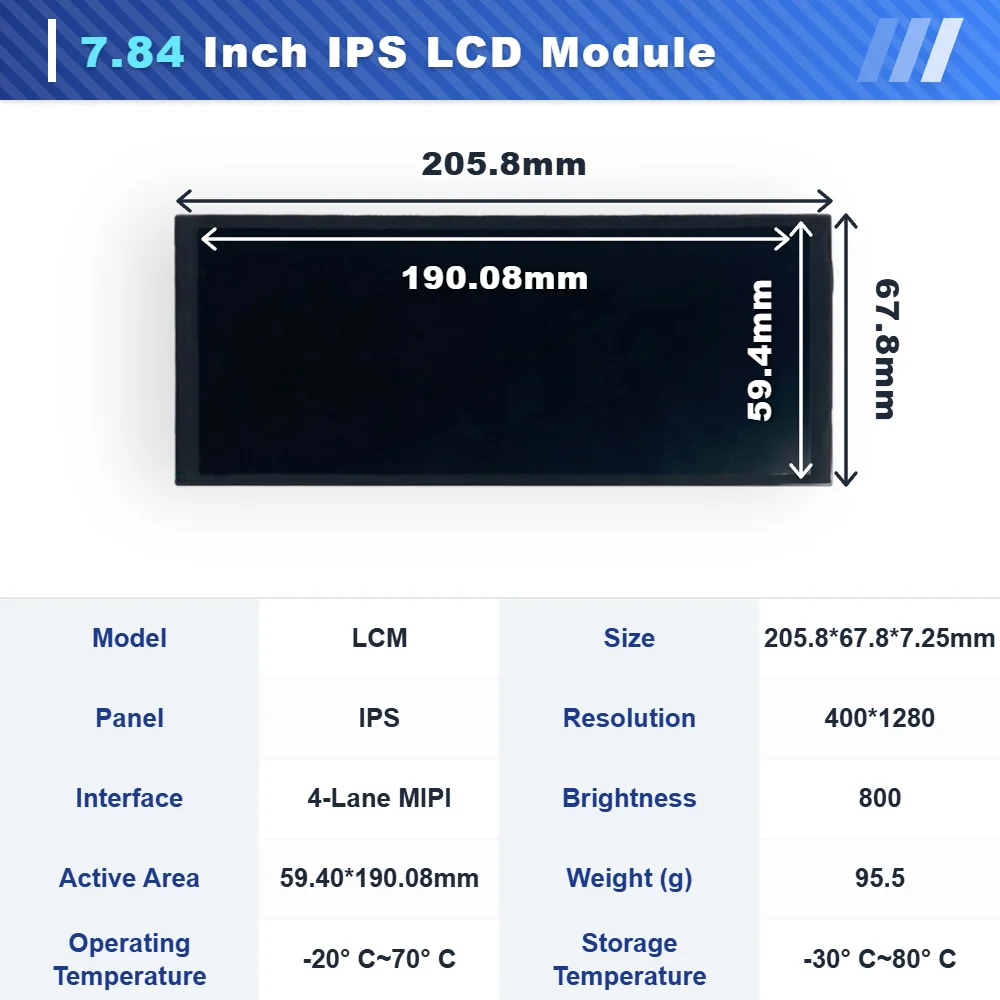

Specification

Produce Name	7.84 inch IPS LCD Module
Resolution	400*1280
Brightness	800 cd/m2
Size	205.8*67.8*7.25 Mm
Active Area	59.40(H)*190.08(V) mm

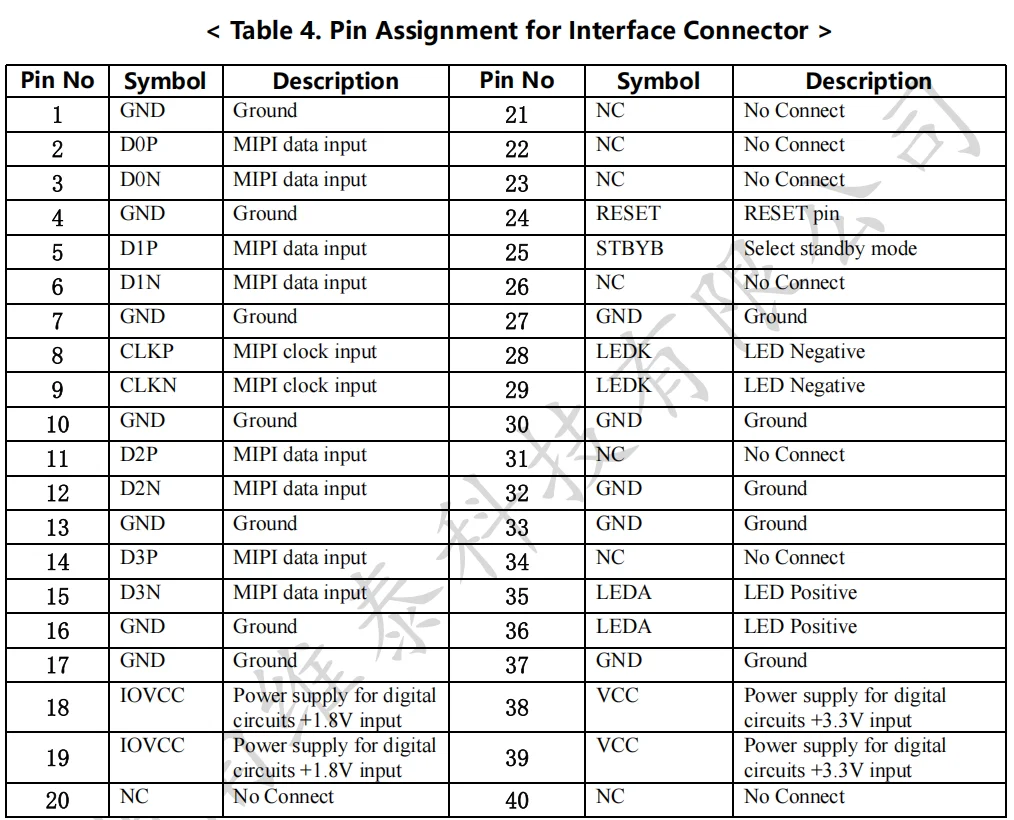

Interface	4-Lane MIPI
LCD Type	IPS LCD DISPLAY
Working temperature	-20°C~70°C
Storage Temperature	-30°C~80°C
Application	Automotive Display/Smart Home

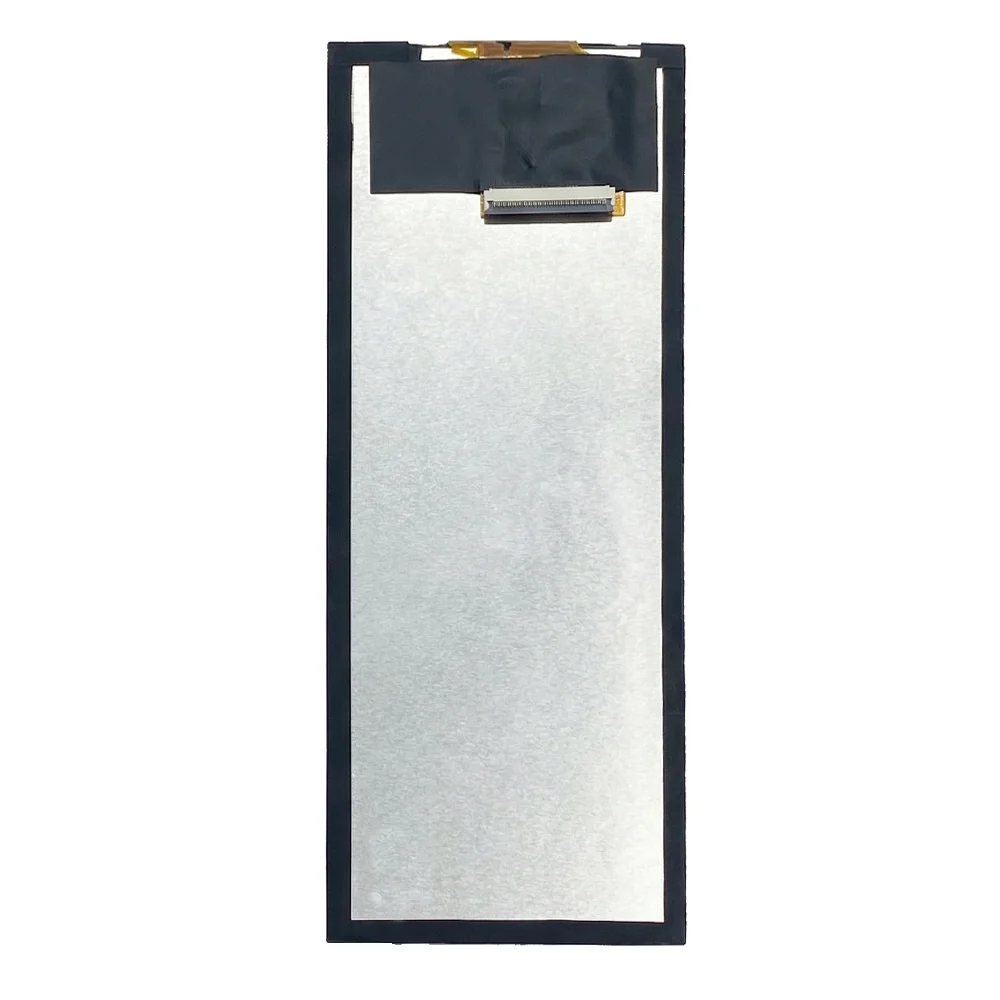

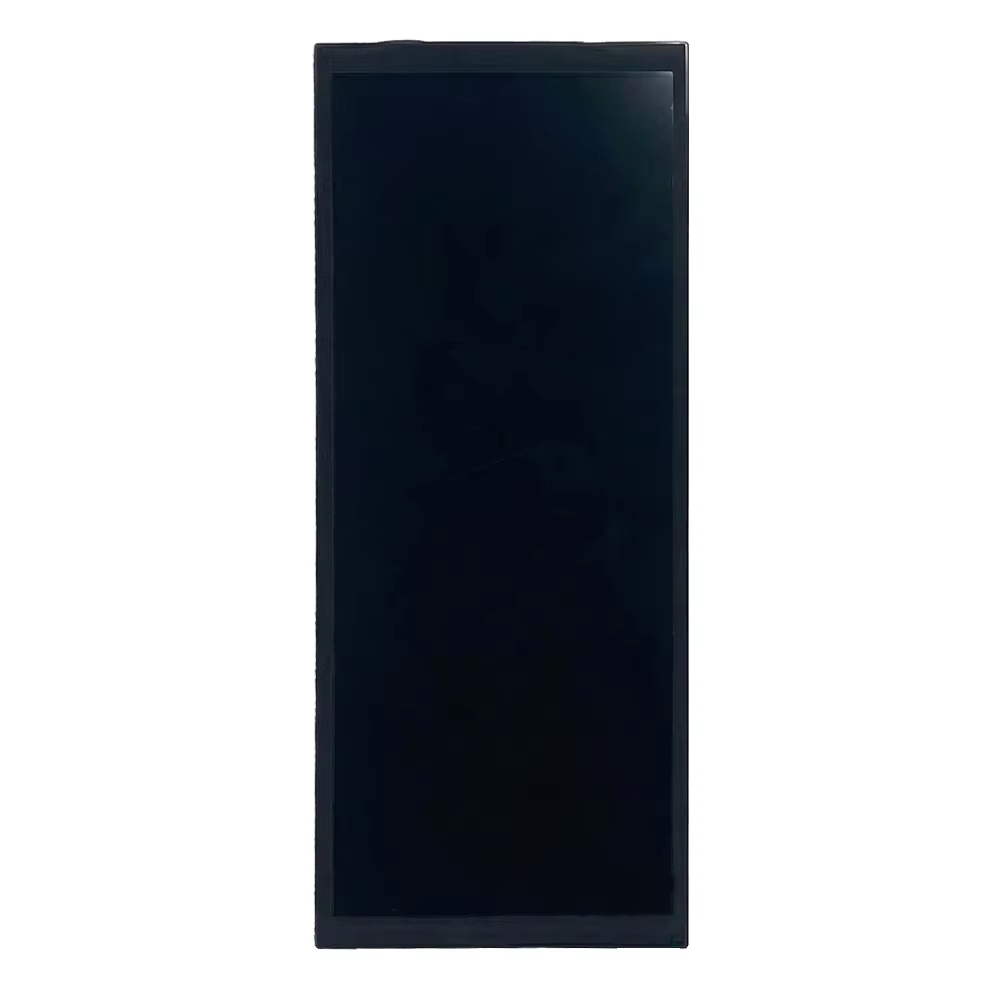

Details Images

Rugged Thermal Engineering for Mission-Critical Environments
The automotive and industrial sectors demand components that perform consistently under rigorous environmental stress. The 7.84 Inch TFT LCD IPS Display Module is built to withstand temperature extremes that would cause consumer-grade electronics to fail. With a reliable Working temperature of -20°C~70°C, this module maintains its structural and optical integrity in any climate, from frigid mountain passes to blistering urban summer heat. Furthermore, at WEITAI, we push the boundaries by performing endurance tests up to a Storage Temperature of -30°C~80°C, ensuring that every 7.84 Inch TFT LCD IPS Display Module remains functional even after long-term exposure during international shipping and storage. The Active Area of 59.40(H) x 190.08(V) mm is reinforced through advanced lamination processes that prevent common issues like delamination or bubbling under thermal expansion, providing a product that lasts well beyond the expected industry life cycle.

Strategic Market Advantage in Automotive and Smart Home Integration
From a commercial perspective, choosing the 7.84 Inch TFT LCD IPS Display Module with 400x1280 Resolution is a strategic move that significantly boosts the market competitiveness of your final product. In a recent pilot project with a luxury automotive client, the implementation of our high-brightness IPS LCD DISPLAY led to a 25% increase in user satisfaction ratings regarding display clarity and nighttime visibility. For the Smart Home market, the elongated shape of this module allows for "invisible-until-lit" designs, where the screen blends into the home interior when inactive, offering a premium user experience. For B2B buyers, this module is not just a hardware component; it is an integrated solution that adds tangible value to the end vehicle or smart hub. By adopting this 7.84 Inch TFT LCD IPS Display Module, brands align themselves with the future of intuitive, human-centric design.

Global Project Reliability through Advanced Vertical Manufacturing
Partnering with WEITAI provides access to a sophisticated supply chain that is fine-tuned for global excellence. As a national "Specialized & Sophisticated" enterprise, WEITAI maintains complete control over the entire production ecosystem. Our in-house capabilities span the full value chain—from the microscopic precision of glass cutting and COG/FOG bonding to the manufacturing of custom LED Backlight systems and advanced protective lamination. Our fully automated production lines are managed by sophisticated ERP and MES systems, which ensures that every 7.84 Inch TFT LCD IPS Display Module with 4-Lane MIPI Interface is produced with 100% traceability. We are fully certified under IATF16949, ISO9001, and ISO14001, guaranteeing a level of quality that satisfies the world's strictest automotive audits. With a scalable capacity of 30,000,000pcs/year, WEITAI is fully equipped to support your projects from the initial EVT/DVT prototyping phase all the way to global mass production.

FAQ

Q1: Do you accept sample order or small quantity order?
A1: Yes, you can place sample orders for testing first, we will fully support you every stage of new product introduction,from
EVT -> DVT -> PVT, until mass production.

Q2: How do you guarantee the quality?
A2: We are qualified for a series of quality system certification (ISO14001 etc.) and brand customer factory audit every year.
We have strict supplier quality control system from NPI to each lot mass production, and routine supplier's factory audit will be done every year.

Q3: Could you offer OEM&ODM service?
A3: Yes, we have sufficient capacity（30,000,000pcs/years） to provide OEM&ODM service.

Q4: How long is your product life cycle?
A4: The average life cycle of most of our products is more than 5 years.
