Ultra-Slim High-Definition Visualization for Integrated Cockpits
In the rapidly evolving landscape of smart vehicle interiors, the 8.1 Inch TFT LCD IPS Display Module has established itself as a critical component for high-end digital architecture. This specialized 8.1 Inch TFT LCD IPS Display Module with 600x1600 Resolution is engineered with a unique, elongated aspect ratio that perfectly fits the aesthetic and functional requirements of modern automotive dashboards. Unlike standard consumer-grade screens, this TFT LCD IPS Display Module offers an ultra-wide visual field, allowing for a seamless display of panoramic data without the bulky footprint of traditional displays. With its compact Size of 78.43 x 202.67 x 4.6 mm, the module provides designers with unprecedented flexibility for Panel Mounting within narrow spaces like A-pillars or overhead consoles. By integrating this 8.1 Inch TFT LCD IPS Display Module, developers can achieve a futuristic look while ensuring that every pixel of the 600x1600 Resolution contributes to a safer, more intuitive user interface.

Superior IPS Panel Technology and Daylight Readability
Visibility is the most vital performance metric for any Automotive Use or Smart Home display. The 8.1 Inch TFT LCD IPS Display Module leverages premium In-Plane Switching (IPS) technology to maintain color accuracy and contrast across wide 85/85/85/85 viewing angles. This ensures that whether a driver is glancing from a sharp angle or a user is interacting with a wall-mounted smart hub, the imagery on the IPS LCD DISPLAY remains crisp and free from color shifting. Furthermore, the specialized 500 cd/m2 Brightness is a game-changer for environments with high ambient light. Our 8.1 Inch TFT LCD IPS Display Module with 500 Cd/m Brightness effectively cuts through sunlight glare, ensuring that critical alerts and navigation maps are always legible. In real-world scenarios, such as driving during a bright afternoon or using a smart home panel in a sun-drenched kitchen, this level of luminance ensures the LED Backlight performs reliably to keep the user informed and safe.

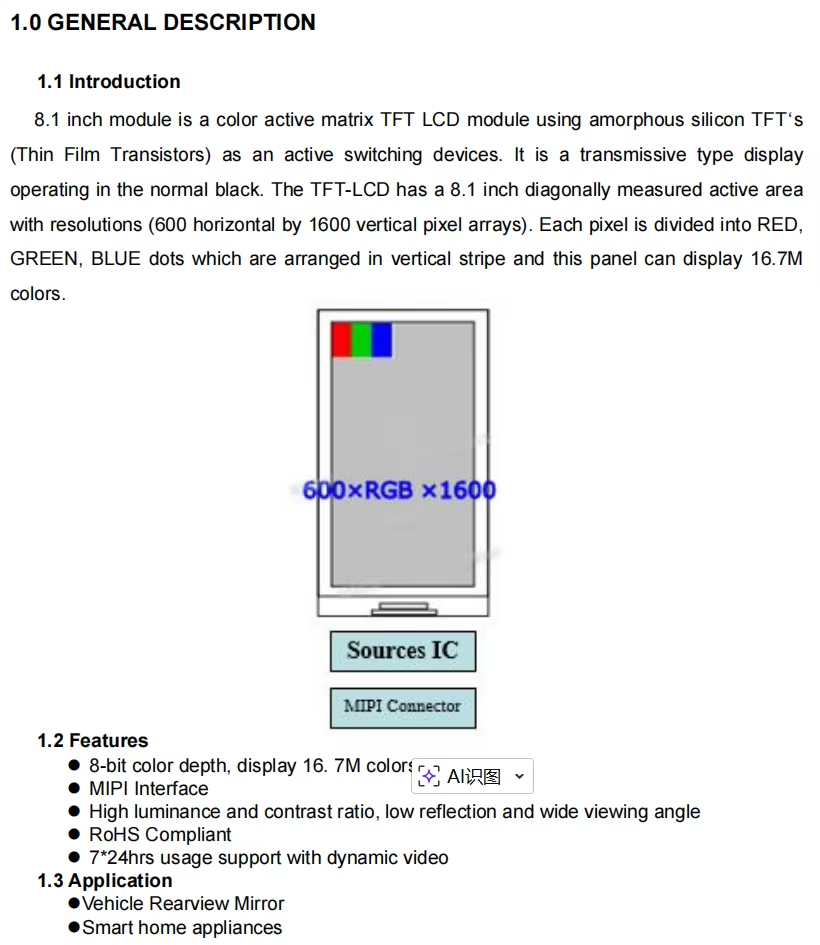

High-Speed MIPI Interface for Low-Latency Image Transmission
Technical precision in data handling is where the 8.1 Inch TFT LCD IPS Display Module truly stands out, specifically through its high-performance MIPI Interface. In the context of modern streaming media, such as a Car Rearview Mirror, the speed of image transmission can be the difference between safety and a collision. This 8.1 Inch TFT LCD IPS Display Module MIPI configuration supports high-bandwidth data transfer with significantly reduced electromagnetic interference (EMI). During our collaboration with Tier-1 automotive suppliers, we found that the MIPI Interface allows for a much lower power consumption profile while maintaining the high frame rates required for fluid, real-time video playback. This makes the 8.1 Inch TFT LCD IPS Display Module a strategic choice for engineers who need to balance high-speed 600x1600 Resolution graphics with the strict energy constraints of a vehicle's electrical system.

Specification

Produce Name	8.1 inch IPS LCD Module
Resolution	600*1600
Brightness	500 cd/m2

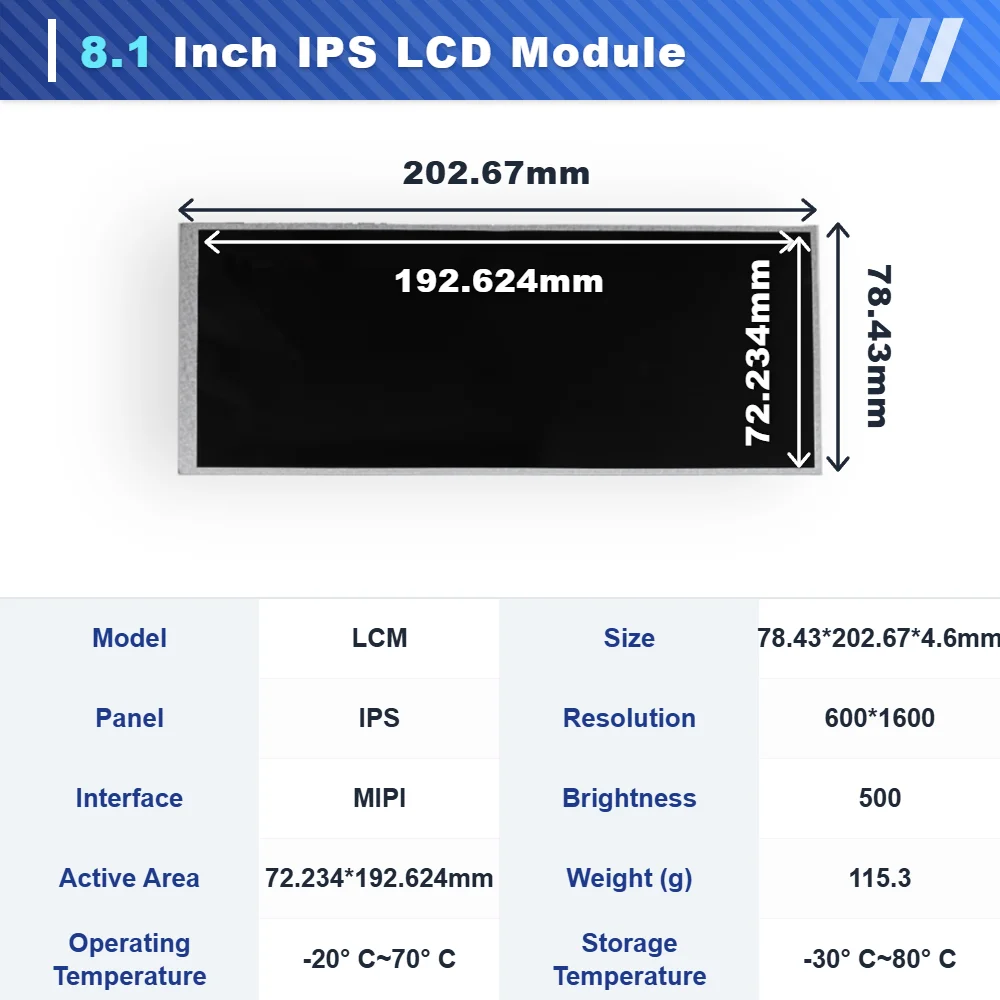

Size	78.43*202.67*4.6 Mm
Active Area	72.234(H)*192.624(V) mm

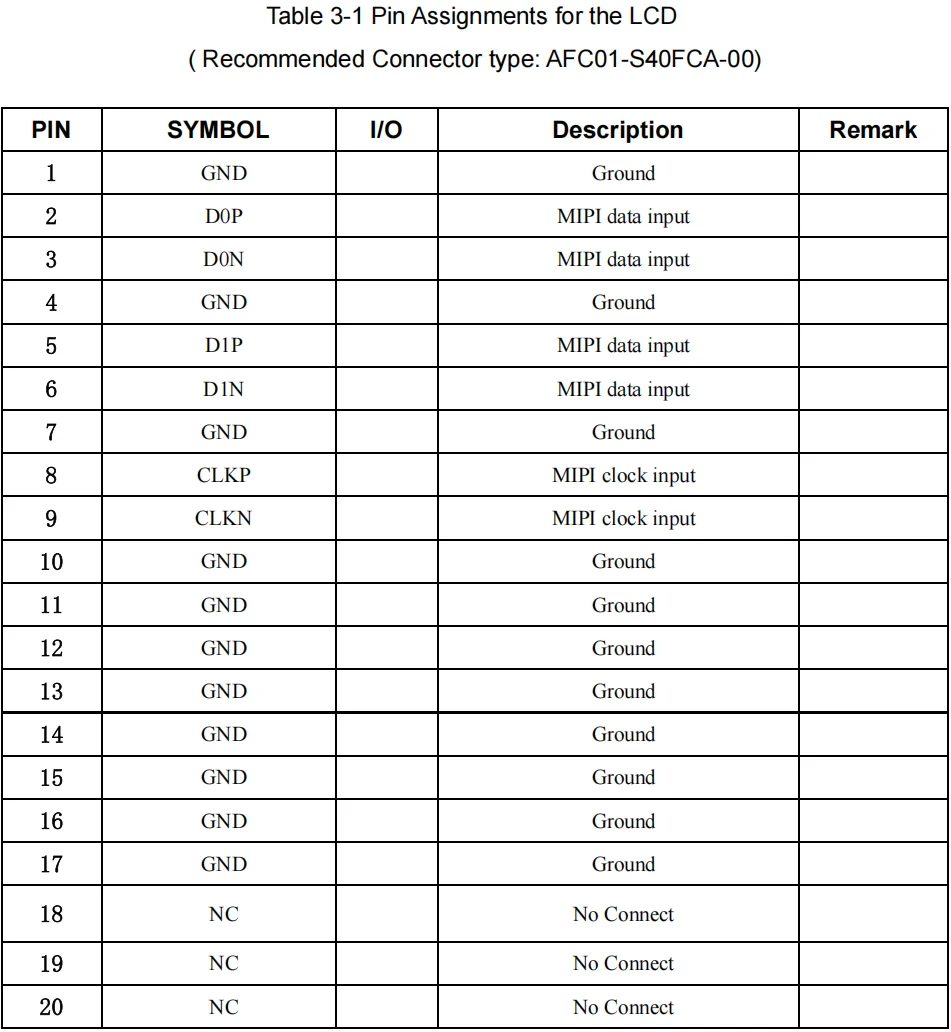

Interface	MIPI
LCD Type	IPS LCD DISPLAY
Working temperature	-20°C~70°C
Storage Temperature	-30°C~80°C
Application	Car Rearview Mirror/Smart Home

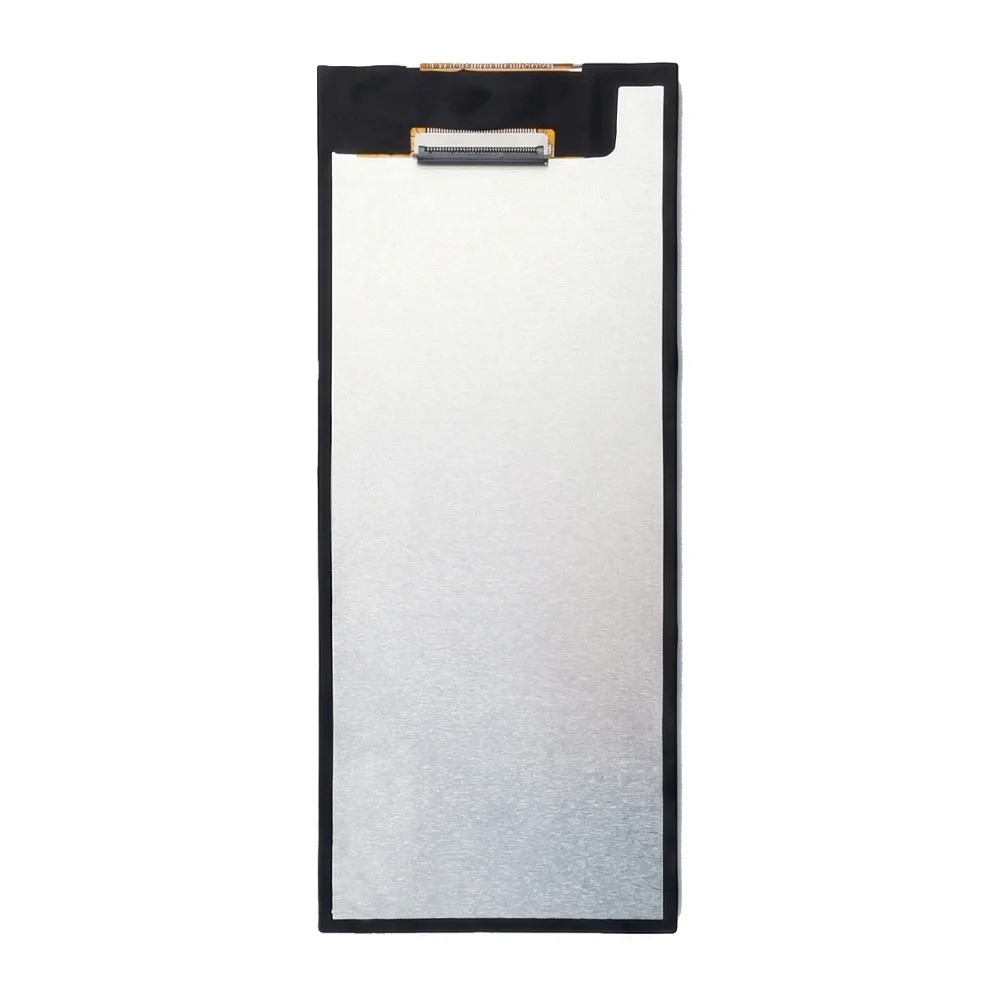

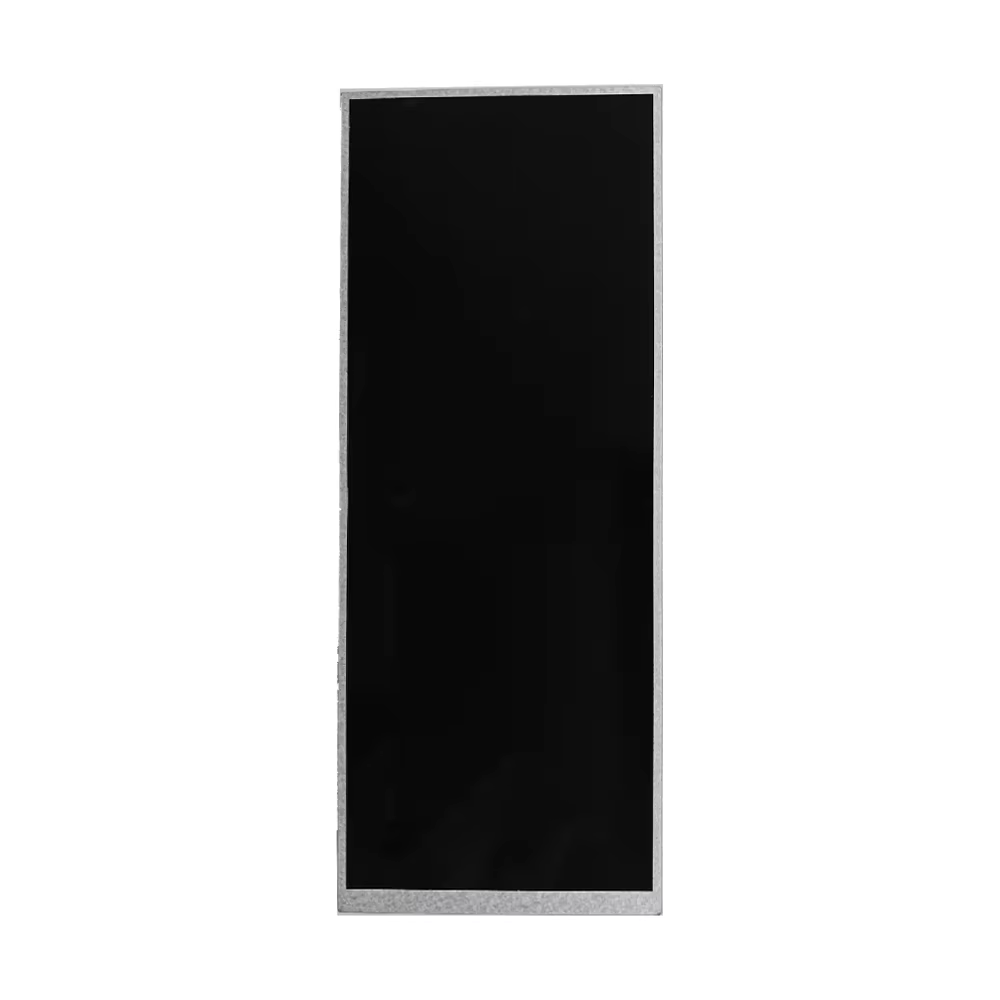

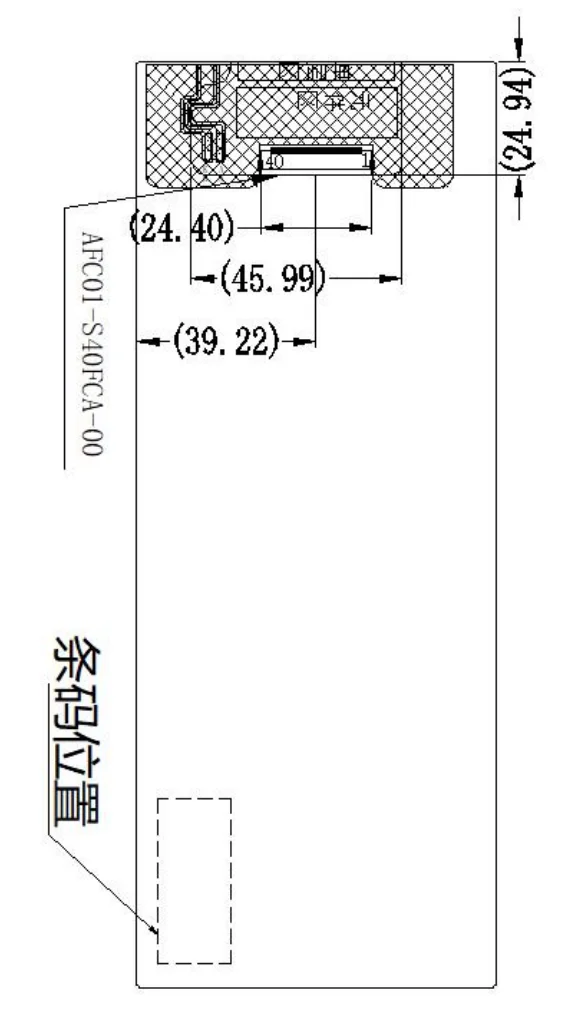

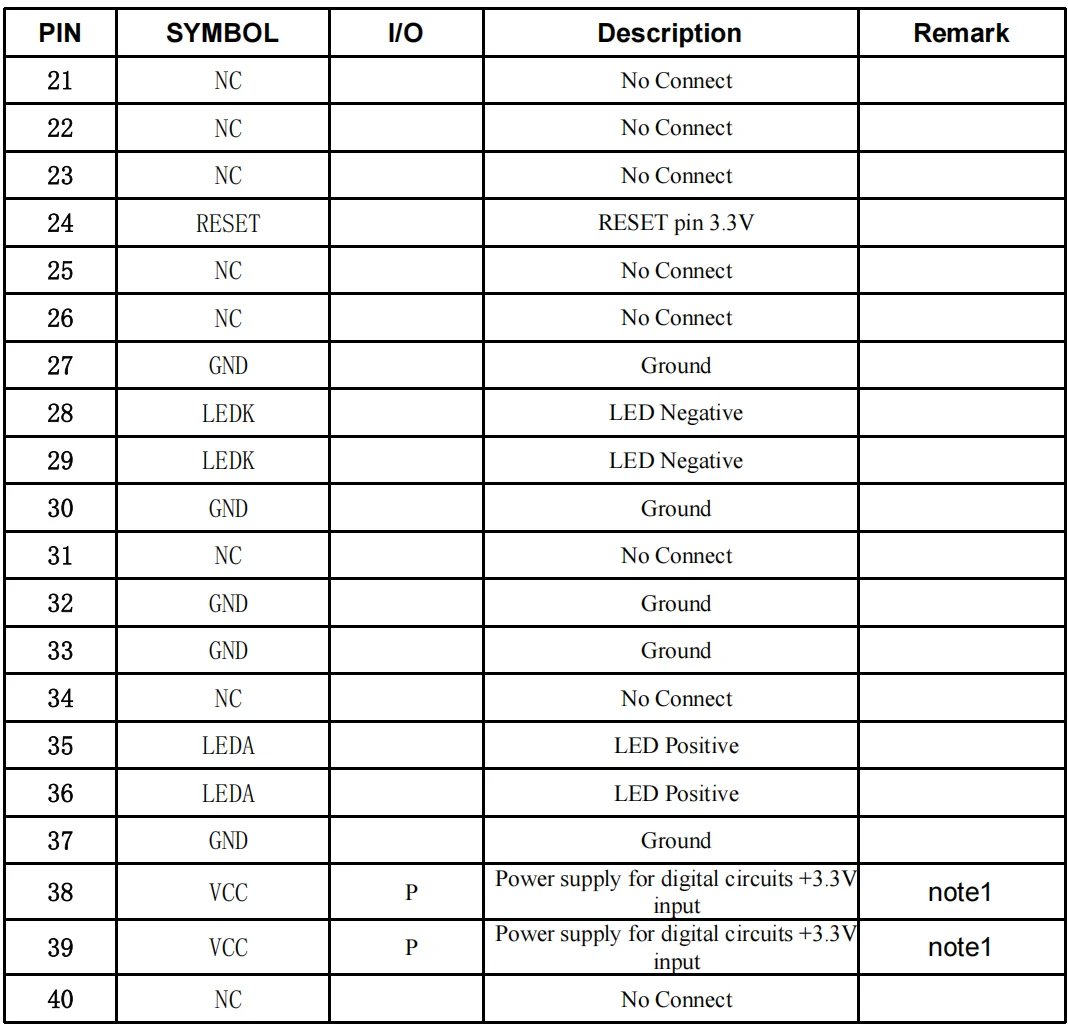

Details Images

Exceptional Thermal Endurance for Automotive and Industrial Environments
Reliability in extreme conditions is a non-negotiable requirement for professional-grade hardware. The 8.1 Inch TFT LCD IPS Display Module is built to survive where standard tablets fail, featuring a robust Working temperature of -20°C~70°C. Whether a vehicle is parked in a sub-zero winter environment or a smart home device is exposed to localized heat, this TFT LCD IPS Display Module maintains its structural integrity and optical performance. At WEITAI, we subject these units to even harsher Storage Temperature tests of -30°C~80°C to simulate long-term exposure during global shipping and storage. The Active Area of 72.234(H) x 192.624(V) mm is protected by a specialized lamination process that resists delamination under thermal stress. Choosing a display with this level of environmental resilience ensures that your end-product remains functional throughout its lifecycle.

Strategic Value in Smart Rearview Mirrors and IoT Control Hubs
Integrating the 8.1 Inch TFT LCD IPS Display Module with 600x1600 Resolution into your hardware lineup offers a massive competitive advantage in the Car Rearview Mirror and Smart Home markets. We recently worked with a client specializing in fleet management who replaced traditional mirrors with streaming mirrors powered by our IPS LCD DISPLAY. The result was a 30% improvement in driver peripheral vision and a significant reduction in side-swipe accidents. For the smart home industry, the unique shape of the 8.1 Inch TFT LCD IPS Display Module allows for a sleek, vertical control interface that fits into narrow wall sections, elevating the premium feel of the installation. For B2B buyers, this module isn't just a part—it's a solution that adds tangible market value and enhances the end-user's safety and convenience.

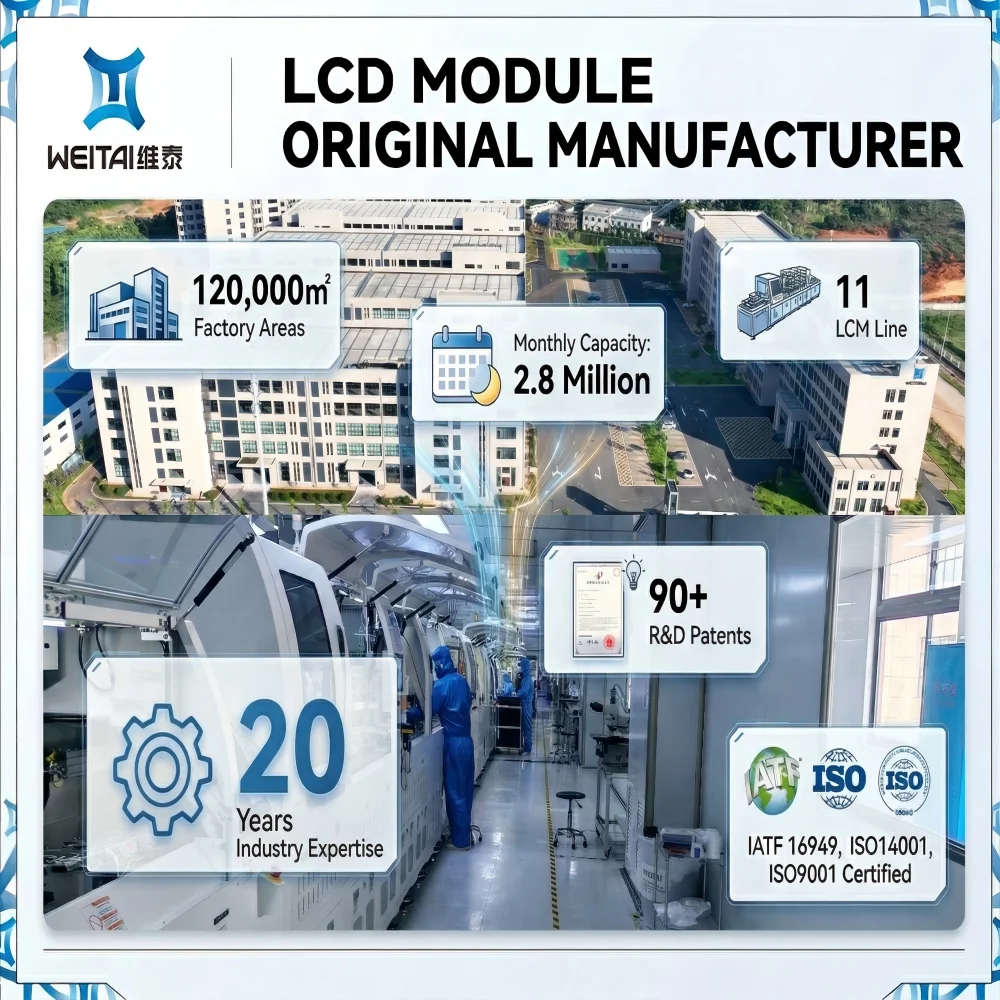

Global Project Reliability through Advanced Vertical Manufacturing
Partnering with WEITAI means tapping into a sophisticated supply chain designed for global excellence. As a national "Specialized & Sophisticated" enterprise, WEITAI operates a highly optimized vertical production model. This means our in-house capabilities span the entire value chain—from the precision of glass cutting and COG/FOG bonding to the manufacturing of custom LED Backlight units and full protective lamination. Our fully automated lines are governed by advanced ERP and MES systems, ensuring that every 8.1 Inch TFT LCD IPS Display Module with MIPI Interface is produced with 100% traceability and consistent quality. With a certified IATF16949 and ISO9001 infrastructure, WEITAI provides the scalability (up to 30,000,000pcs/year) to support your journey from the initial EVT/DVT prototypes to high-volume mass production.

FAQ

Q1: Do you accept sample order or small quantity order?
A1: Yes, you can place sample orders for testing first, we will fully support you every stage of new product introduction,from
EVT -> DVT -> PVT, until mass production.

Q2: How do you guarantee the quality?
A2: We are qualified for a series of quality system certification (ISO14001 etc.) and brand customer factory audit every year.
We have strict supplier quality control system from NPI to each lot mass production, and routine supplier's factory audit will be done every year.

Q3: Could you offer OEM&ODM service?
A3: Yes, we have sufficient capacity（30,000,000pcs/years） to provide OEM&ODM service.

Q4: How long is your product life cycle?
A4: The average life cycle of most of our products is more than 5 years.
