Immersive Panoramic Visuals for Next-Gen In-Vehicle Cockpits
When designing modern automotive interiors or streamlined smart appliances, the 9.16 Inch TFT IPS LCD Module offers a definitive departure from traditional aspect ratios that restrict creative freedom. This specialized 9.16 Inch TFT IPS LCD Module with RGB EDP provides a unique "stretched-bar" form factor, meticulously engineered with a crisp 462x1920 Resolution. This high-pixel-density configuration allows system integrators to display real-time navigation, media controls, and diagnostic data in a single, panoramic view. By utilizing the Active Area of 54.442(H) x 226.253(V) mm, developers can effectively eliminate the clutter of multiple smaller screens, opting instead for a seamless, ultra-wide In-vehicle display. Whether it is integrated as a streaming rearview mirror or a sleek control panel for Smart Home systems, the slim 249.4 x 66 x 4.5 mm footprint ensures it fits into tight dashboard contours without compromising on structural aesthetics.
Uncompromising Optical Clarity via Advanced IPS Transmissive Matrix
At the heart of the 9.16 Inch TFT IPS LCD Module lies a high-performance IPS LCD Module technology, specifically chosen for its superior In-Plane Switching characteristics. In a professional In-vehicle display environment, viewing angles are critical; a driver or passenger must be able to read the screen clearly from off-axis positions without experiencing color inversion or contrast loss. Our TRANSMISSIVE type liquid crystal matrix ensures that the 462x1920 Resolution remains vibrant and accurate regardless of the observer's vantage point. Furthermore, the impressive 500 cd/m2 Brightness allows for exceptional legibility even under direct sunlight or intense ambient cabin lighting. This level of optical fidelity ensures that the 9.16 Inch TFT IPS LCD Module with 500cd/m Brightness delivers a premium, paper-like reading experience that enhances user safety and interface satisfaction in high-end Smart Home hubs.
High-Speed Data Throughput with Versatile RGB EDP and MIPI Connectivity
From a hardware engineering perspective, the versatility of the RGB EDP and MIPI Interface options sets the 9.16 Inch TFT IPS LCD Module apart from generic industrial displays. Modern user interfaces (UI) for In-vehicle display systems are increasingly graphics-intensive, requiring high refresh rates and minimal latency. By supporting a robust MIPI data path, this 9.16 Inch TFT IPS LCD Module facilitates high-speed signal transmission with significantly reduced electromagnetic interference (EMI)—a common headache for engineers during the EVT and DVT stages of hardware development. The inclusion of the RGB EDP protocol further expands compatibility with various GPU architectures, ensuring that the 462x1920 Resolution assets are rendered with zero stutter. This focus on connectivity precision ensures that the IPS LCD Module acts as a high-bandwidth bridge between the system’s processor and the user's visual perception.
Produce Name |
9.16 inch IPS LCD Module |
Resolution |
462*1920 |
Brightness |
500 cd/m2 |
Weight |
368g |

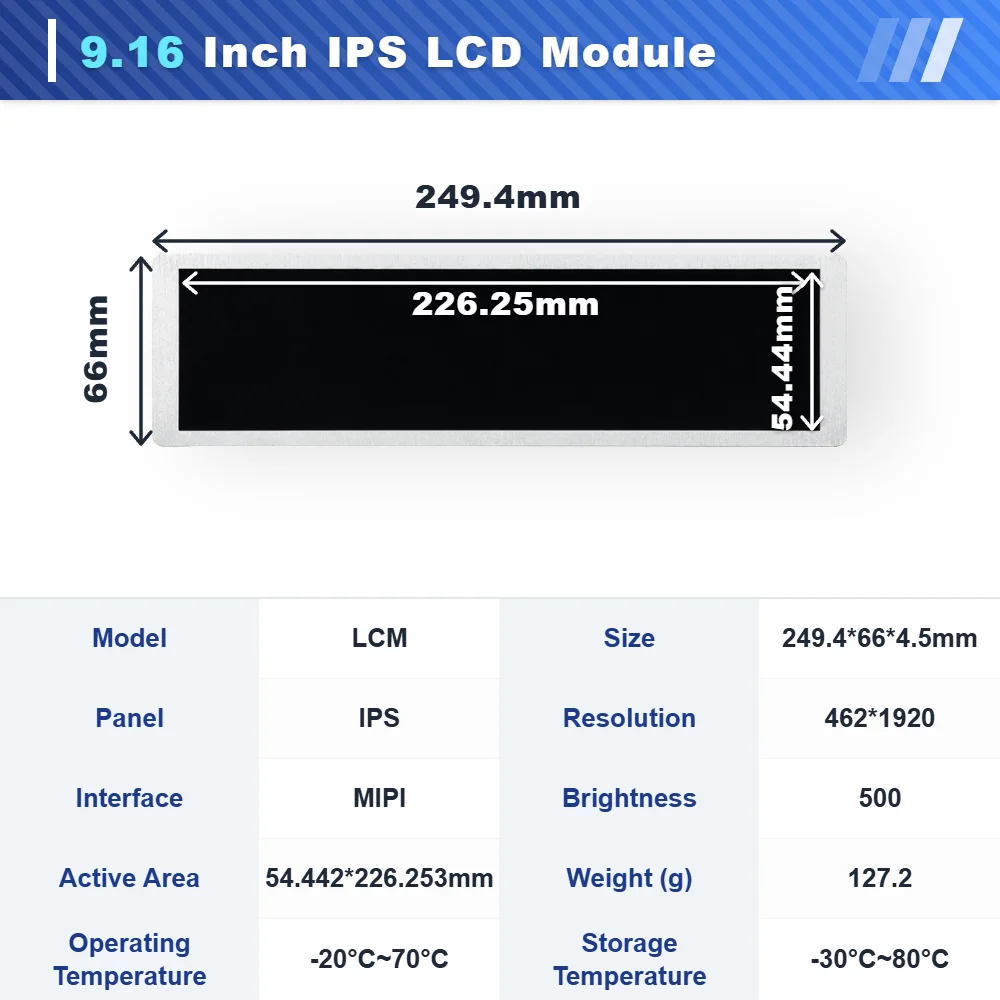

Size |
249.4*66*4.5 mm |
Active Area |
54.442(H)*226.253(V) mm |

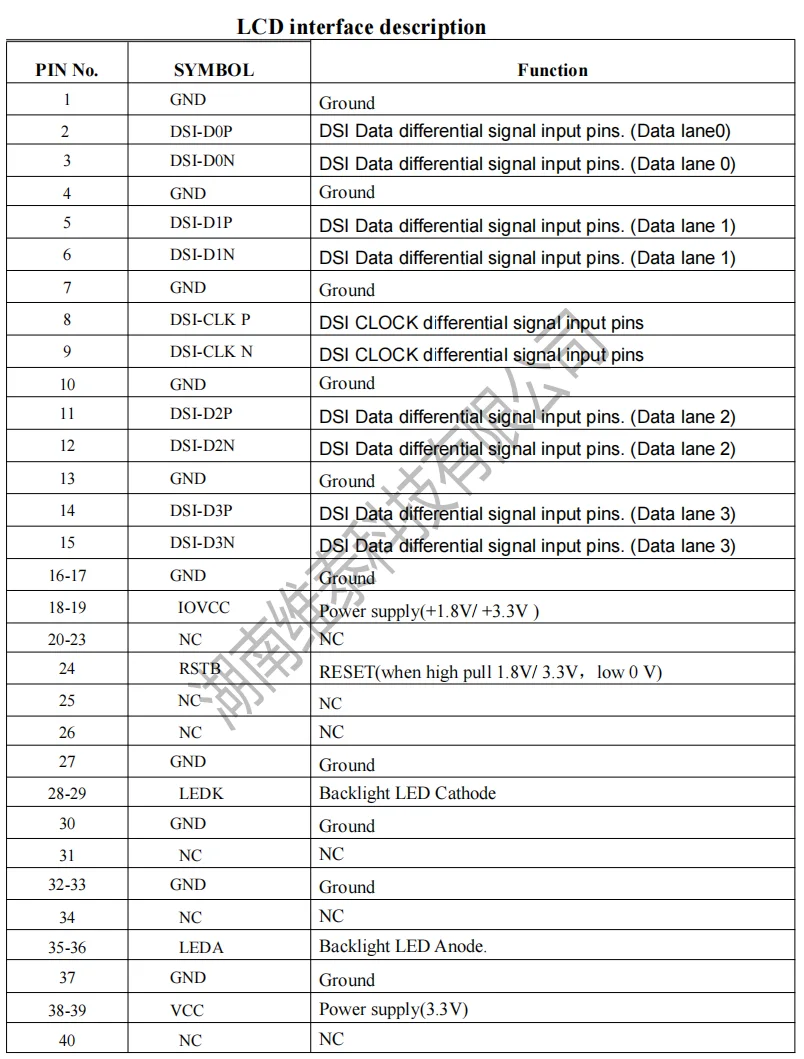

Interface |
MIPI |
LCD Type |
TRANSMISSVIE
|
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Input voltage |
IOVCC=1.8V/ 3.3V，VCC=3.3±0.3V |
Pixel pitch |
0.11784(H) × 0.11784(V) mm |
Application |
In-vehicle display/Smart Home |
Rugged Reliability for Automotive and Smart Home Ecosystems
Commercial-grade displays must survive more than just standard office conditions; they must endure extreme thermal cycles and mechanical stress. The 9.16 Inch TFT IPS LCD Module is purpose-built for resilience, boasting a Working temperature of -20°C~70°C and a storage range reaching 80°C. In our extensive testing at WEITAI, we have optimized the pixel pitch of 0.11784(H) × 0.11784(V) mm to ensure that thermal expansion does not lead to pixel misalignment or mura effects over long-term operation. This ruggedized 9.16 Inch TFT IPS LCD Module with RGB EDP is therefore perfectly suited for the intense environment of a car dashboard exposed to solar radiation, as well as the 24/7 operational demands of a Smart Home security gateway. This durability directly translates into a lower total cost of ownership (TCO) for B2B clients by minimizing field maintenance and panel failures.
Strategic Business Growth through Vertical Integration and Life Cycle Security
Choosing the 9.16 Inch TFT IPS LCD Module is not just a hardware purchase; it is a strategic partnership for your supply chain. In a recent project involving a luxury EV manufacturer, the integration of our 462x1920 Resolution modules led to a 15% reduction in cabin assembly time due to our precise mechanical tolerances. For B2B buyers, the WEITAI advantage includes a guaranteed product life cycle of more than 5 years, which is vital for industrial and automotive sectors where re-certification of components is costly and time-consuming. Because WEITAI operates as a national "Specialized & Sophisticated" enterprise, every 9.16 Inch TFT IPS LCD Module with RGB EDP is produced on fully automated lines governed by ERP and MES systems. This vertical integration—from glass cutting to full lamination—ensures that the 500cd/m Brightness and signal integrity remain consistent from the first prototype to mass production of millions of units.
Excellence in Manufacturing and Global Compliance
The reliability of the 9.16 Inch TFT IPS LCD Module is backed by an unyielding commitment to quality management. WEITAI holds prestigious certifications including IATF16949, ISO9001, and ISO14001, which are the gold standards for automotive and environmental excellence. With an annual manufacturing capacity of 30,000,000 pieces, the scale of production ensures that even high-volume global rollouts are met with consistent lead times and stable pricing. By leveraging the in-house COG/FOG bonding and backlight manufacturing expertise of WEITAI, clients receive a 9.16 Inch TFT IPS LCD Module with 462x1920 Resolution that has undergone rigorous NPI (New Product Introduction) protocols. This holistic approach to manufacturing integrity provides the peace of mind that global OEMs require to maintain their market-leading positions in the Smart Home and automotive sectors.
