High-Performance Visual Architecture for Narrow Geometry Applications
In the current landscape of industrial design, moving away from standard aspect ratios isn't just a trend—it's a necessity for space-optimized hardware. The WEITAI 9.3 Inch TFT LCD IPS Display Module serves as a specialized answer for engineering teams that need a high-performance, stretched-bar interface. Featuring a unique 600x1600 resolution, this display allows for a dense flow of data within spatial constraints that would reject a standard screen. We often see hardware developers struggling to fit meaningful UI into streamlined vehicle dashboards or slim 1U rack-mount server fronts; this 9.3 Inch TFT LCD IPS Display Module eliminates those headaches. By choosing a WEITAI solution, you are ensuring your product maintains a professional, high-end aesthetic while delivering the "retina-level" clarity expected in 2026. The slim Size 231897.3 Mm profile is deliberately designed for flush Panel Mounting, allowing for a seamless, low-profile fit in premium metal or composite enclosures.

Optical Superiority through IPS Logic and High-Luminance Backlighting
The real "magic" behind the 9.3 Inch TFT LCD IPS Display Module is its In-Plane Switching (IPS) core. If you’ve worked with standard TN panels, you know the frustration of color shifting and "washing out" when viewed from the side. This IPS LCD display solves that, maintaining consistent color accuracy and deep contrast from virtually any angle. This is non-negotiable for an Automotive Display, where a driver must be able to process telemetry data in a split second without tilting their head. To combat the harsh glare of direct sunlight or high-intensity overhead factory lights, we’ve equipped this module with a 500 Cd/m Brightness output. This integrated LED backlight isn't just about power; it's about legibility in "real world" professional environments. The pairing of 600x1600 resolution with high-transmittance filters ensures that whether you are building a medical diagnostic tool or a precision industrial controller, every pixel is sharp, vibrant, and, most importantly, reliable.

Streamlined Integration via High-Bandwidth MIPI Interface Technology
From an electrical engineering standpoint, the WEITAI 9.3 Inch TFT LCD IPS Display Module is designed to simplify your PCB layout. It utilizes a high-speed MIPI interface, which has become the gold standard for modern mobile and automotive SoCs. The beauty of a MIPI interface lies in its ability to handle massive data throughput while keeping electromagnetic interference (EMI) to an absolute minimum—a lifesaver when your board is packed with sensitive RF or GPS components. This efficient data handling means your 600x1600 resolution graphics render smoothly with surprisingly low power consumption, making it ideal for energy-conscious smart home hubs or handheld diagnostic gear. As your team moves from EVT (Engineering Verification Test) to DVT (Design Verification Test), you’ll find that the signal stability of this MIPI interface panel mounting solution drastically cuts down on troubleshooting hours, getting your product to market months ahead of the competition.

Specification

Produce Name	8.3 inch IPS LCD Module
Resolution	600*1600
Brightness	500 cd/m2

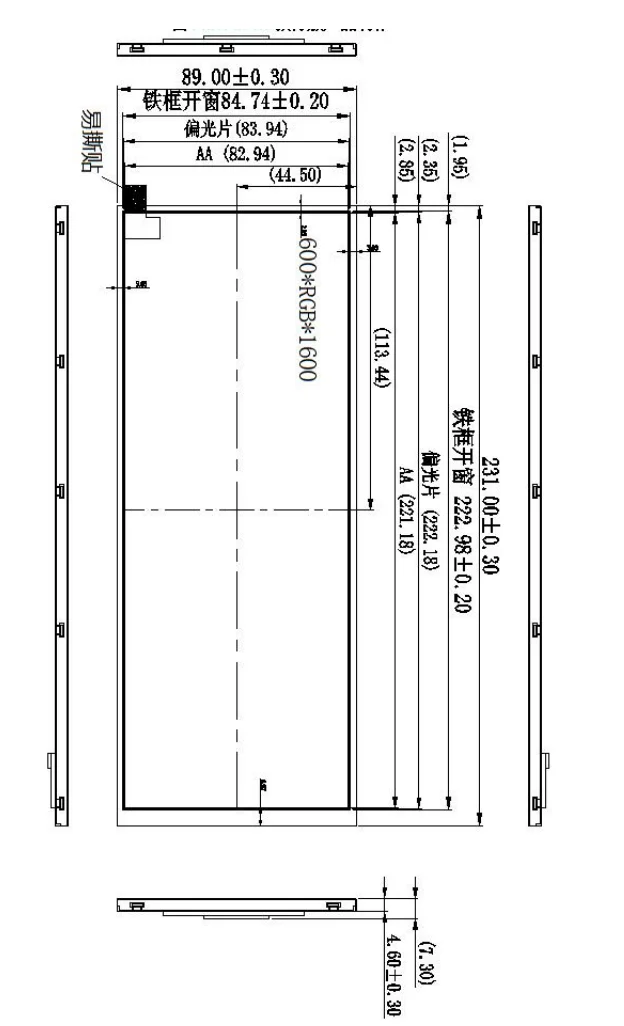

Size	231*89*7.3 Mm
Active Area	82.944(H)*221.184(V) MM
Interface	MIPI
LCD Type	IPS LCD DISPLAY
Working temperature	-20°C~70°C
Storage Temperature	-30°C~80°C
Application	Automotive Display

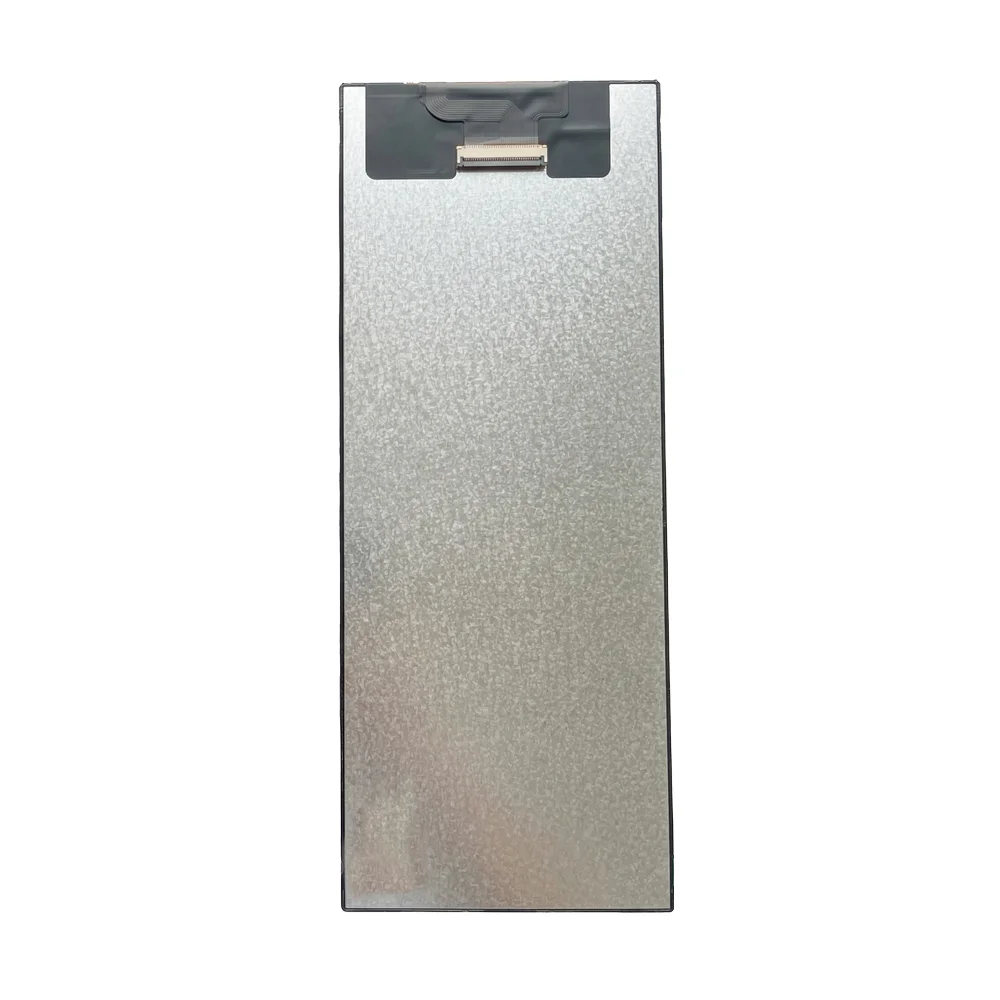

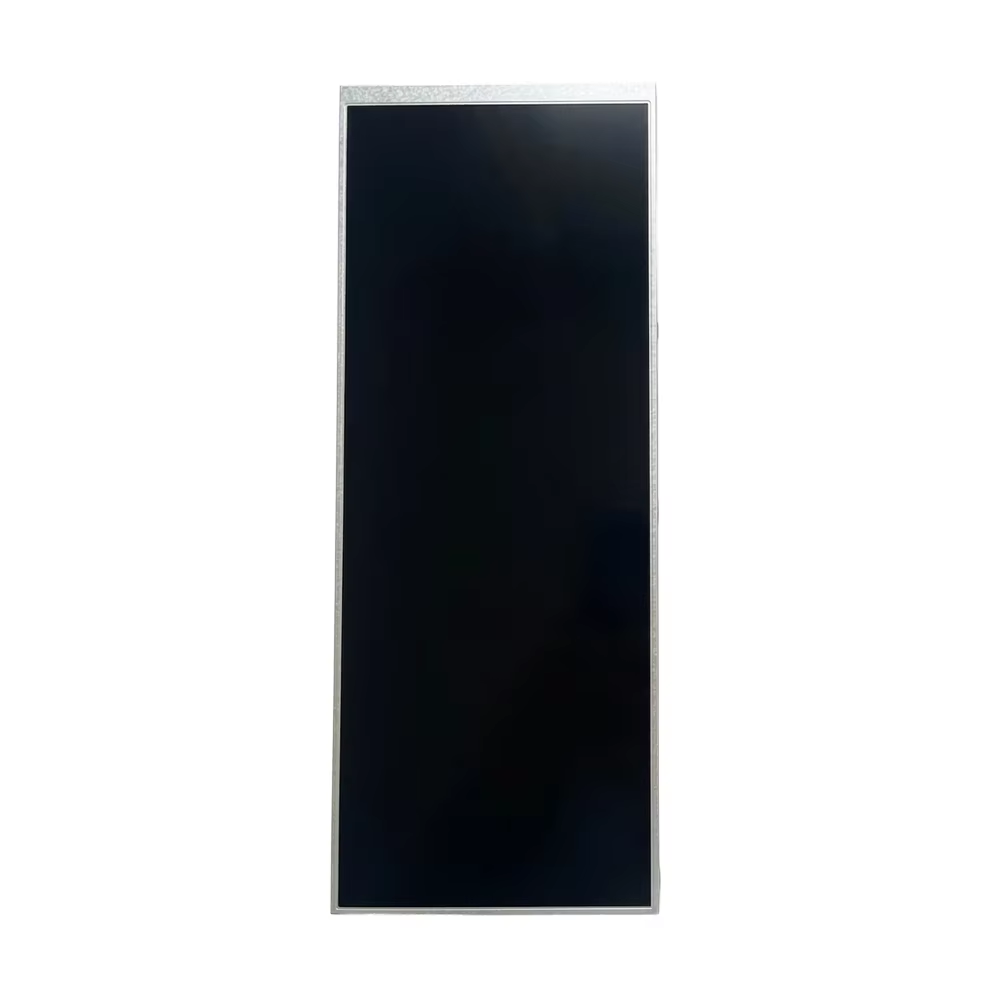

Details Images

Thermal Resilience and Ruggedized Reliability for Harsh Locales

B2B procurement isn't just about specs on a page; it’s about how a component behaves at 2:00 AM in a freezing warehouse or a sweltering equipment room. This 9.3 Inch TFT LCD IPS Display Module is built for the long haul, boasting a wide Working temperature -20°C~70°C range. We’ve seen this IPS LCD display handle cold starts in sub-zero climates and high-humidity environments without a single frame of ghosting or liquid crystal "sluggishness." Furthermore, the Storage Temperature -30°C~80°C rating means your supply chain is protected even during rough global transit through extreme heat zones. Drawing on WEITAI’s extensive experience in the heavy machinery sector, we have reinforced the internal structural bonding of the LED backlight and the glass stack. This makes the module highly resistant to the constant mechanical vibrations found in logistics and transport, ensuring a "set-and-forget" level of reliability.

Broad Application Spectrum and the Commercial Edge of Stretched Displays

The strategic advantage of adopting the 9.3 Inch TFT LCD IPS Display Module lies in its sheer versatility. In the Automotive Display world, it’s a game-changer for digital rearview mirrors and passenger-side infotainment strips. However, the potential is much wider. We are seeing this 600x1600 resolution module revolutionize laboratory "smart racks" where vertical real estate is precious but high-fidelity waveform visualization is a must. The 500 Cd/m Brightness also makes it a standout for premium retail "shelf-edge" displays, where it can run vibrant promotional video that actually stops foot traffic. Because the 9.3 Inch TFT LCD IPS Display Module is supported by a stable lifecycle of over 5 years, your company isn't constantly chasing replacements or forced into expensive mid-cycle redesigns. It’s a move that protects your R&D investment while keeping your product line at the cutting edge of display technology.

Manufacturing Mastery and 20 Years of Supply Chain Integrity

When you source from WEITAI, you aren't just buying a screen; you’re tapping into a two-decade legacy of vertical manufacturing. As a recognized national "Specialized & Sophisticated" enterprise, WEITAI controls every link in the chain—from the initial high-precision glass cutting and COG/FOG bonding to the manufacturing of custom LED backlight units and clean-room lamination. Our production floor is fully automated and synchronized through advanced ERP and MES systems, ensuring that every single 9.3 Inch TFT LCD IPS Display Module that leaves our dock meets the ultra-strict IATF16949 and ISO9001 quality benchmarks. With a massive annual capacity of 30,000,000 pieces, WEITAI has the industrial muscle to scale with you, whether you’re starting with a small-batch prototype or a multi-million-unit global rollout. We pride ourselves on providing deep OEM&ODM support, acting as an extension of your own engineering team from concept to final mass production.

FAQ

Q1: Do you accept sample order or small quantity order?
A1: Yes, you can place sample orders for testing first, we will fully support you every stage of new product introduction,from
EVT -> DVT -> PVT, until mass production.

Q2: How do you guarantee the quality?
A2: We are qualified for a series of quality system certification (ISO14001 etc.) and brand customer factory audit every year.
We have strict supplier quality control system from NPI to each lot mass production, and routine supplier's factory audit will be done every year.

Q3: Could you offer OEM&ODM service?
A3: Yes, we have sufficient capacity（30,000,000pcs/years） to provide OEM&ODM service.

Q4: How long is your product life cycle?
A4: The average life cycle of most of our products is more than 5 years.
