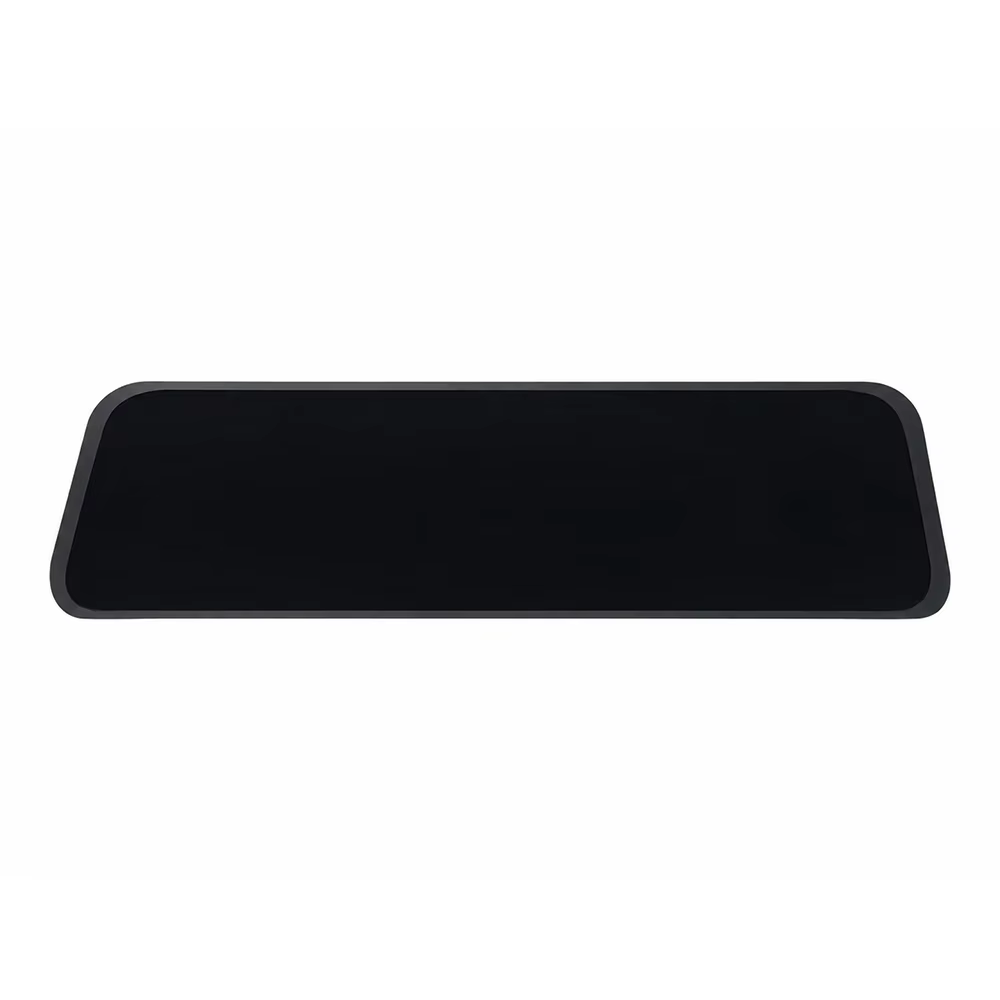

Integrating high-definition visual hardware into compact, specialized environments requires developers to rethink standard screen aspect ratios. This premium 9.35 inch IPS TFT LCD display module is specifically engineered to address the physical limitations of modern vehicle cockpits and ultra-narrow commercial housings.

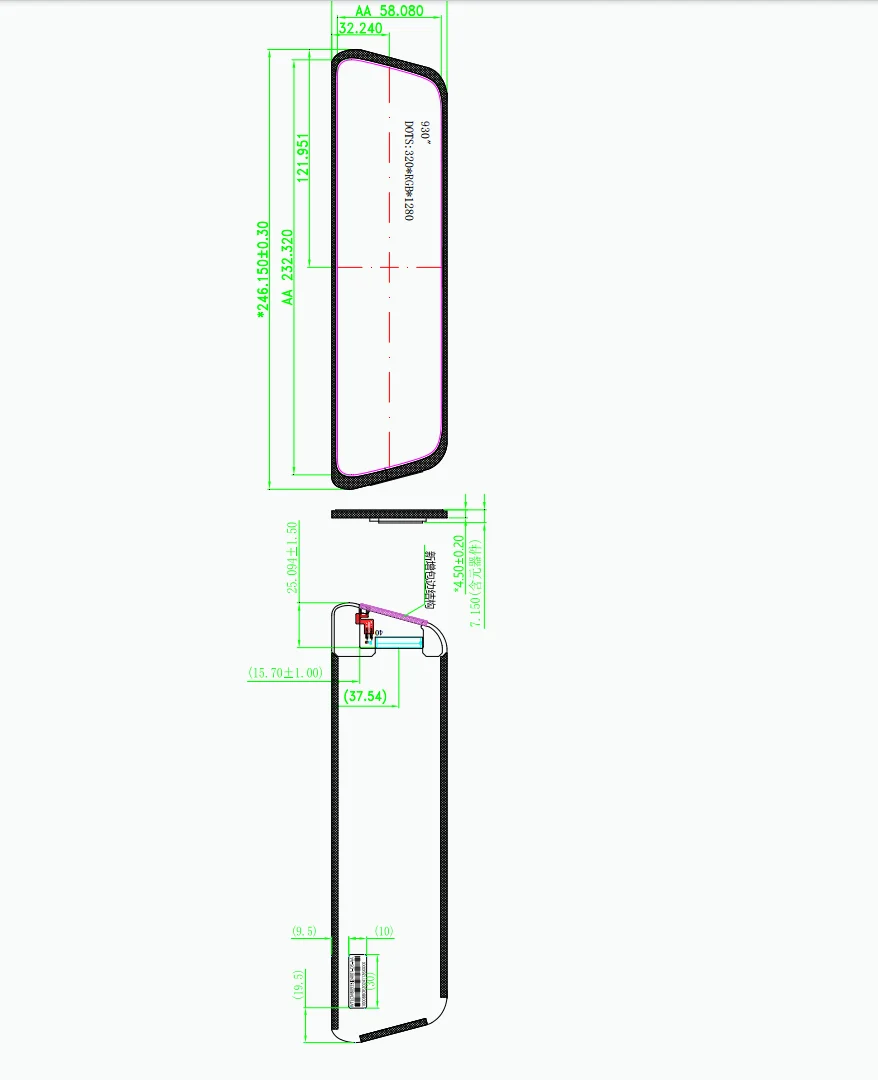

Featuring a unique native 320x1280 resolution configured in a vertical or horizontal stretched layout, this 320x1280 stretched layout screen provides hardware engineers with an incredible mechanical advantage. With precise outer dimensions measuring 246.15 x 64.48 x 7.15 mm, it slips seamlessly into the streamlined enclosures of next-generation smart rearview mirrors without requiring massive dashboard redesigns.
Weighing an ultra-light 110.2g, the physical module significantly reduces the mechanical load placed on:
Windshield mount brackets
Custom ball-joint mirror assemblies
Overhead compact cockpit consolidation frames
For industrial product architects, this lightweight configuration simplifies the mechanical design puzzle, optimizing assembly timelines while guaranteeing absolute structural stability under real-world operating vibrations.
Sunlight-Readable High Luminance Visual Precision with Wide-Angle IPS Crystals
When you deploy an intelligent display screen into an automotive or outdoor-facing application, changing ambient light presents a serious safety and usability hazard. Standard displays wash out completely under direct midday sun, rendering vital real-time video feeds useless. To solve this critical industry pain point, this 800 nits high brightness automotive display is built around an advanced high-efficiency LED backlight matrix that pushes an impressive 800 cd/m² brightness rating.
This intense luminance ensures crisp, sunlight-readable performance behind specialized semi-reflective mirror glass. Utilizing native premium In-Plane Switching (IPS) technology, the panel maintains color accuracy and perfect contrast control across an ultra-wide 178-degree viewing angle.
Boasting a spacious active display area of 58.08(H) x 232.32(V) mm, every single graphical element, rear-view stream, or system notification icon shows up with stunning clarity. This layout completely eliminates the distracting color shifts, contrast inversion, and dark spots that commonly ruin legacy display technologies.

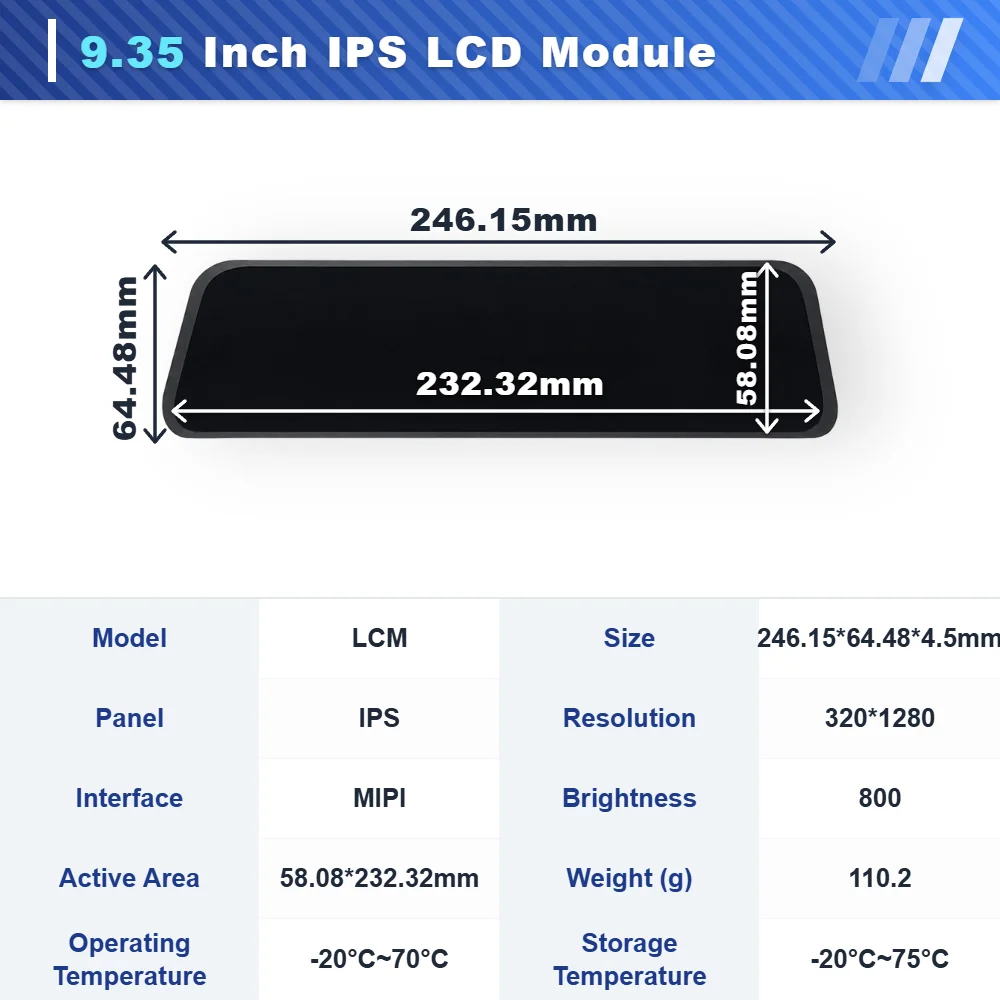

Produce Name |
9.35 inch IPS LCD Module |
Resolution |
320*1280 |
Brightness |
800 cd/m2 |
Weight |
110.2g |
Size |
246.15*64.48*7.15 mm |
Active Area |
58.08(H)*232.32 (V) mm |
Interface |
MIPI |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Application |
vehicle rearview mirror |
In modern vehicle setups and complex IoT products, handling high-resolution video streams can trigger serious electronic integration bottlenecks. Older parallel RGB or legacy LVDS display architectures require high pin counts, complicate multi-layer PCB routing, and generate unwanted electromagnetic interference (EMI) that can mess with sensitive GPS or wireless communication nodes.

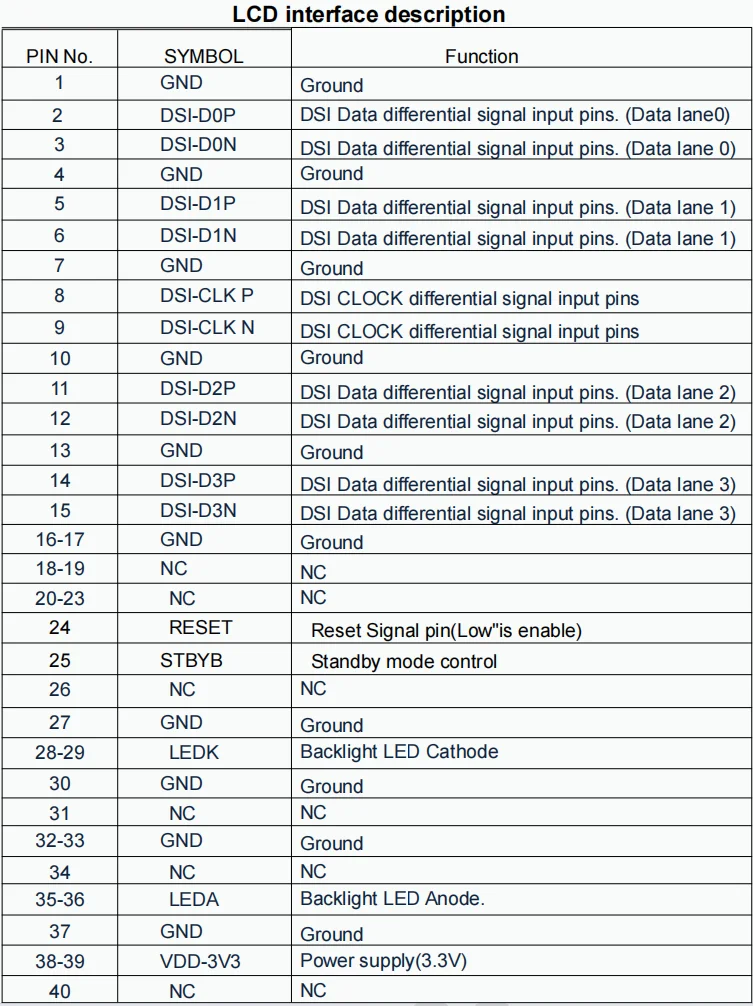

This 9.35 inch IPS TFT LCD display module cleanly bypasses these issues by integrating a high-performance MIPI interface. This industry-standard protocol utilizes low-voltage differential signaling to feed dense video packets at blazing-fast transmission speeds while maintaining a minimal power consumption footprint.
Your hardware design engineering group can easily implement real-time 60FPS video streams from external backup cameras with zero perceivable rendering latency. Furthermore, the specialized low-power consumption design prevents excessive thermal buildup within closed mirror enclosures, protecting the internal liquid crystal matrix from premature aging or thermal runaway.
The elongated bar-type form factor of this MIPI interface rearview mirror panel makes it an exceptionally versatile component for specialized transportation and advanced human-machine interfaces. Beyond its obvious primary role as a smart digital rearview terminal in passenger vehicles, this screen acts as a vital safety upgrade for heavy-duty commercial trucks, delivery vans, and logistics fleets where standard central glass mirrors are obstructed by cargo boxes.
Real-World Application Experience: Recently, a major commercial fleet upgrade integrator selected this 9.35 inch IPS TFT LCD display module to replace the legacy analog mirrors across a fleet of over 500 urban delivery vehicles. Their engineering leads confirmed that even when drivers encountered harsh morning sun glare directly striking the windshield, the high-luminance 800 nits high brightness automotive display allowed them to easily monitor blind spots without straining their eyes. The rugged design operated flawlessly throughout continuous 12-hour shifts, proving its field dependability.
For international electronic original equipment manufacturers (OEMs), product line consistency is just as important as impressive bench parameters. Sourcing a commercial screen that undergoes sudden component obsolescence creates massive supply chain disruptions and forces costly product redesign cycles. This premium 9.35 inch IPS TFT LCD display module offers excellent commercial value, coming with a guaranteed product life cycle exceeding 5 years, protecting your production timelines and your development budget. Designed to survive in demanding real-world environments, the display module maintains total performance stability across an industrial-grade working temperature range spanning from -20°C up to 70°C, and storage thresholds ranging from -30°C to 80°C.
By channeling your hardware procurement through WEITAI, your development group establishes a direct partnership with a world-class manufacturing powerhouse certified under IATF16949, ISO9001, and ISO14001 quality frameworks. Operating fully automated fabrication facilities managed by real-time MES and ERP logistical software, WEITAI maintains complete vertical integration over the entire production cycle—from high-yield glass cutting and precision automated COG/FOG bonding to customized high-nit backlight assembly and cleanroom optical lamination. This end-to-end oversight gives your project a resilient, flexible, and scalable display supply chain capable of fueling your global market expansion.
