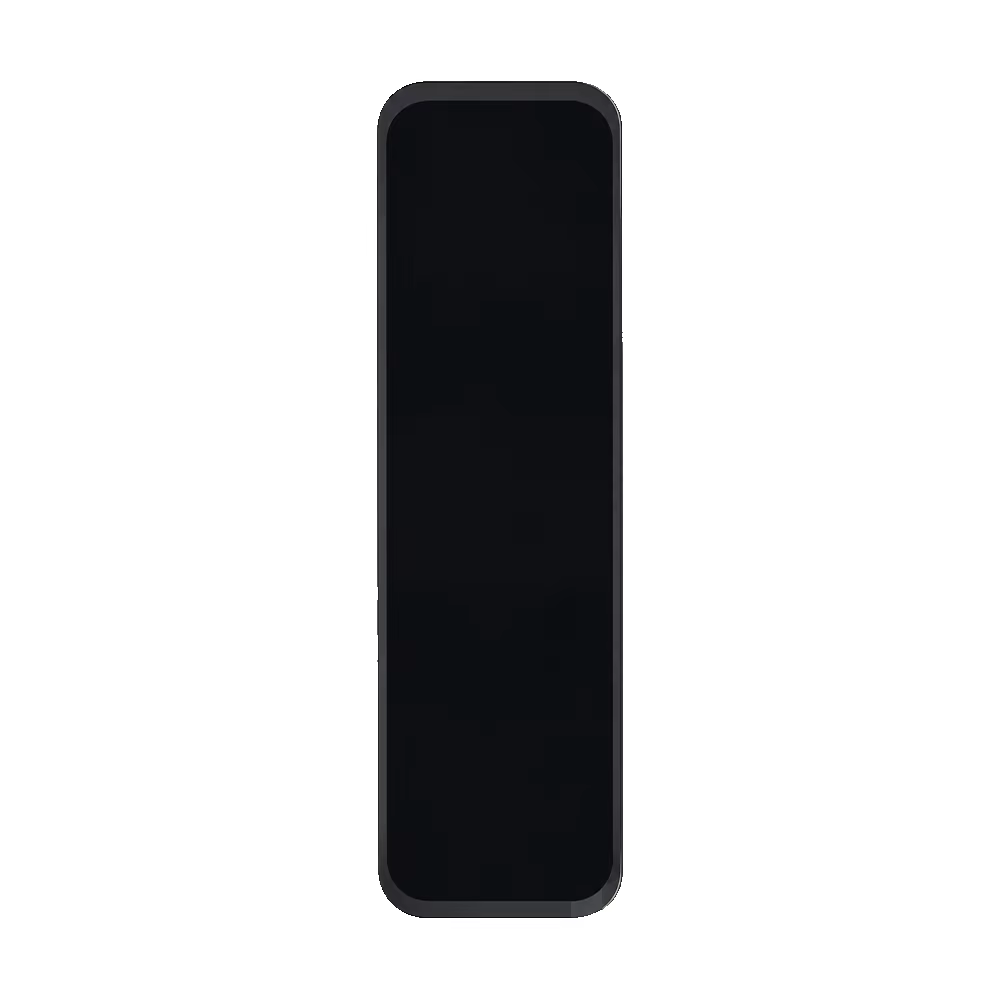

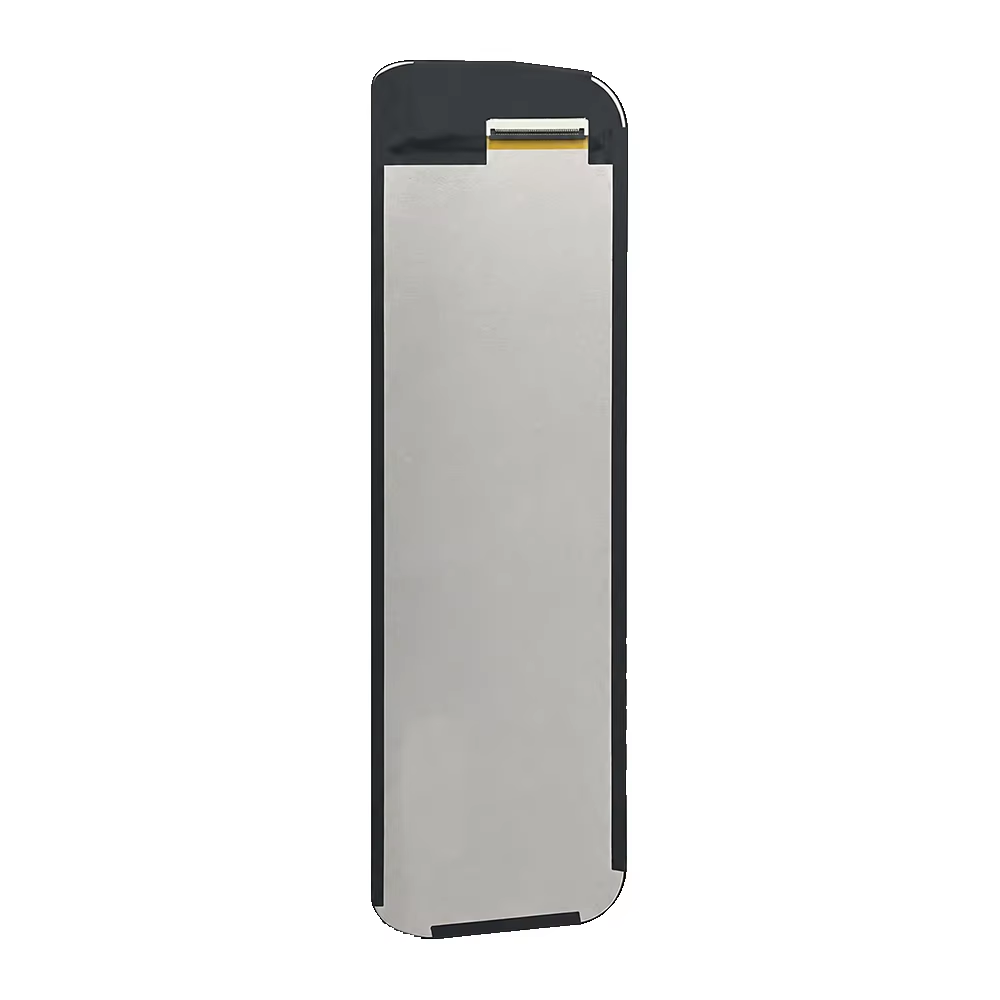

The automotive landscape is shifting rapidly, and standard displays no longer meet the demands of modern vehicular cockpits. The custom 9.66 inch IPS TFT LCD screen module represents a major step forward in vehicle-mounted display engineering, meticulously tailored for electronic streaming media rearview mirrors and central smart home interfaces. Built with a distinctive 480x1920 ultra-wide aspect ratio, this bar-type panel provides a panoramic field of view that successfully eliminates dangerous blind spots inherent in traditional glass mirrors. Weighing just 98.1 grams with a sleek profile of 245.6 x 64.38 x 7.15 mm, it gives automotive Tier-1 suppliers and aftermarket OEM brand owners the flexibility to integrate a high-definition screen into tight mirror housings without altering the vehicle's structural windshield layout.
When engineering components for automotive visual safety, optical performance under harsh ambient light becomes the ultimate benchmark. This custom 9.66 inch IPS TFT LCD screen module addresses this challenge directly with a specialized backlight structure delivering a striking 1500 cd/m² high brightness LCD output. This extreme luminance ensures a crisp, high-contrast visual display even under direct midday sunlight or through high-glare windshield reflections. By utilizing true In-Plane Switching technology, the active display zone offers a full 178-degree viewing angle across its surface area. This wide optical alignment prevents color shifting, contrast degradation, or grayscale inversion, giving drivers immediate and reliable situational awareness of the rear traffic environment.

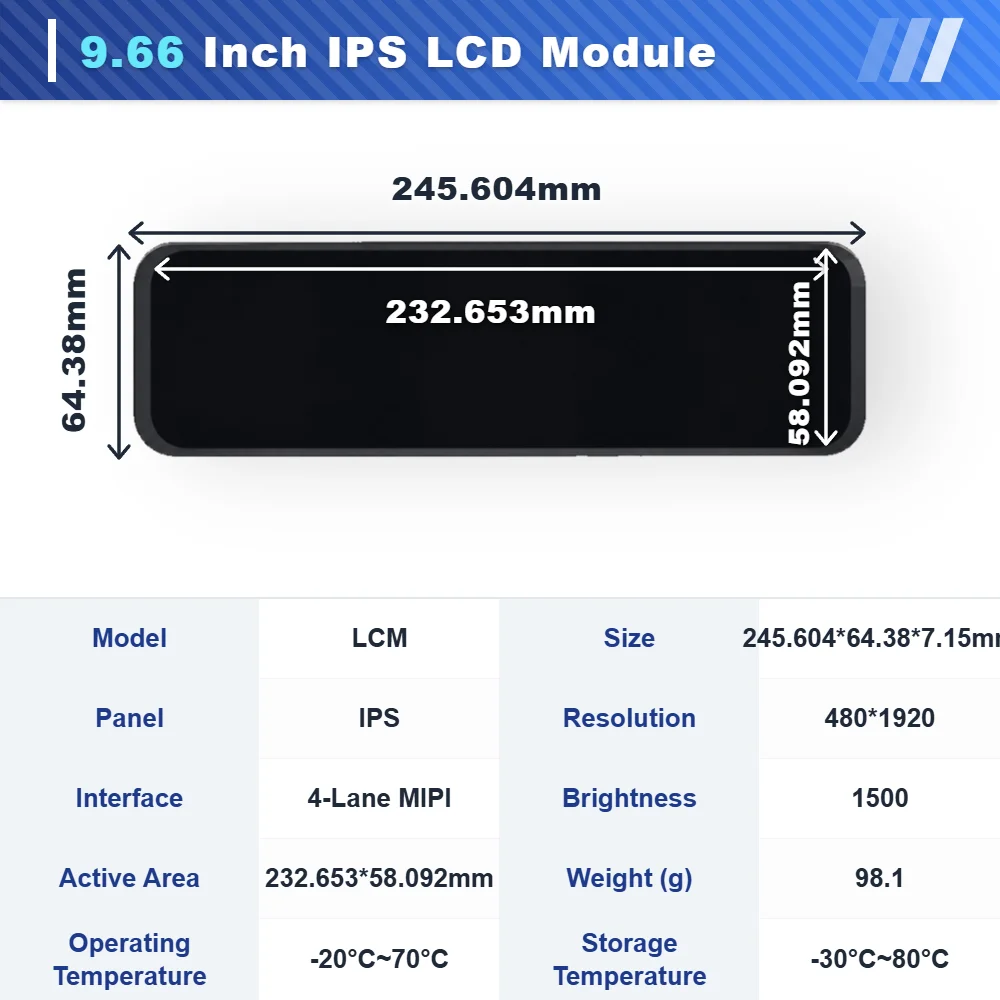

Designed to handle low-latency real-time video feeds with zero stutter, this 480x1920 resolution display features a robust 4-Lane Mobile Industry Processor Interface. The 4-Lane MIPI layout minimizes overall electromagnetic interference while vastly expanding data bandwidth—a technical necessity for processing uncompressed, high-frame-rate digital video signals from external high-definition backup cameras. Engineered to survive harsh cabin environments, this industrial-grade liquid crystal display operates flawlessly within a wide temperature window of -20°C to 70°C and withstands storage temperatures from -30°C to 80°C. For engineering teams evaluating component integration, the precise physical and optical parameters are outlined below:
Product Nomenclature: WEITAI Custom 9.66 Inch IPS TFT LCD Screen Module
Native Pixel Resolution: 480 × 1920 Pixels
Peak Display Luminance: 1500 cd/m²
Active Display Area (WxH): 232.653 mm × 58.092 mm
Physical Module Dimensions: 245.6 mm × 64.38 mm × 7.15 mm
Total Component Net Weight: 98.1 g
Hardware Interface Configuration: 4-Lane MIPI Layout
Operational Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +80°C
Produce Name |
9.66 inch IPS LCD Module |
Resolution |
480*1920 |
Brightness |
1500 cd/m2 |
Weight |
98.1 g |
Size |
245.6*64.38*7.15 mm |
Active Area |
232.653 (H) x 58.092 (V) |
Interface |
4-Lane MIPI |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Application |
Automotive display/Smart Home |
Through comprehensive real-world road evaluations and diverse client implementations, this streaming media rearview mirror monitor has established a strong reputation for structural durability. During critical client Engineering Validation Tests and Design Validation Tests, field engineers worked closely to counter vehicle vibration resonance by reinforcing the integrity of the COG and FOG bonding points. Whether confronting the relentless road vibrations of long-haul commercial trucks or the extreme temperature shifts of passenger vehicles left out in freezing winters or scorching summers, this bar-type vehicle display panel retains its structural alignment. This proven track record helps B2B buyers bypass unexpected redesign hurdles, accelerating the transition from initial prototype to final Production Validation Testing.

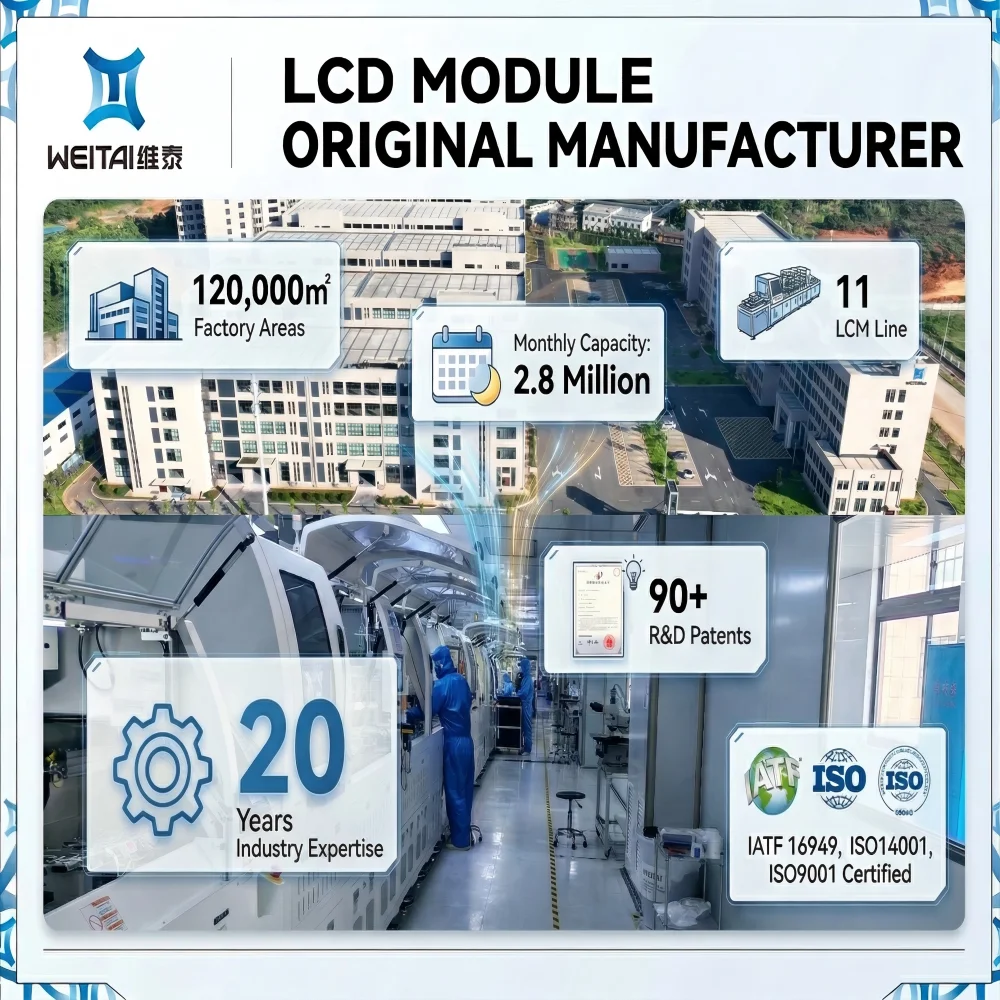

Procuring electronic components for global automotive programs requires highly disciplined vendor auditing and long-term manufacturing stability. WEITAI manages fully automated fabrication facilities running synchronized ERP and MES software infrastructure, executing full control over the complete production cycle—from high-precision glass cutting and terminal bonding to specialized backlight assembly. Holding IATF16949, ISO9001, and ISO14001 operational certifications, every single custom 9.66 inch IPS TFT LCD screen module undergoes rigorous automated optical inspection sequences before it leaves the warehouse. Backed by an annual manufacturing throughput exceeding 30 million units, WEITAI provides reliable OEM and ODM customization services along with a guaranteed product availability lifecycle of over 5 years, shielding your program from unexpected component obsolescence risks.
