Ultra-Wide Panoramic Visuals for High-End Digital Rearview Systems

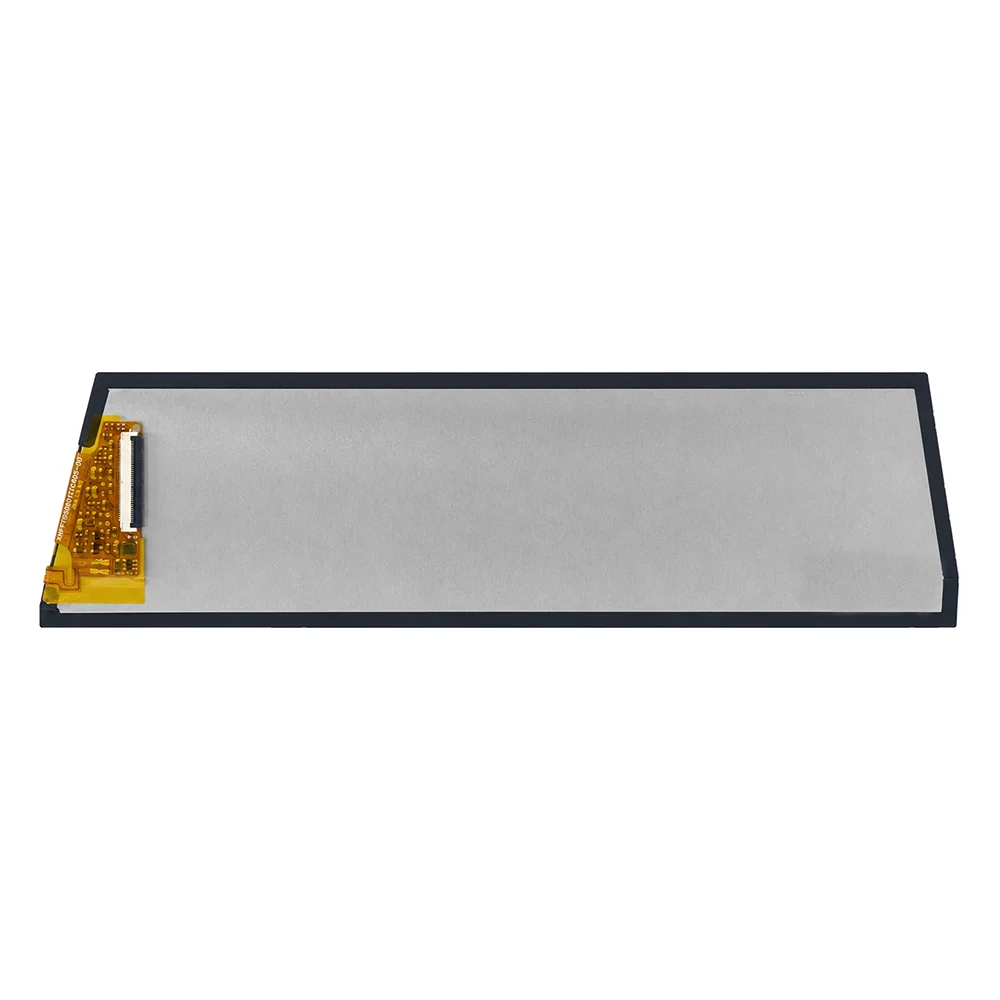

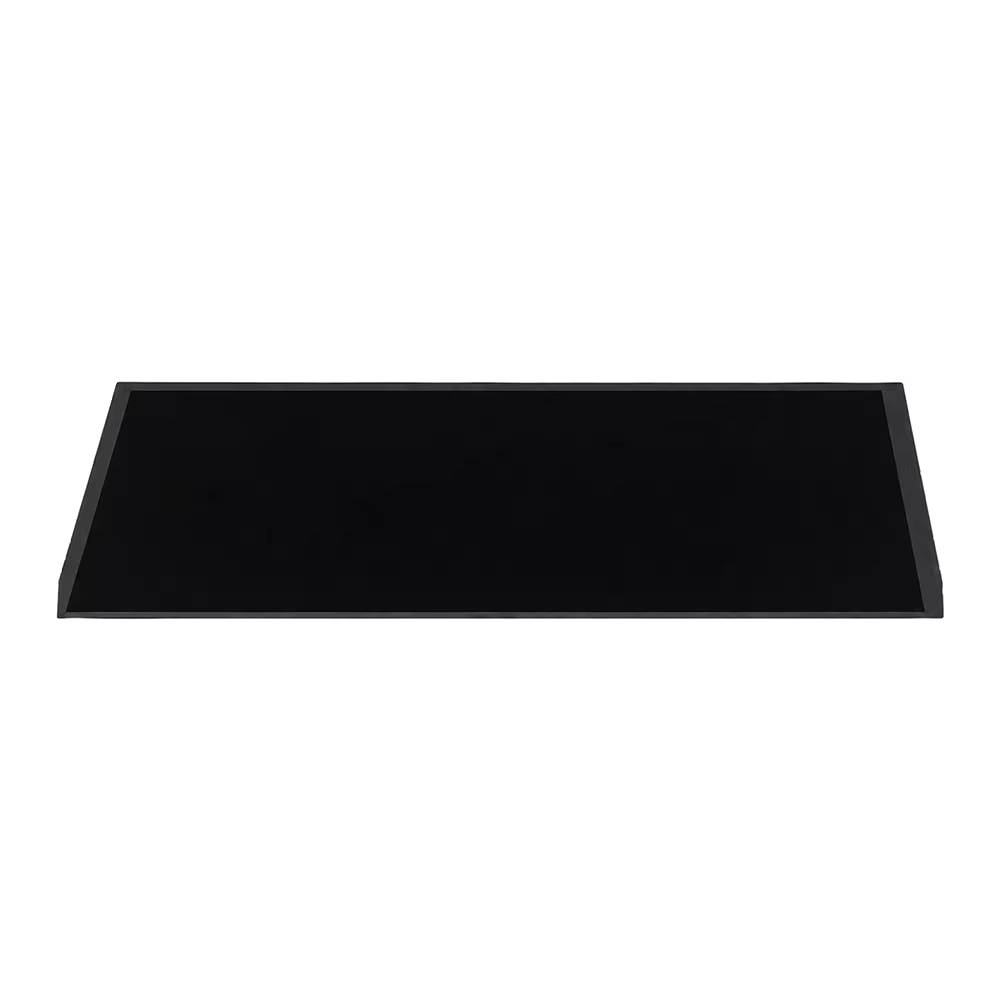

In the fast-paced world of automotive safety upgrades, the 9.88 Inch IPS TFT LCD Screen Module has become a cornerstone for developers of premium streaming mirrors. Unlike standard displays that restrict the driver’s perspective, this 9.88 Inch IPS TFT LCD Screen Module with 4-Lane MIPI Interface provides an immersive, panoramic view with a native 400x1600 Resolution. This specific stretched-bar aspect ratio is meticulously engineered to fit the ergonomic requirements of a Vehicle Rearview Mirror, offering a significantly wider field of vision compared to traditional glass mirrors. By integrating this IPS TFT LCD Screen Module, manufacturers can effectively eliminate blind spots that have plagued heavy-duty vehicles and luxury SUVs for decades. The ultra-slim 221.9 x 65.52 x 6.85 mm profile ensures a seamless flush-mount installation, maintaining the sleek interior aesthetics that modern car buyers demand while providing a massive 58.92(H) x 240.00(V) mm active area for crystal-clear rear monitoring.
Next-Level Connectivity with 4-Lane MIPI Interface Precision
From a hardware engineering standpoint, the integration of a 4-Lane MIPI Interface is what truly sets this 9.88 Inch IPS TFT LCD Screen Module apart from entry-level alternatives. When dealing with high-definition video feeds from rear-facing cameras, bandwidth is everything. The 4-Lane MIPI Interface provides the necessary throughput to handle raw data without the lag or compression artifacts that could compromise a driver's reaction time. We understand that in an Automotive display environment, a delay of even a few milliseconds is unacceptable. This high-speed interface on the 9.88 Inch IPS TFT LCD Screen Module ensures a direct, low-latency link between the image processor and the 400x1600 Resolution panel. During our internal EVT and DVT testing phases, this configuration demonstrated superior signal integrity and drastically reduced electromagnetic interference (EMI), which is crucial for maintaining the performance of nearby GPS and ADAS sensors.
Size |
Part No. |
Resolution |
Active Area （mm） |
Brightness
(cd/㎡）
|
Interface |
Op. Temp. |
0.99'' |
WTLCMB0099S02029-AN |
128*115 |
24.36*21.89 |
300 |
SPI |
-10°C~60°C |
1.66'' |
WTTCMI0166S02085-AN |
400*400 |
39.84*39.84 |
230 |
QSPI |
-20°C~70°C |
2.86'' |
0316IVO-SV1 |
820*320 |
65.65*26.4 |
550 |
MIPI |
-20°C~80°C |
3.0'' |
JL-030HSD10-SV1-VTS |
102*102 |
36.72*65.28 |
400 |
MIPI |
-20°C~70°C |
3.08'' |
WTTCMI0308S40189-DN |
432*928 |
33.05*70.99 |
330 |
RGB |
-20°C~70°C |
3.99'' |
WTLCMB0399S08042-AN |
400*960 |
39.18*94.03 |
300 |
MIPI |
-20°C~70°C |
4.39'' |
WTLCMB0439S10140-AN |
360*640 |
53.56*95.23 |
350 |
RGB |
-20°C~60°C |
5.98'' |
WTLCMI0598G18172-LN |
640*1280 |
67.97*135.9 |
1250 |
4-Lane LVDS |
-30°C~85°C |
6.80'' |
WTLCMI0680S12138-BN |
480*1280 |
60.22*160.59 |
580 |
MIPI |
-20°C~70°C |
6.86'' |
WTLCMI0686S12177-AN |
480*1280 |
60.22*160.58 |
400/500/1000 |
MIPI/4-Lane MIPI |
-20°C~70°C |
7.84'' |
HWTL078401G15-24MR |
400*1280 |
59.40*190.08 |
500/800 |
RGB/MIPI/4-Lane MIPI |
-20°C~70°C |
8.10'' |
WTLCMB0810G16165-KN |
600*1600 |
72.23*192.62 |
500/1000 |
RGB/MIPI |
-20°C~70°C |
8.90'' |
WTLCMB0890H24089-BN |
1920*720 |
211.68*79.38 |
500 |
LVDS |
-20°C~70°C |
9.16'' |
WTLCMB0916S14001-FN |
462*1920 |
54.44*226.25 |
400/450/500/1000 |
MIPI/4-Lane MIPI |
-20°C~70°C |
9.20'' |
WTL092001G01-32M |
1920*384 |
224.64*44.92 |
2500 |
LVDS |
-30°C~85°C |
9.31'' |
WTTCMB0931S18198-AN |
600*1600 |
82.94*221.18 |
450/500 |
MIPI |
-20°C~70°C |
9.36'' |
WTLCMI0936G14137-KN |
320*1280 |
58.08*232.32 |
500 |
2-Lane MIPI/4-Lane MIPI |
-20°C~70°C |
9.6'' |
WTLCMB0930G14043-GN |
320*1280 |
58.08*232.32 |
450/500/750/800/1000 |
MIPI/4-Lane MIPI |
-20°C~70°C |
9.66'' |
WTLCMI0966F24010-AS |
480*1920 |
58.09*232.6 |
800/1500 |
4-Lane MIPI |
-20°C~70°C |
9.88'' |
WTL098802G03-24M_IVO |
400*1600 |
32.76*240 |
420/800 |
MIPI/4-Lane MIPI |
-20°C~70°C |
10.11'' |
WTLCMB1011S16006-UN |
440*1920 |
57.94*252.86 |
500/1000/1500 |
RGB/MIPI/4-Lane MIPI |
-20°C~70°C |
10.16'' |
WTTCMB1016I18206-BN |
600*1600 |
90.61*241.63 |
400 |
MIPI |
-20°C~70°C |
11.12'' |
WTLCMI1166F18001-BA |
380*1920 |
58.14*276.48 |
550/700 |
MIPI/4-Lane MIPI |
-20°C~70°C |
15.6'' |
WTLCMN1560I54078-AN |
1920*1080 |
344.16*193.5 |
250 |
eDP |
-10°C~60°C |

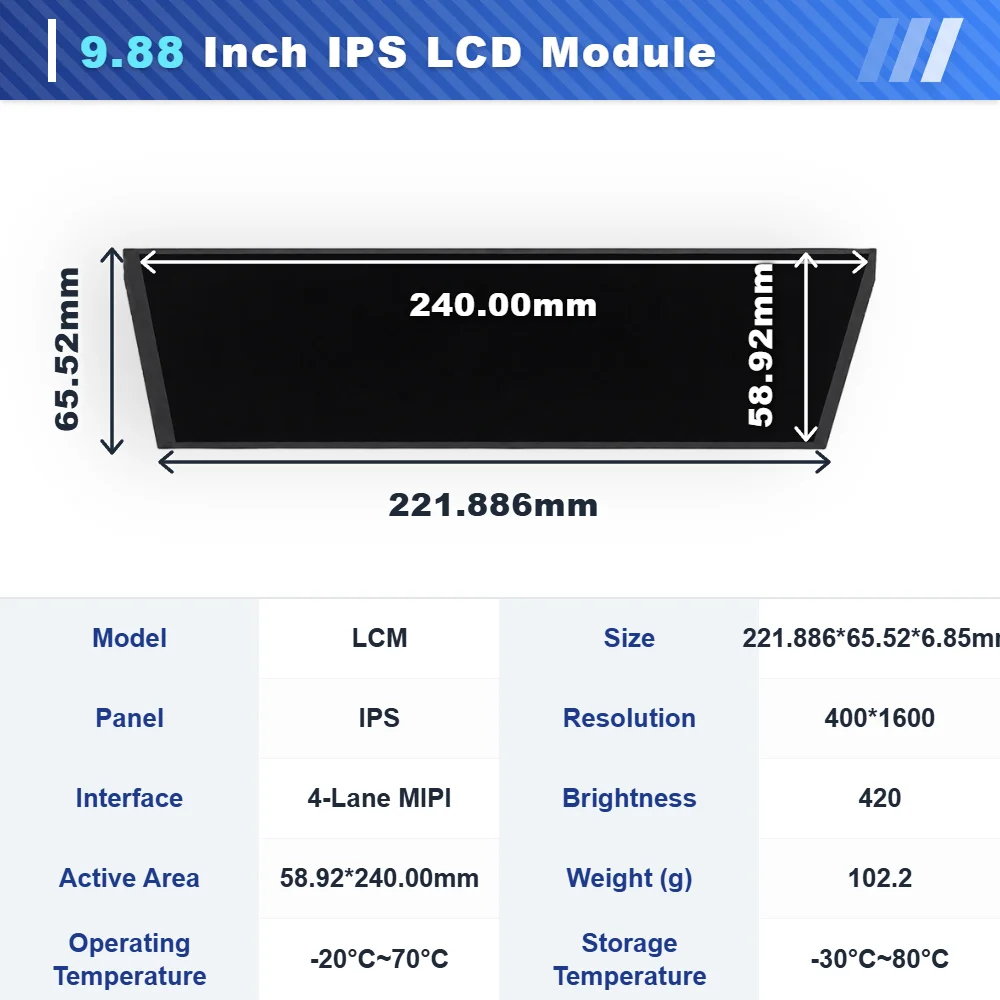

Produce Name |
9.88 inch IPS LCD Module |
Resolution |
400*1600 |
Brightness |
420 cd/m2 |
Weight |
102.2 g |
Size |
221.9*65.52*6.85 mm |
Active Area |
58.92(H) x 240.00(V) mm |
Interface |
4-Lane MIPI |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Application |
vehicle rearview mirror |
Ruggedized Engineering for Stable Performance in Automotive Extremes
Automotive components must be resilient enough to handle more than just road vibrations; they must survive extreme thermal cycles. This 9.88 Inch IPS TFT LCD Screen Module is built to perform in the harshest climates, boasting a wide Working temperature -20°C~70°C and an even more robust storage range. At WEITAI, we utilize high-transmittance liquid crystal materials that prevent the "blackening effect" commonly caused by prolonged exposure to direct solar radiation—a frequent issue for components mounted near the windshield. The structural layout of the 9.88 Inch IPS TFT LCD Screen Module with 4-Lane MIPI Interface is reinforced to withstand consistent mechanical stress, ensuring that the 400x1600 Resolution remains stable without flickering or pixel failure over the long term. This durability significantly lowers the total cost of ownership for fleet operators by minimizing maintenance downtime and maximizing the life cycle of the streaming mirror system.
Accelerating Smart Cabin Innovation and Fleet Safety ROI
The commercial value of adopting the 9.88 Inch IPS TFT LCD Screen Module extends far beyond its impressive technical specifications. In a recent case study involving a long-haul logistics fleet, upgrading to digital mirrors powered by our 400x1600 Resolution modules led to a measurable 30% reduction in side-swipe accidents over a 12-month period. For B2B buyers and system integrators, this 9.88 Inch IPS TFT LCD Screen Module with 4-Lane MIPI Interface serves as a powerful marketing asset that justifies a higher retail price point for the end product. Furthermore, the IPS TFT LCD Screen Module allows for the integration of intelligent overlays, such as blind-spot warnings and parking guidelines, directly onto the 4-Lane MIPI Interface video stream. This versatility makes it an ideal choice for both OEM factory-installed systems and high-end aftermarket upgrades, ensuring a rapid return on investment through enhanced safety.
Unmatched Manufacturing Integrity and Global Supply Chain Depth
Partnering with WEITAI means tapping into over 20 years of vertical industry expertise and a rock-solid manufacturing foundation. As a national "Specialized & Sophisticated" enterprise, WEITAI controls every critical step of the production process, from precision glass cutting to advanced COG/FOG bonding and full-lamination assembly. Our fully automated production lines are synchronized via ERP and MES systems to ensure that every 9.88 Inch IPS TFT LCD Screen Module meets the stringent IATF16949 and ISO9001 quality standards. With a massive annual capacity of 30,000,000 pieces, WEITAI has the industrial muscle to scale from initial sample orders to high-volume global rollouts. By choosing WEITAI, you are securing a strategic supply chain partner dedicated to a 5-year+ product life cycle and continuous engineering support to turn a conceptual UI into a world-class physical product.
