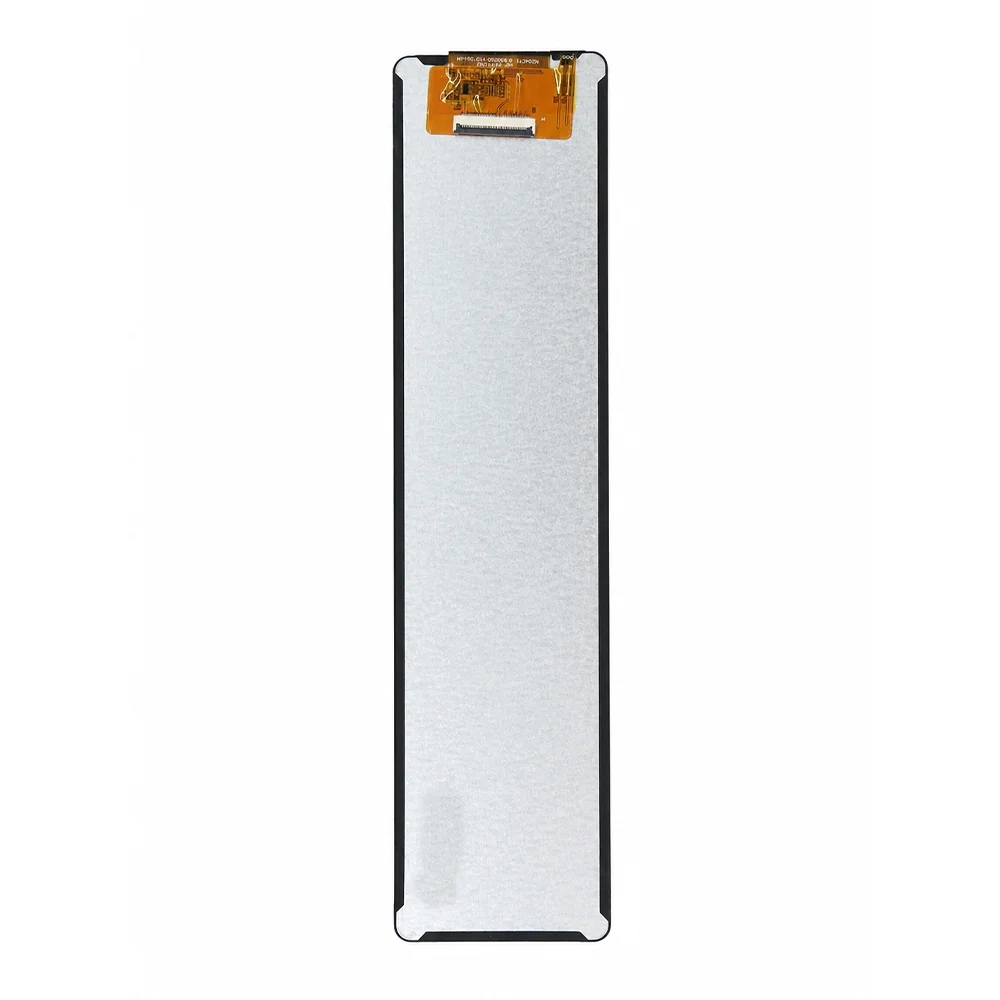

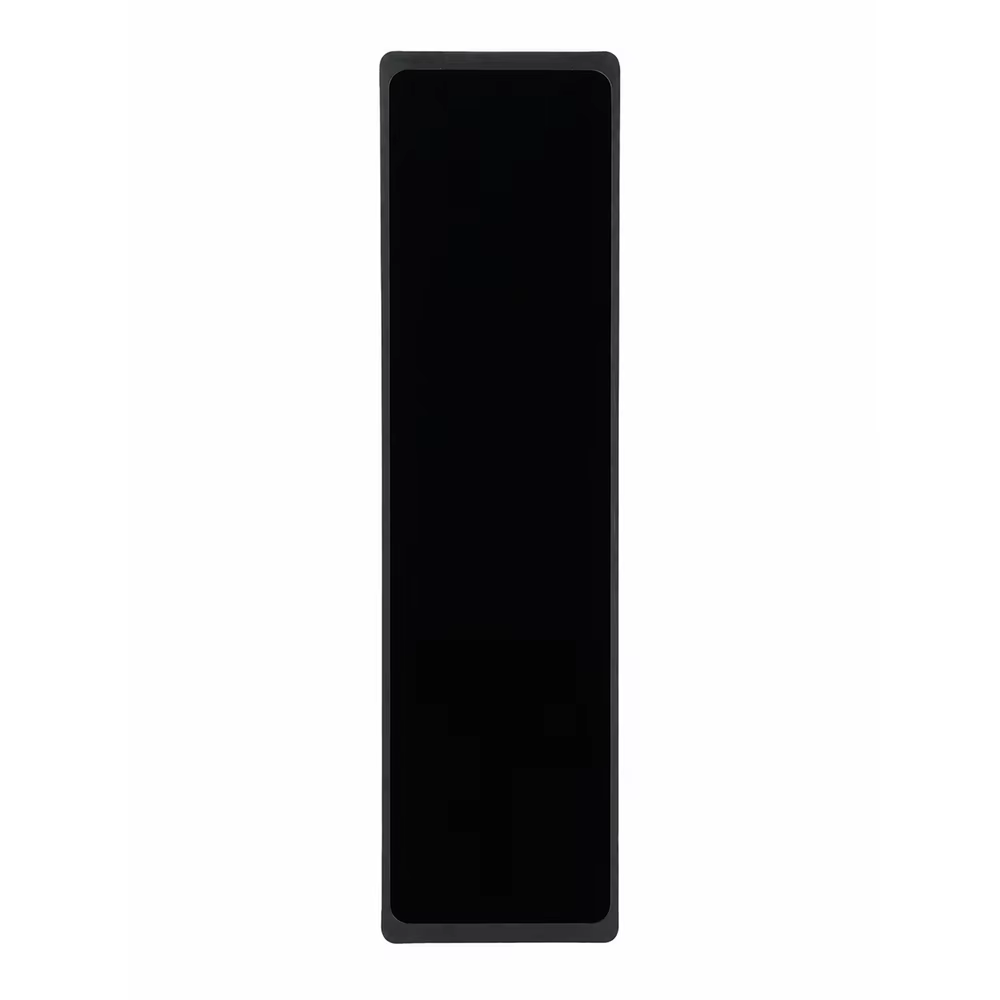

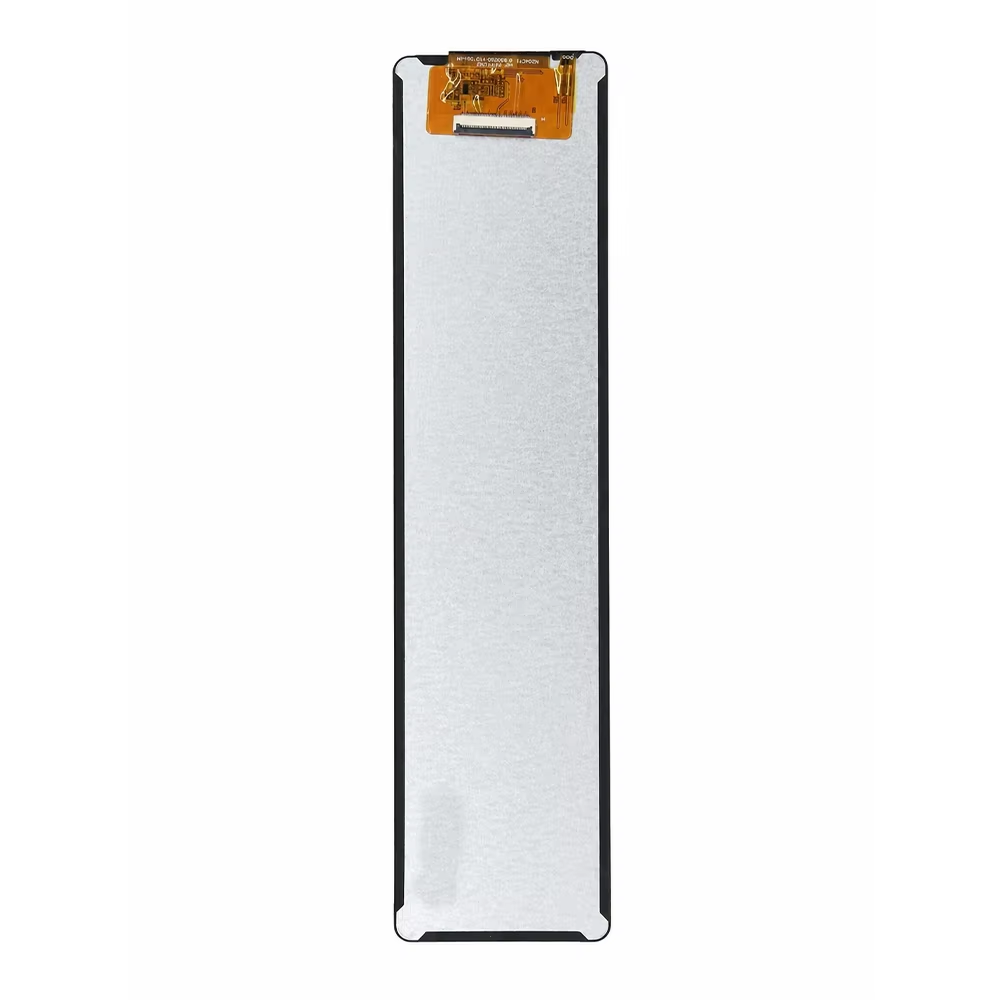

The push for smarter vehicle cockpits and slicker smart home setups means traditional 4:3 or 16:9 screens just won’t cut it anymore. That is exactly where this WeiTai factory custom 10.11 inch IPS TFT LCD screen module comes into play. Featuring a highly specialized 440x1920 resolution MIPI interface display configuration, this unique bar-type vehicle display panel is built to maximize vertical or horizontal visual data in tight, narrow spaces. Weighing in at 136.9 grams with a remarkably slim depth profile of just 4.55 mm, it allows tier-1 automotive designers and premium home automation brands to integrate a heavy-duty, high-definition digital interface seamlessly. This stretched liquid crystal display component fits right into advanced stream media rearview electronics, specialized dashboard clusters, or elegant smart home control housings without forcing any messy structural overhauls.
When you are rolling out a premium vehicle display or an indoor hub positioned right next to large windows, dealing with blinding ambient light is always a massive headache. This particular WeiTai factory custom 10.11 inch IPS TFT LCD screen module knocks that issue out of the park by combining a staggering 1500 cd/m² high brightness LCD edge-side 1-LED lighting bar architecture with a native Normally Black display mode. Boasting a rich palette of 16.7 million display colors and an ultra-precise RGB vertical stripe pixel arrangement, the visual clarity remains incredibly punchy and sharp even under intense midday sun. Thanks to In-Plane Switching technology, users get an uninterrupted 178-degree wide viewing angle across the whole 57.948 x 252.864 mm active area, guaranteeing zero color shifting, contrast degradation, or annoying grayscale inversion when viewed off-axis.
Handling high-frame-rate, zero-latency streaming requires a fast pipeline, and this 440x1920 resolution MIPI interface display answers the call with a highly efficient Mobile Industry Processor Interface layout. By opting for a native MIPI connection, hardware engineers can easily maintain high data bandwidth for live video feeds while keeping electromagnetic interference and power consumption down to an absolute minimum. Built to take a beating from harsh seasonal climates, this rugged high-definition automotive display module operates flawlessly from a freezing -20°C all the way up to a blistering 70°C, and handles storage conditions ranging from -30°C to 80°C. For development teams currently working on hardware schematics, the exact technical and structural specifications are laid out below:
Product Title: WeiTai Factory Custom 10.11 Inch IPS TFT LCD Screen Module
Active Matrix Resolution: 440 × 1920 Pixels
Peak Surface Brightness: 1500 cd/m²
Active Viewing Field (HxV): 57.948 mm × 252.864 mm
Physical Outline Dimensions: 266 mm × 64.78 mm × 4.55 mm
Total Module Weight: 136.9 g
Pixel Configuration: RGB Vertical Stripe Layout
Color Depth Capacity: 16.7M Colors (True 8-Bit)
Data Interface Type: High-Speed MIPI Layout
Thermal Operational Envelope: -20°C to +70°C
Thermal Storage Envelope: -30°C to +80°C
Produce Name |
10.11 inch IPS LCD Module |
Resolution |
440*1920 |
Brightness |
1500 cd/m2 |
Weight |
136.9g |
Size |
266*64.78*4.55 mm |
Active Area |
57.948(H)*252.864 (V) mm |
Pixel Arrangement |
RGB Vertical stripe |
Pixel Pitch |
43.9(H)×3×131.7(V) mm |
Number Of Pixels |
440(H) ×1920(V) pixels (1 pixel = R + G + B dots) |
Display Mode |
Normally Black |
Display Colors |
16.7M |
Interface |
MIPI |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Back-light |
Edge side, 1-LED Lighting Bar Type |
Application |
Automotive display/Smart Home |
This rugged bar-type vehicle display panel has already clocked extensive real-world mileage across challenging environments. During a recent deployment phase for a prominent commercial fleet tracking system, initial prototyping ran into severe display flickering caused by the intense diesel engine vibration profiles of long-haul trucks. Working closely with the client's integration team through the EVT and DVT milestones, engineering experts fine-tuned the structural integrity of the COG and FOG bonding pads. By reinforcing these critical connections, the stretched liquid crystal display component sailed right through the final PVT run, demonstrating absolute pixel stability and uncompromised structural endurance under continuous, heavy thermal cycling. This practical field reliability means B2B buyers can sidestep costly design dead-ends and fast-track their time-to-market.
Securing sensitive electronic parts for long-term production programs means you need a vendor who actually controls their own manufacturing floor. WEITAI operates completely automated fabrication facilities driven by advanced ERP and MES software setups, taking care of every single step in house—from the initial high-precision glass cutting and automated COG/FOG terminal bonding to complete backlight creation and sophisticated full-lamination optical treatments. Holding global quality benchmarks like IATF16949, ISO9001, and ISO14001, every batch of this WeiTai factory custom 10.11 inch IPS TFT LCD screen module undergoes thorough automated optical inspection before hitting the shipping dock. With an annual manufacturing capacity scaling past 30 million display units, WEITAI delivers a highly dependable OEM and ODM pipeline along with a guaranteed component lifecycle of over 5 years to keep your production lines moving without unexpected EOL disruptions.
