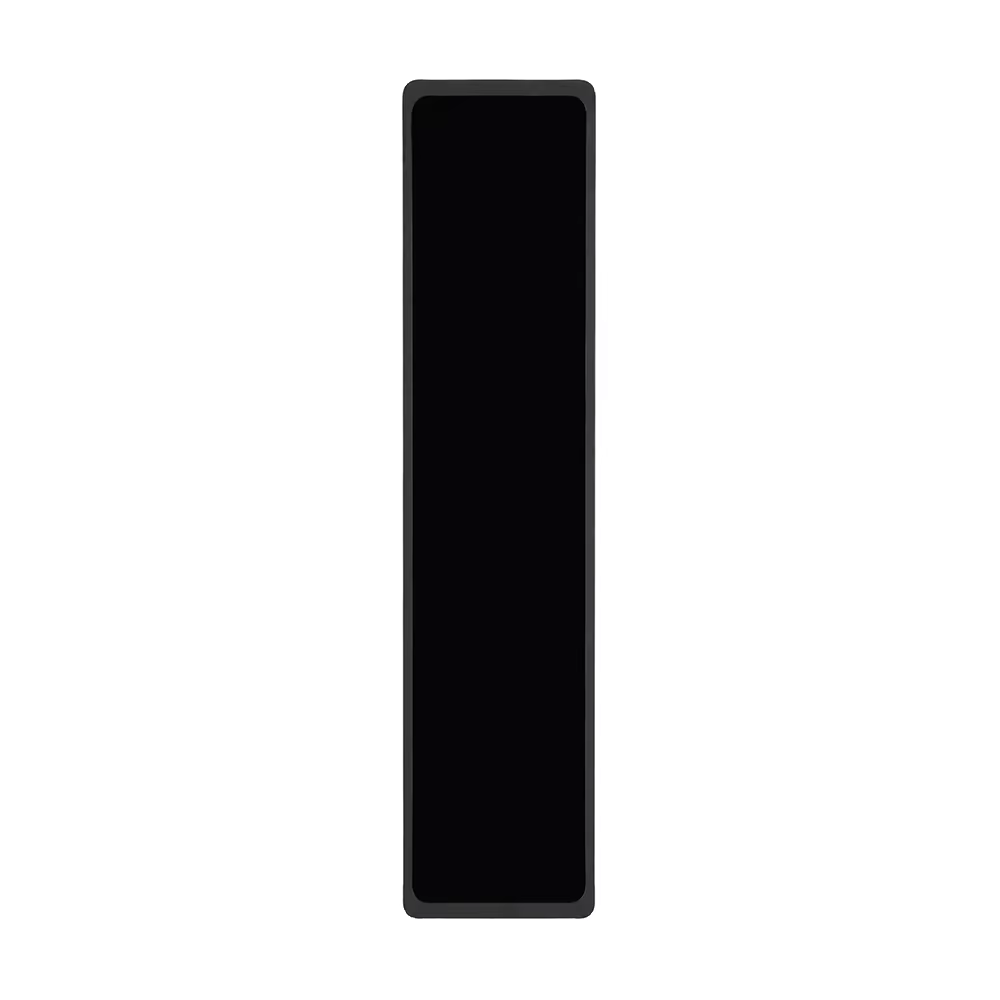

Designing human-machine interfaces for modern smart homes and streamlined vehicle interiors frequently challenges hardware engineers to break free from traditional 4:3 or 16:9 aspect ratios. This premium 10.11 inch IPS TFT LCD screen module represents the cutting edge of non-standard, ultra-narrow layout displays.

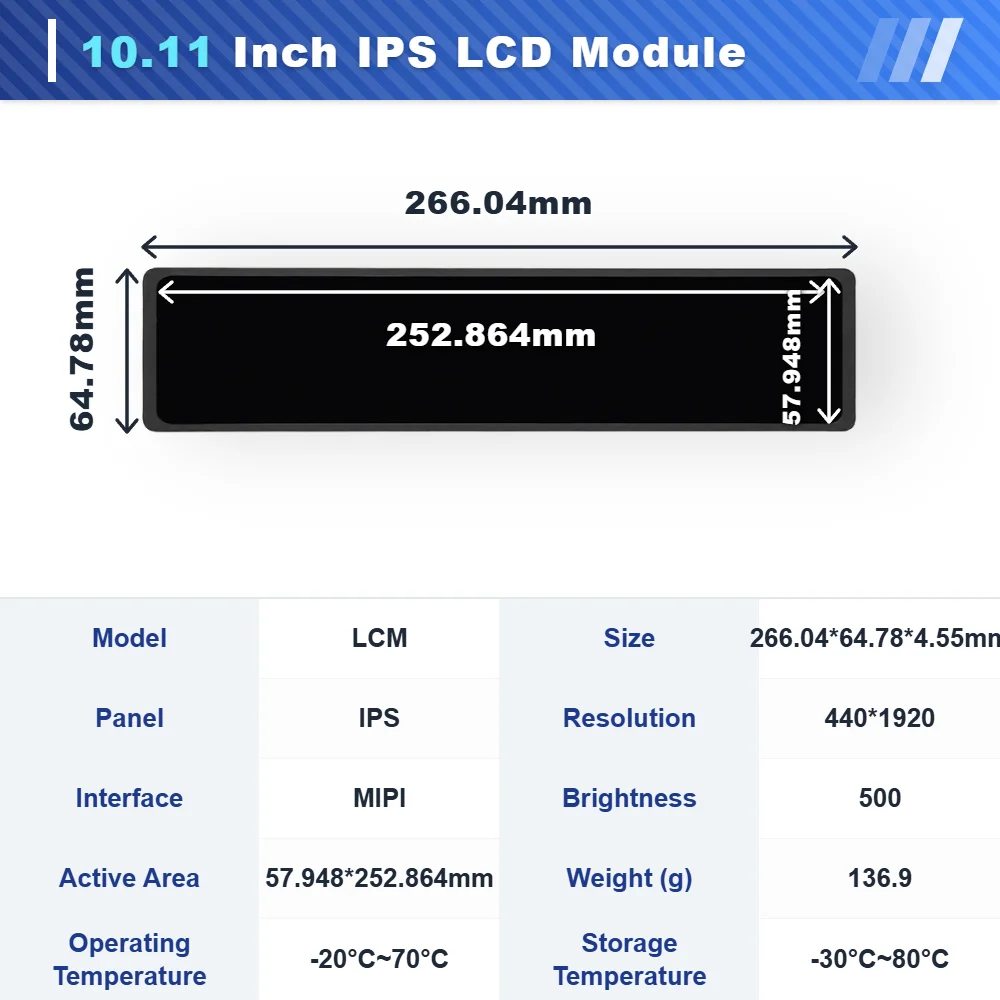

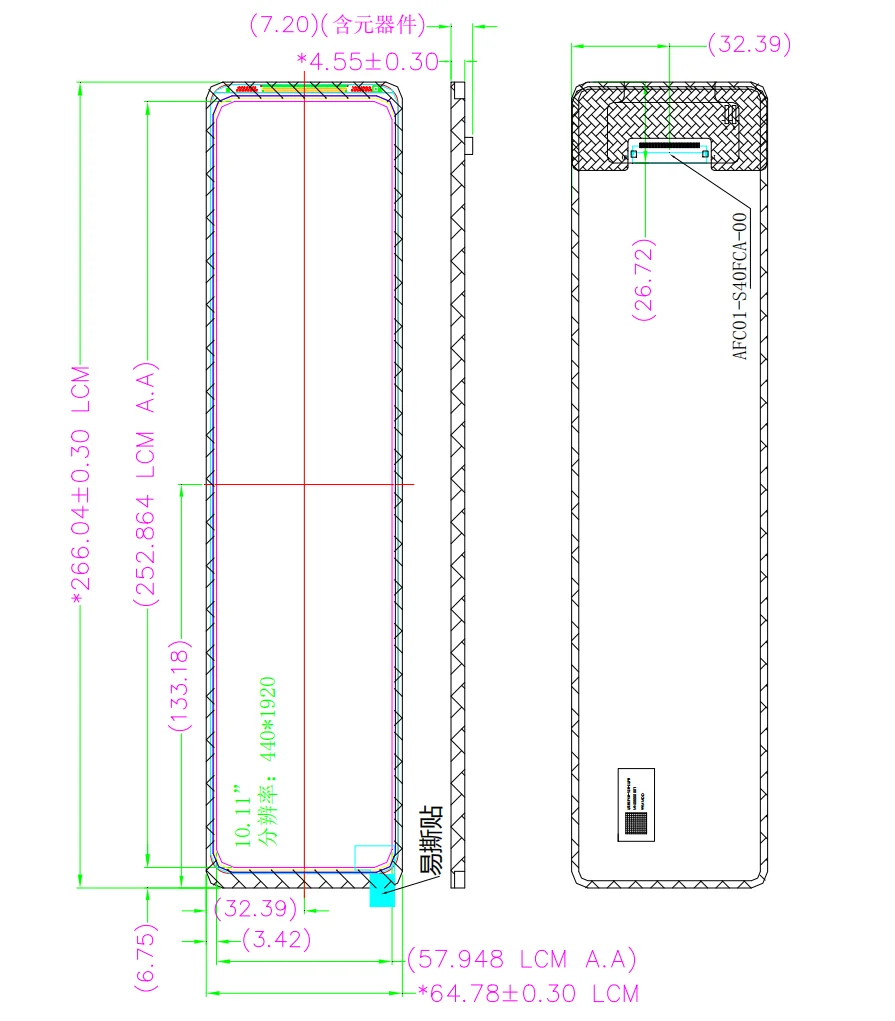

Engineered with an incredible portrait configuration delivering a native 440x1920 resolution, this custom stretched layout panel features unique physical dimensions of 266 x 64.78 x 4.55 mm. For hardware procurement executives and product architects, its ultra-slim profile offers the rare mechanical advantage of slipping into:
Tight vertical wall niches and smart home control recesses
Narrow automotive dashboard configurations
Horizontal panoramic overhead consoles
Weighing only 136.9g, its lightweight construction significantly minimizes strain on mounting brackets, making the overall physical assembly process highly efficient, safe, and secure for mass production rollouts.
When integrating an unusual bar display into consumer appliances or industrial dashboards, true-to-life color reproduction and uncompromised visibility from off-axis angles are critical. This exceptional 440x1920 bar type display utilizes native premium In-Plane Switching (IPS) crystal structures coupled with a Normally Black display mode. This sophisticated combination ensures deep, rich contrast levels and completely eliminates the color shifting or inversion that routinely ruins the user experience on older TN panels.

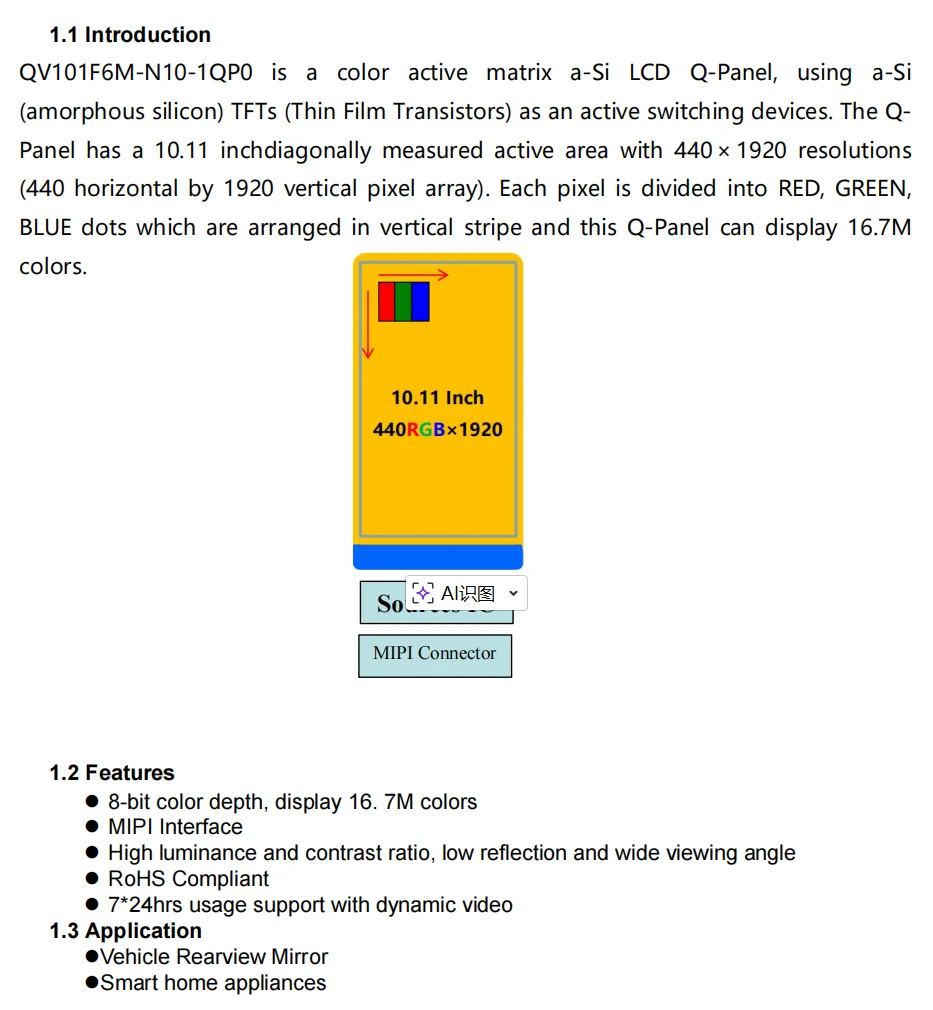

With an exact active display area of 57.948(H) x 252.864(V) mm and an RGB vertical stripe pixel arrangement, your graphic user interfaces, system typography, and real-time diagnostic text blocks will remain incredibly sharp. Capable of rendering 16.7M vibrant colors, the display ensures your graphics look exactly as your UI designers intended. Driven by a stable 500 cd/m² brightness rating, the module provides superb legibility across an ultra-wide 178-degree viewing angle, ensuring perfect readability under shifting ambient indoor lights or overhead cockpit environments.
Produce Name |
10.11 inch IPS LCD Module |
Resolution |
440*1920 |
Brightness |
500 cd/m2 |
Weight |
136.9g |
Size |
266*64.78*4.55 mm |
Active Area |
57.948(H)*252.864 (V) mm |
Pixel Arrangement |
RGB Vertical stripe |
Pixel Pitch |
43.9(H)×3×131.7(V) mm |
Number Of Pixels |
440(H) ×1920(V) pixels (1 pixel = R + G + B dots) |
Display Mode |
Normally Black |
Display Colors |
16.7M |

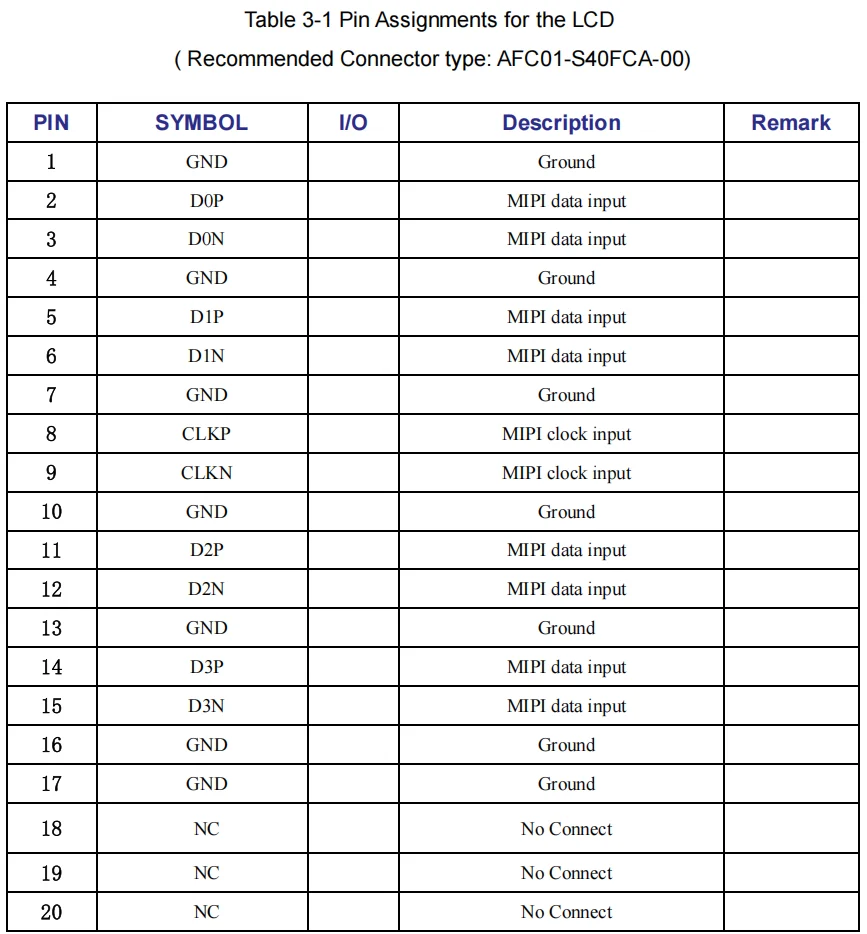

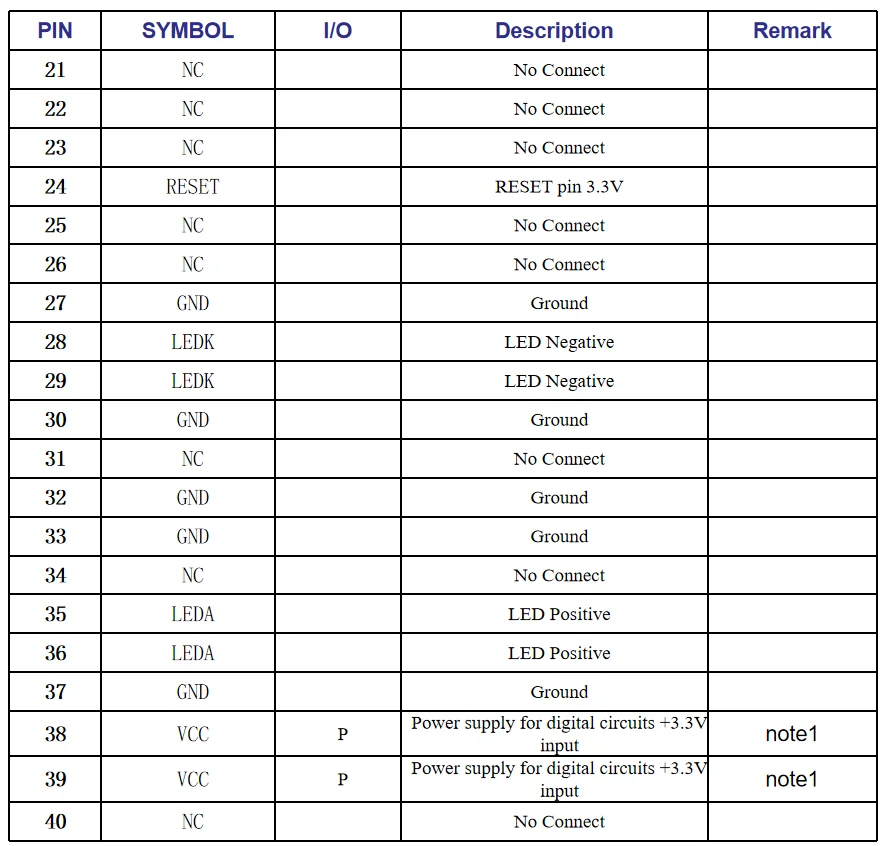

Interface |
MIPI |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Back-light |
Edge side, 1-LED Lighting Bar Type |
Application |
Automotive display/Smart Home |
Modern smart equipment applications demand fast refresh rates and instantaneous UI feedback, but legacy MCU or parallel RGB display interfaces often fail because they require excessively high pin counts and produce problematic electromagnetic interference (EMI). To overcome this system-level challenge, this 10.11 inch IPS TFT LCD screen module incorporates a high-efficiency, multi-lane MIPI interface.
This industry-standard interface utilizes low-voltage differential signaling to transmit dense video datasets at lightning speed while keeping system power consumption and EMI footprints to an absolute minimum. This allows your engineering group to deploy fluid 60FPS animations, touch-responsive scrollable menus, and dynamic telemetry charts with near-zero latency. Furthermore, the intelligent layout of the integrated edge-side 1-LED lighting bar type backlight ensures a highly uniform distribution of photons across the entire ultra-long display matrix while efficiently channeling thermal dissipation away from the critical control circuitry.
10.11 inch IPS TFT LCD screen modulel,440x1920 resolution,custom stretched layout panel,440x1920 bar type display,ultra-wide 178-degree viewing angle.
The long, narrow architectural footprint of this 440x1920 bar type display makes it immensely flexible across various smart home automation and transportation systems. In the residential IoT sector, this panel acts as an excellent wall-mounted master controller, allowing homeowners to manage lighting zones, view security camera feeds, and check indoor air quality data on a single, continuous vertical layout. In the commercial vehicle market, it serves as a high-definition automotive mirror screen, delivering a continuous back-eye view of the highway via connected rear cameras without any interior blind spots.
Real-World Application Experience: Recently, an electronic hardware innovator successfully integrated this 10.11 inch IPS TFT LCD screen module into a premium, vertical home automation control tower. Their design team reported that the Normally Black IPS technology allowed users to easily view real-time smart home statuses from long distances and steep viewing angles without experiencing any contrast fade or annoying background light leakage.
For industrial original equipment manufacturers (OEMs), choosing a display module requires balancing advanced technical parameters with long-term component availability. Sourcing a commercial screen that experiences sudden component obsolescence creates logistical nightmares and expensive engineering redesign fees. This premium 10.11 inch IPS TFT LCD screen module comes backed by a guaranteed product life cycle exceeding 5 years, protecting your production timelines and your development budget. Designed to operate flawlessly in rugged environments, it safely handles a broad working temperature range from -20°C up to 70°C and storage criteria from -30°C to 80°C.

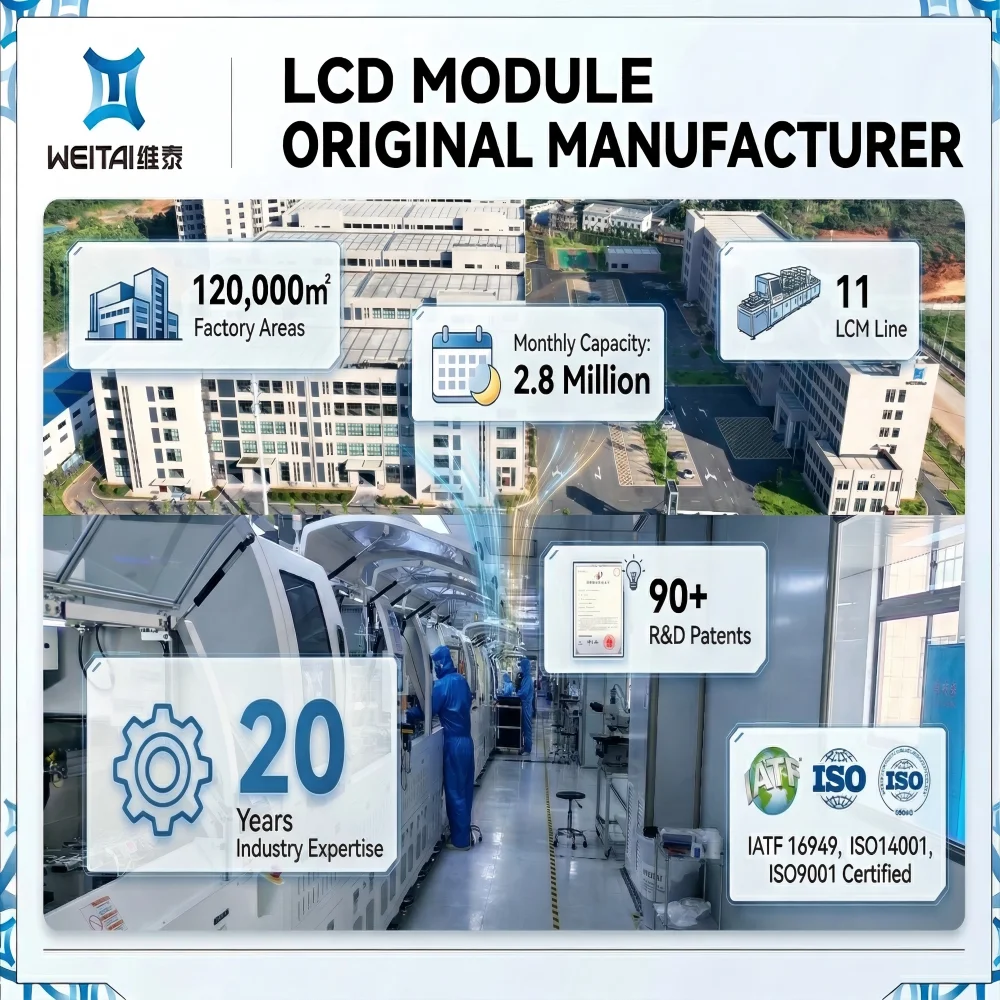

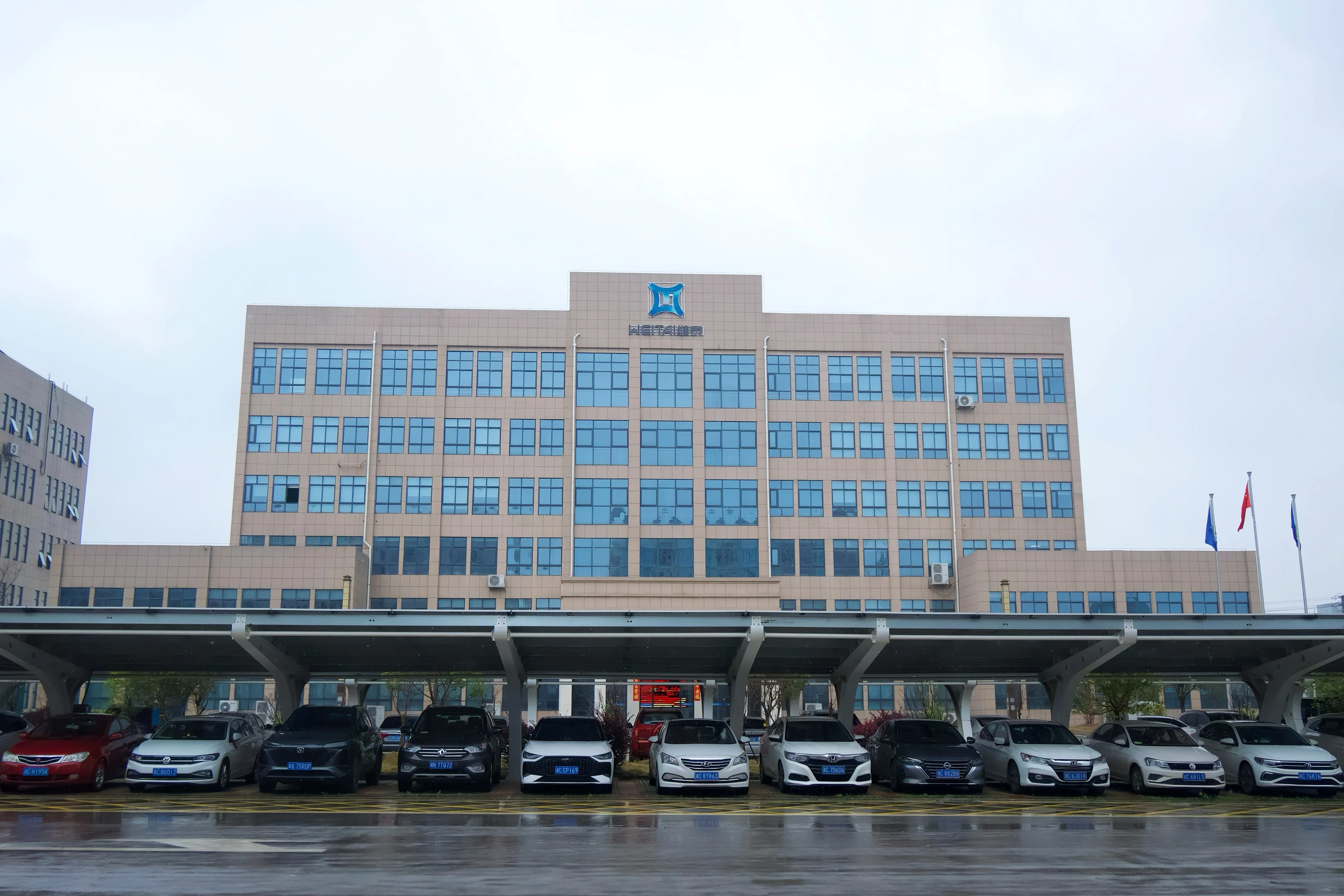

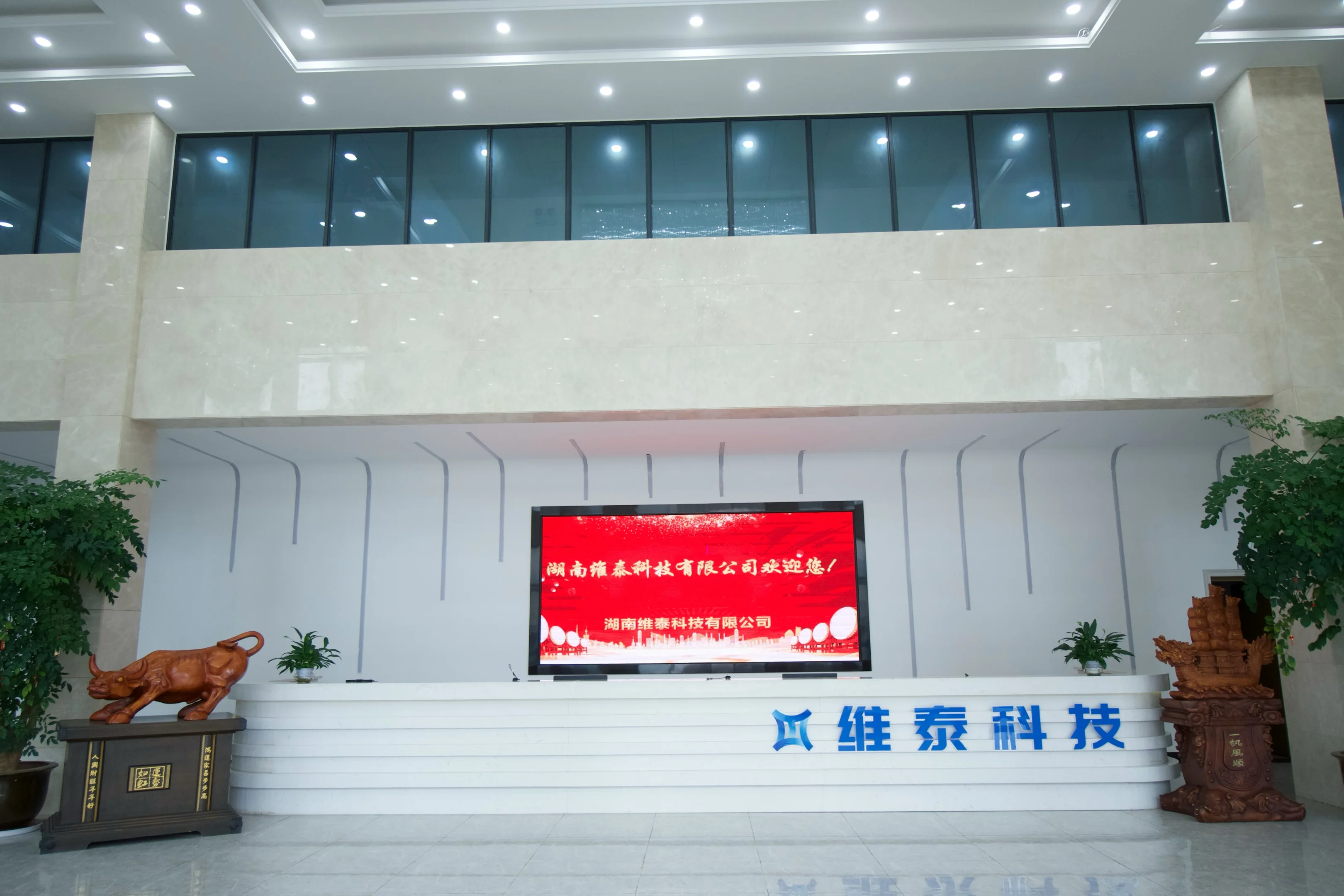

By coordinating your procurement through WEITAI, your team gains a reliable partnership with an IATF16949, ISO9001, and ISO14001 certified manufacturing powerhouse. Utilizing fully automated assembly lines driven by state-of-the-art MES and ERP management software, WEITAI maintains absolute internal control over the entire production cycle—from precision raw glass cutting and automated COG/FOG bonding to customized backlight development and full optical lamination. This dedicated approach guarantees a highly resilient, agile, and scalable display supply chain for all your large-scale electronic rollouts.
10.11 inch IPS TFT LCD screen modulel,440x1920 resolution,custom stretched layout panel,440x1920 bar type display,ultra-wide 178-degree viewing angle
