Versatile Stretched-Bar Visuals for Modern Interface Design

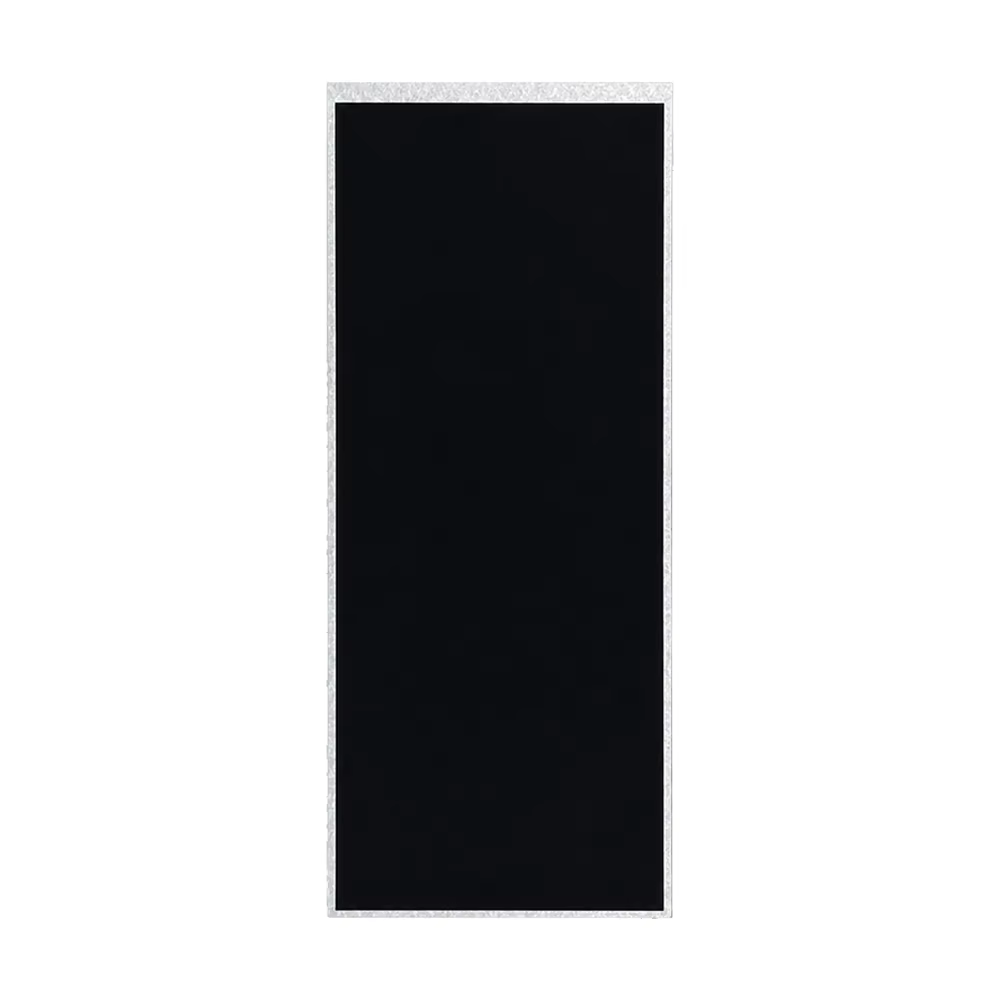

When standard display ratios no longer suffice for sophisticated industrial aesthetics, the 8.1 Inch IPS TFT LCD Display Module emerges as a game-changing component for hardware designers. This specialized 8.1 Inch IPS TFT LCD Display Module with RGB Interface offers an elegant stretched-bar form factor, characterized by its sharp 600x1600 resolution. Unlike traditional screens that feel bulky in narrow dashboards, this module allows for streamlined, high-density data visualization in constrained spatial environments. With a physical profile of 83.93 x 206.82 x 4.7 mm, it is thin enough to fit into flush-mounted Automotive display panels or sleek Smart Home control hubs without requiring significant chassis depth. Choosing this IPS LCD Module ensures that your product stands out with a professional, bespoke look that instantly communicates high-tech value to the end user.
Uncompromising Optical Performance through IPS Matrix Precision
The "secret sauce" behind the crystal-clear output of our 8.1 Inch IPS TFT LCD Display Module is the high-performance In-Plane Switching (IPS) matrix. For engineers working on Automotive display projects, viewing angles are a matter of safety and functional clarity. This 8.1 Inch IPS TFT LCD Display Module with RGB Interface delivers consistent color reproduction and deep contrast ratios from nearly any perspective, effectively eliminating the "washing out" effect common in legacy TN panels. Boasting a robust 500 cd/m2 brightness, the screen maintains peak legibility even in environments with heavy ambient light interference, such as sun-drenched vehicle cabins or brightly lit kitchen interfaces. This combination of 600x1600 resolution and superior luminance ensures that every pixel on the 8.10 inch IPS LCD Module is rendered with surgical precision.
Seamless RGB Interface Integration for High-Speed Graphical Rendering
From a technical integration standpoint, the RGB Interface utilized in this 8.1 Inch IPS TFT LCD Display Module provides a reliable and cost-effective data path for mid-to-high speed graphical updates. We understand that in complex embedded systems, signal integrity is paramount. The RGB Interface on this 8.1 Inch IPS TFT LCD Display Module allows for a direct drive from many industrial-grade SoCs, simplifying the driver development process during the EVT and DVT stages. By optimizing the pixel clock and timing parameters within this 600x1600 resolution unit, developers can achieve fluid animations and zero-latency UI responses. This is particularly beneficial for Smart Home applications where a "snappy" user experience is the benchmark for quality. Furthermore, the lightweight design at 118.4g reduces mechanical stress on the primary PCB, ensuring long-term interconnect reliability.
RGB Interface, Automotive display, Smart Home, 600x1600 resolution, 500 cd/m2
|
8.10 inch IPS LCD Module |
Resolution |
600*1600 |
Brightness |
|
Weight |
118.4g |
Size |
83.93*206.82*4.7 mm |
Active Area |
72.234(H) x 192.624(V) mm |
Interface |
RGB |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Application |
Automotive display/Smart Home |
Exceptional Thermal Resilience and Durability in Demanding Locales
Durability is not just a feature; it is a B2B requirement. This 8.1 Inch IPS TFT LCD Display Module with RGB Interface is engineered to survive the rigors of the field, boasting a wide Working temperature -20°C~70°C and an even broader Storage Temperature -30°C~80°C. In our extensive testing at WEITAI, we have found that the high-transmittance liquid crystal materials used in this IPS LCD Module are resistant to the "blackening effect" often seen when displays are exposed to direct sunlight for prolonged periods. Whether it is a cold start in a frigid winter morning for a truck display or the sustained heat of a smart oven control panel, the 8.10 inch IPS LCD Module remains stable and responsive. This ruggedized construction significantly lowers the total cost of ownership by reducing field failures and expensive warranty claims for our global partners.
Strategic Commercial Upside and Multi-Industry Implementation
Investing in a specialized display like the 8.1 Inch IPS TFT LCD Display Module offers immediate commercial dividends. In a recent case study, an automotive aftermarket client replaced their traditional 4:3 mirrors with our 600x1600 resolution bar-type display, resulting in a 25% increase in consumer perceived value and a faster path to PVT (Production Validation Test). Beyond the vehicle, this 8.1 Inch IPS TFT LCD Display Module with RGB Interface is revolutionizing the Smart Home sector, appearing in high-end refrigerator doors and smart thermostats as a premium control strip. The versatility of the IPS LCD Module allows manufacturers to unify their design language across multiple product lines. Because WEITAI guarantees a product life cycle of over 5 years, your procurement team can rest easy knowing that the risk of component obsolescence is virtually eliminated.
Certified Manufacturing Prowess and Scalable Supply Solutions
Strategic partnerships thrive on transparency and manufacturing depth. WEITAI brings over 20 years of vertical expertise to every 8.1 Inch IPS TFT LCD Display Module with RGB Interface produced. As a national "Specialized & Sophisticated" enterprise, WEITAI manages the entire value chain—from ultra-clean glass cutting and COG/FOG bonding to the automated manufacturing of LED backlights. Our production facilities are fully synchronized via ERP and MES systems, maintaining the stringent quality standards of IATF16949, ISO14001, and ISO9001. With a massive annual capacity of 30,000,000 pieces, WEITAI has the industrial muscle to scale from initial sample orders to high-volume global rollouts. By choosing WEITAI, you are securing a resilient supply chain backed by automated precision and the engineering depth required to turn a conceptual UI into a world-class physical product.
Q1: Do you accept sample order or small quantity order?
A1: Yes, you can place sample orders for testing first, we will fully support you every stage of new product introduction,from
EVT -> DVT -> PVT, until mass production.
Q2: How do you guarantee the quality?
A2: We are qualified for a series of quality system certification (ISO14001 etc.) and brand customer factory audit every year.
We have strict supplier quality control system from NPI to each lot mass production, and routine supplier's factory audit will be done every year.
Q3: Could you offer OEM&ODM service?
A3: Yes, we have sufficient capacity（30,000,000pcs/years） to provide OEM&ODM service.
Q4: How long is your product life cycle?
A4: The average life cycle of most of our products is more than 5 years.
