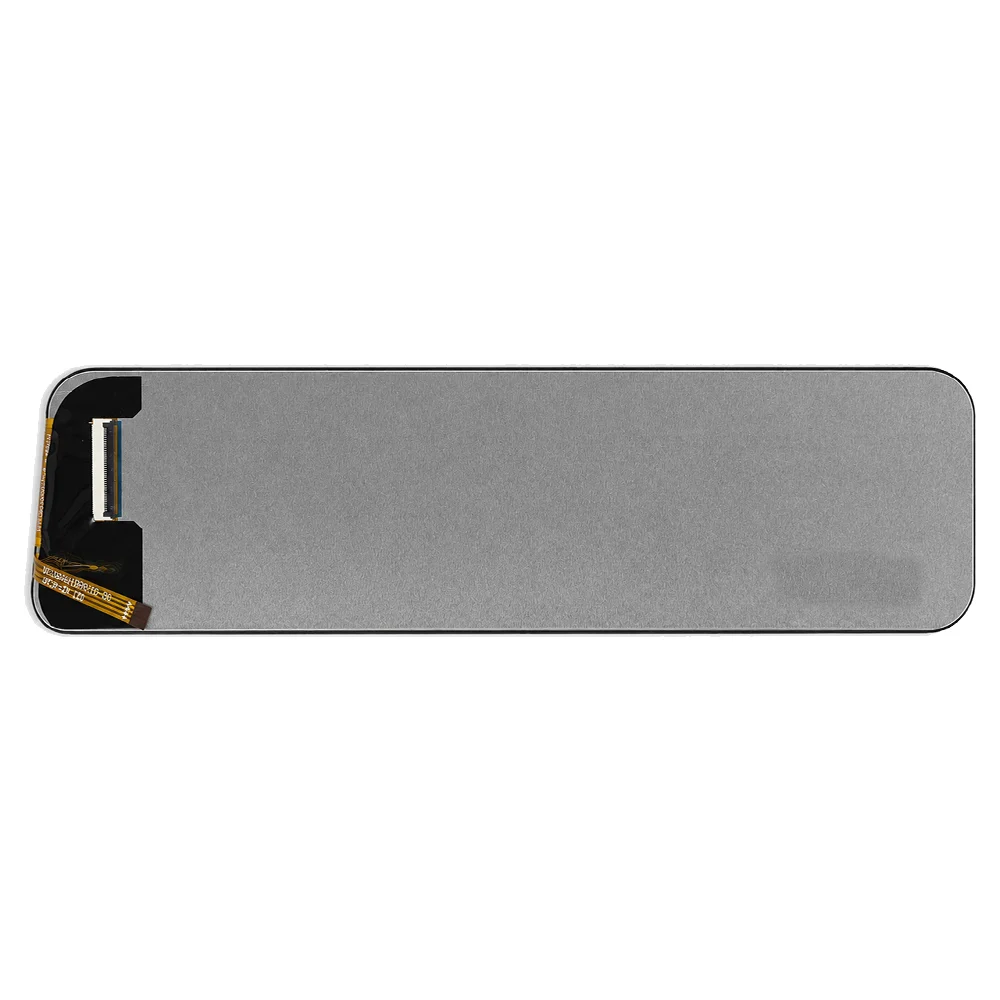

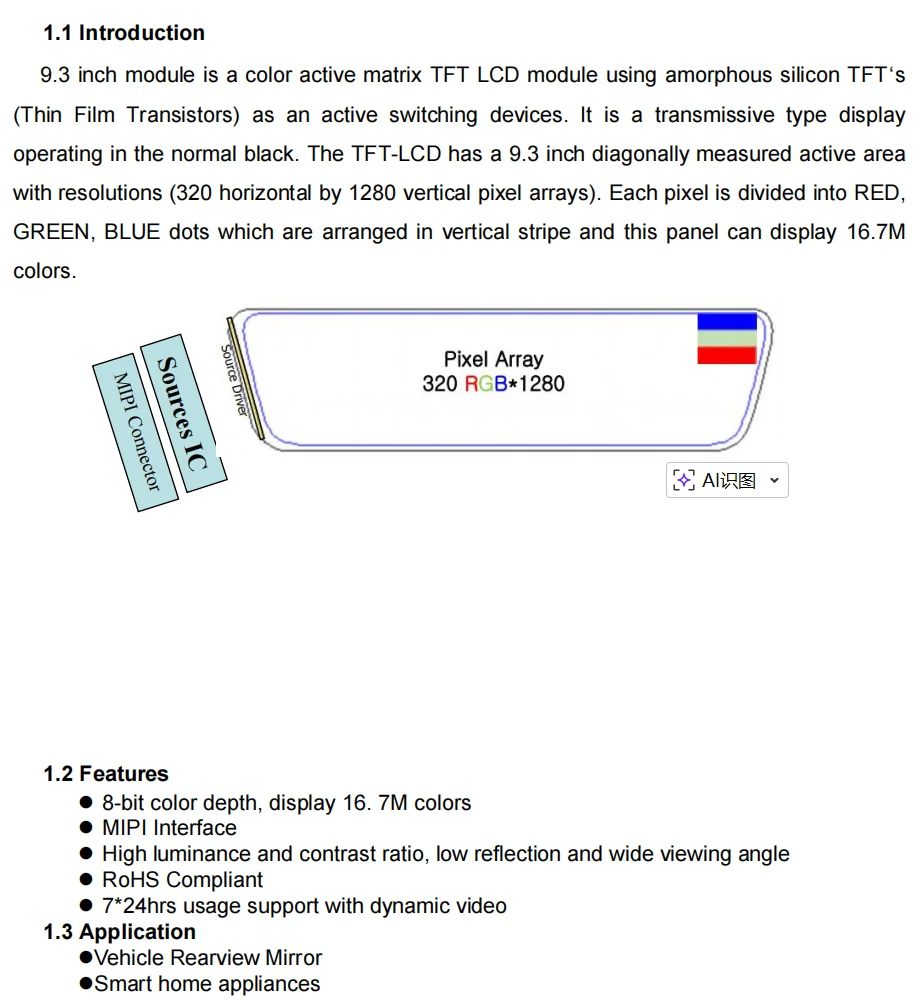

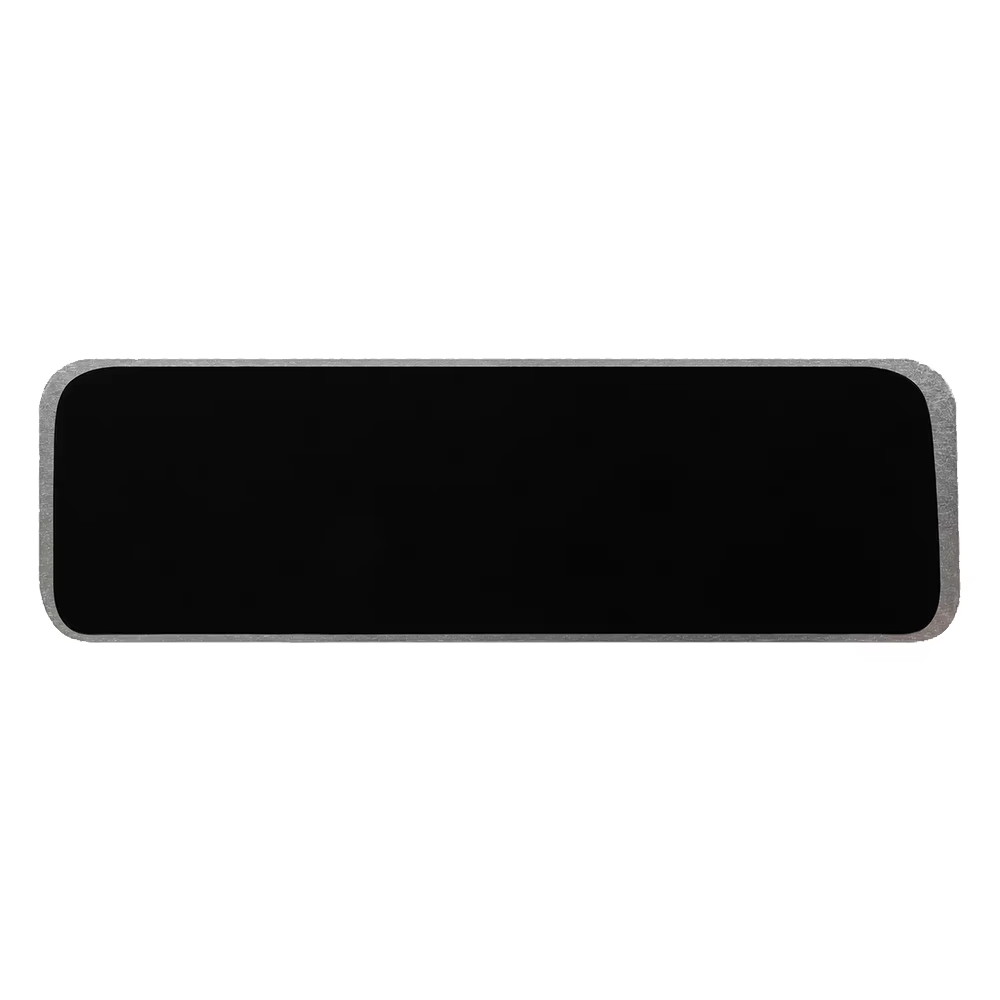

Designing next-generation human-machine interfaces for modern smart homes and streamlined vehicle interiors frequently challenges hardware engineers to break free from traditional 4:3 or 16:9 aspect ratios. This premium 9.30 inch IPS TFT LCD screen module represents the absolute cutting edge of non-standard, ultra-narrow industrial display layout technology. Engineered with a unique native 320x1280 resolution configured in an ultra-wide stretched bar format, this 320x1280 stretched layout bar screen provides product design teams with an incredible mechanical advantage.

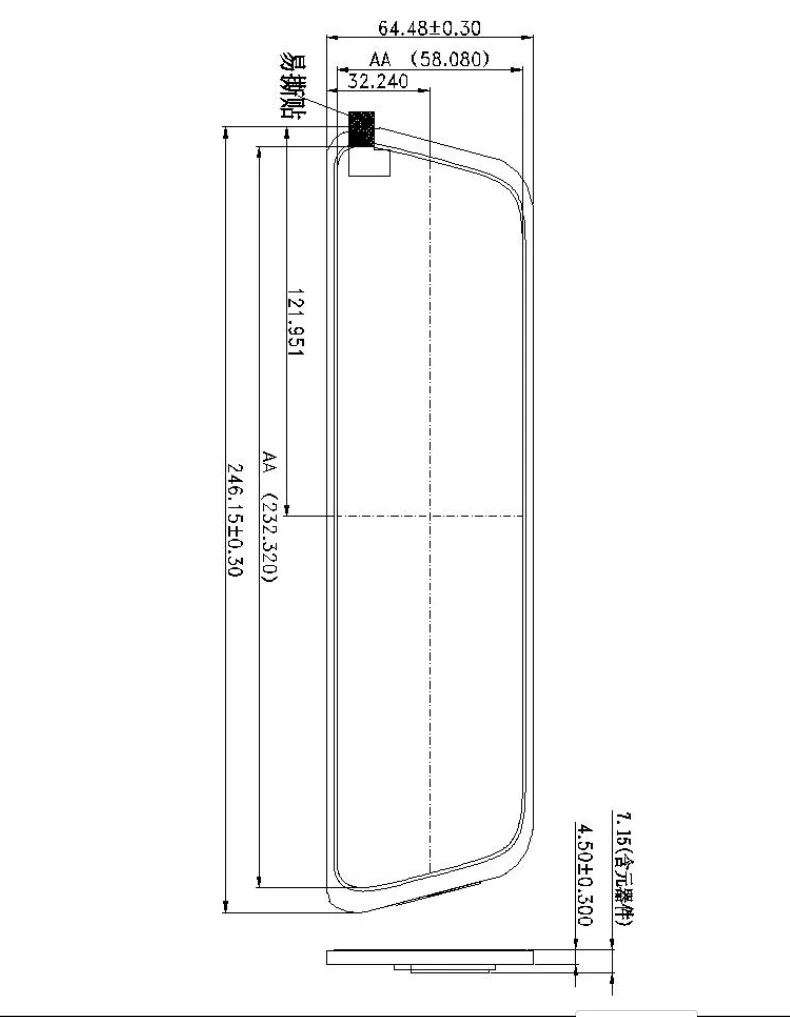

With precise physical dimensions measuring 246.15 x 64.48 x 7.15 mm, it slips seamlessly into highly restricted installation areas without requiring massive structural alterations.
Weighing an ultra-light 112.2g, its lightweight construction significantly minimizes the stress placed on internal housing brackets. This makes the overall physical assembly process highly efficient and secure for commercial production rollouts, especially in sleek overhead smart home control stations or narrow car dashboard housings.
Superior Visual Clarity Under Direct Sunlight Via High-Luminance IPS Crystals
When you deploy an intelligent display panel into an automotive cockpit or an outdoor-facing smart device, changing ambient light presents a serious readability challenge. Standard commercial screens wash out completely under direct midday sun, rendering vital real-time video feeds or diagnostic data completely unreadable. To solve this critical industry pain point, this 750cd/m² high brightness automotive panel is built around an advanced high-efficiency LED backlight matrix that pushes an impressive 750 cd/m² brightness rating.
Utilizing native premium In-Plane Switching (IPS) crystal technology, the panel delivers flawless color accuracy and perfect contrast control across an ultra-wide 178-degree viewing angle.
Boasting an exact active display area of 58.08(H) x 232.32(V) mm, every single graphical element, system menu, or rear-view video stream shows up with stunning clarity. Furthermore, the module safely handles an industrial operating temperature range spanning from -20°C up to 70°C, and storage criteria from -30°C to 80°C, ensuring total optical reliability across changing seasonal environments.
Produce Name |
9.30 inch IPS LCD Module |
Resolution |
320*1280 |
Brightness |
750 cd/m2 |
Weight |
112.2g |
Size |
246.15*64.48*7.15 mm |
Active Area |
58.08(H)*232.32 (V) mm |

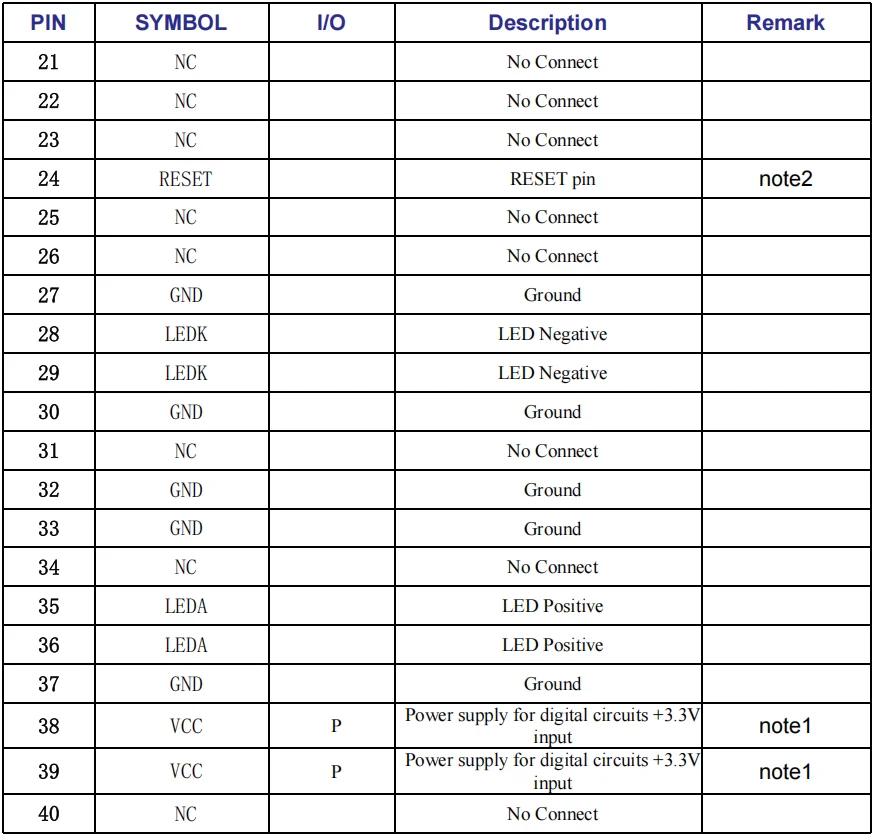

Interface |
4-Lane MIPI |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Application |
Automotive display/Smart Home |

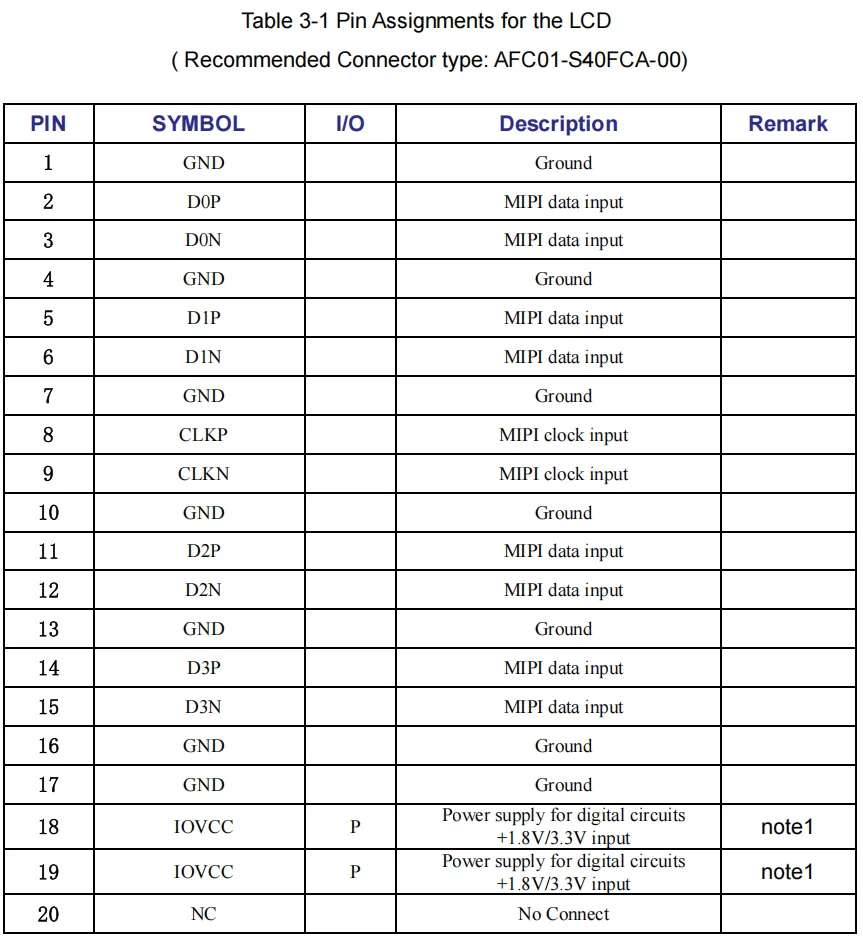

Modern high-performance electronic devices and interactive automation systems require rapid frame rates and instantaneous UI feedback, but legacy parallel RGB or old-school MCU display interfaces often fail because they require excessively high pin counts and produce problematic electromagnetic interference (EMI). To overcome this system-level integration hurdle, this 9.30 inch IPS TFT LCD screen module incorporates a high-efficiency, high-bandwidth 4-lane MIPI interface.
This advanced interface protocol utilizes low-voltage differential signaling to transmit dense video datasets at lightning speed while keeping system power consumption and EMI footprints to an absolute minimum.
This allows your engineering group to deploy fluid 60FPS high-definition animations and touch-responsive menus with near-zero latency. Additionally, the optimized interface layout helps protect adjacent electronic components, such as high-frequency GPS or wireless tracking sensors, from signal degradation.
The long, narrow physical form factor of this 4-lane MIPI interface display terminal makes it immensely flexible across various smart home automation and transportation ecosystems. In the residential IoT sector, this panel acts as an excellent wall-mounted master controller panel, allowing users to monitor home security grids, view camera feeds, and manage lighting zones on a single, continuous vertical layout. In the commercial vehicle market, it serves as a high-definition digital mirror display, providing a clear back-eye view of the road without any interior blind spots.
Real-World Application Experience: Recently, a major smart transport systems integrator successfully integrated this 9.30 inch IPS TFT LCD screen module into a fleet of specialized delivery vehicles as an electronic rear-view display terminal. Their hardware team reported that even when drivers faced intense morning sun glare directly striking the windshield, the high-luminance 750cd/m² high brightness automotive panel allowed them to easily monitor blind spots without experiencing eye strain or annoying contrast fade. The rugged design operated flawlessly throughout continuous 12-hour shifts.
For international electronic original equipment manufacturers (OEMs), choosing a display component requires balancing advanced technical performance with long-term component availability. Sourcing a commercial screen that experiences sudden component obsolescence creates logistical nightmares and expensive engineering redesign fees. This premium 9.30 inch IPS TFT LCD screen module offers excellent commercial value, coming with a guaranteed product life cycle exceeding 5 years, protecting your production timelines and your development budget.
By coordinating your procurement through WEITAI, your team gains a reliable partnership with an IATF16949, ISO9001, and ISO14001 certified manufacturing powerhouse.
Utilizing fully automated assembly lines driven by state-of-the-art MES and ERP management software, WEITAI maintains absolute internal control over the entire production cycle—from precision raw glass cutting and automated COG/FOG bonding to customized backlight development and full optical lamination. This dedicated approach guarantees a highly resilient, agile, and scalable display supply chain for all your large-scale electronic rollouts.
