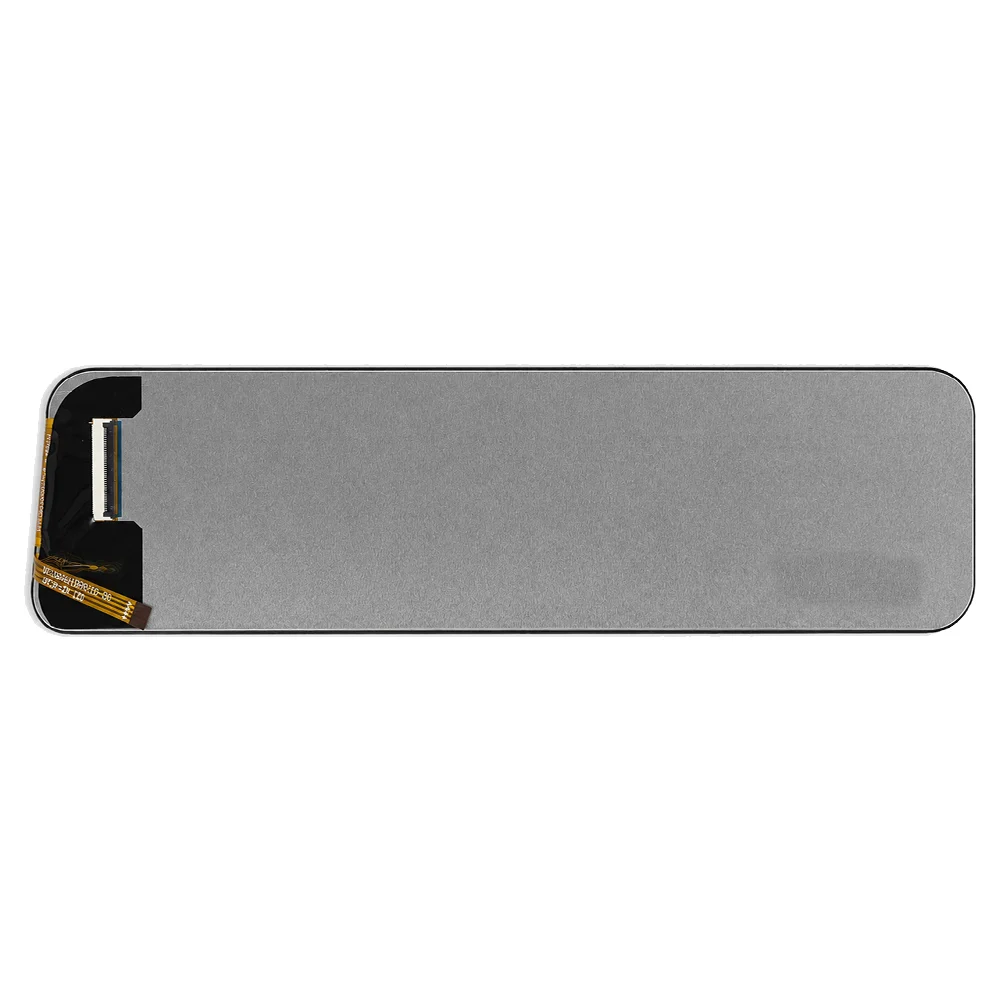

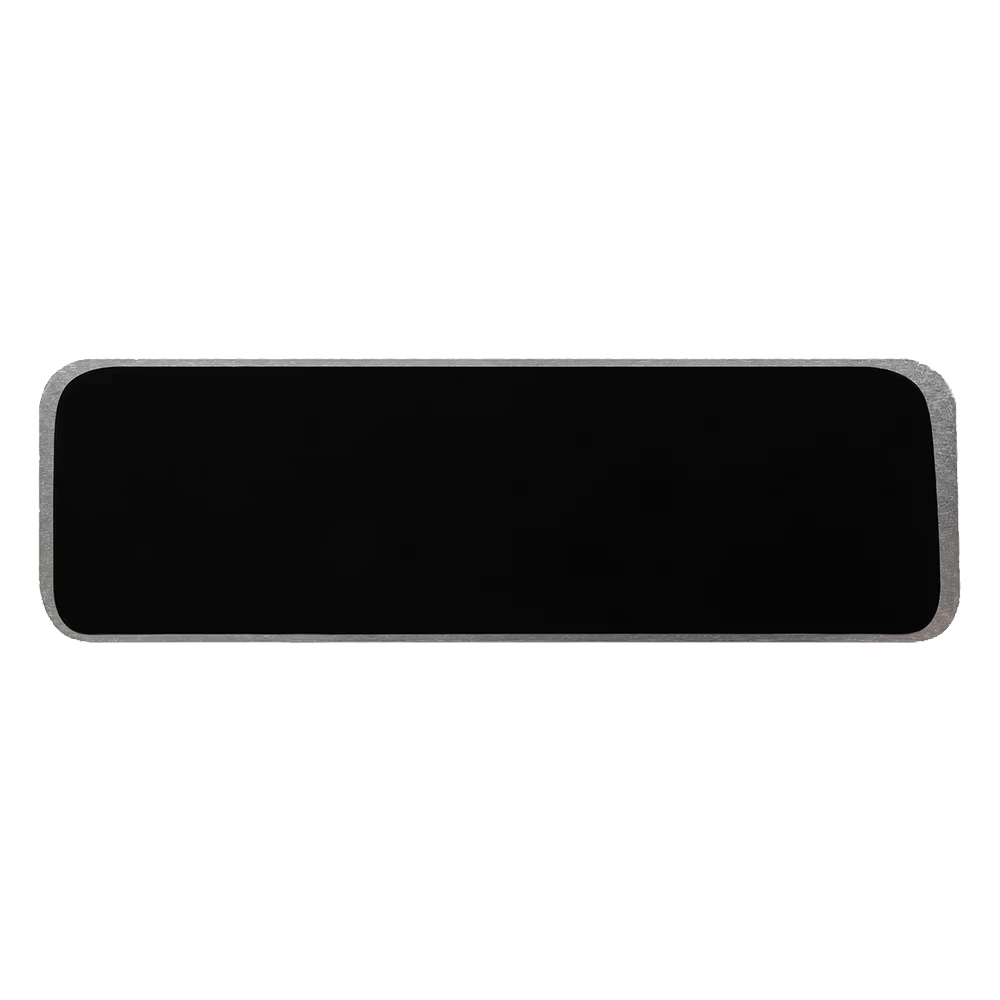

Modern automotive vehicle cabins and streamlined smart home environments are moving away from bulky, traditional square monitors. If you are trying to squeeze a high-density dashboard array or an elegant wall control unit into restricted physical dimensions, standard widescreen formats simply won’t cut it anymore. This is exactly where the WeiTai factory custom 9.30 inch IPS TFT LCD display module steps up to the plate. Featuring a unique ultra-wide RGB 320x1280 resolution MIPI interface setup, this unique stretched bar-type vehicle display panel is specifically engineered to deliver real-time data in narrow spaces without taking over the entire dashboard frame. Weighing only 112.2 grams and sporting a remarkably sleek, slim-bezel design of 246.15 x 64.48 x 7.15 mm, this hardware allows Tier-1 automotive integrators and home automation developers to embed a clean, crisp digital window into tight housings without complicating the final product design assembly.
Whether you are putting together an electronic rear-view monitor or a high-end kitchen appliance hub, dealing with varying indoor ambient light and car cabin reflections can be a major engineering headache. This premium WeiTai factory custom 9.30 inch IPS TFT LCD display module handles these shifts beautifully by running a perfectly balanced 450 cd/m² luminescence matrix. Backed by In-Plane Switching display architecture, this commercial widescreen TFT screen panel provides a full 178-degree wide viewing angle across its entire 58.08 mm x 232.32 mm active display field. This specialized optical setup ensures that drivers and users get absolute visual clarity with zero color shifting, contrast washouts, or annoying grayscale inversion, regardless of their viewing position or off-axis angles.
High-Throughput MIPI Interconnect and Technical Specifications
Processing lag-free, real-time video streaming requires an incredibly efficient data pipeline. This RGB 320x1280 resolution MIPI interface display module features a low-latency Mobile Industry Processor Interface layout that significantly cuts down on electromagnetic interference while easily handling high data bandwidth. This makes it an ideal match for processing live camera feeds or rendering fluid user interface animations on the fly. Engineered to stay tough against rough seasonal weather conditions, this rugged high-definition automotive display module operates smoothly within a temperature window of -20°C up to 70°C and survives storage stress ranging from -30°C to 80°C. For development teams currently working on circuit schematics and hardware housing designs, the precise technical specifications are structured below:

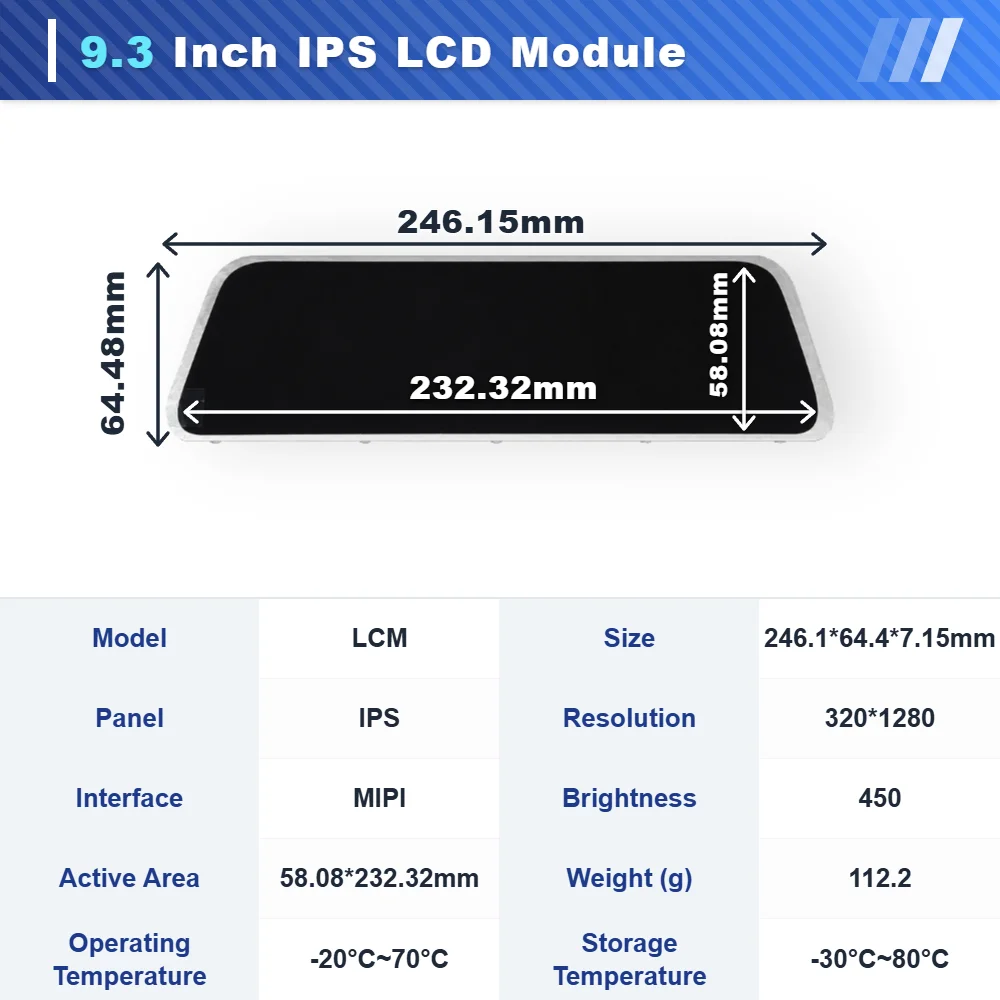

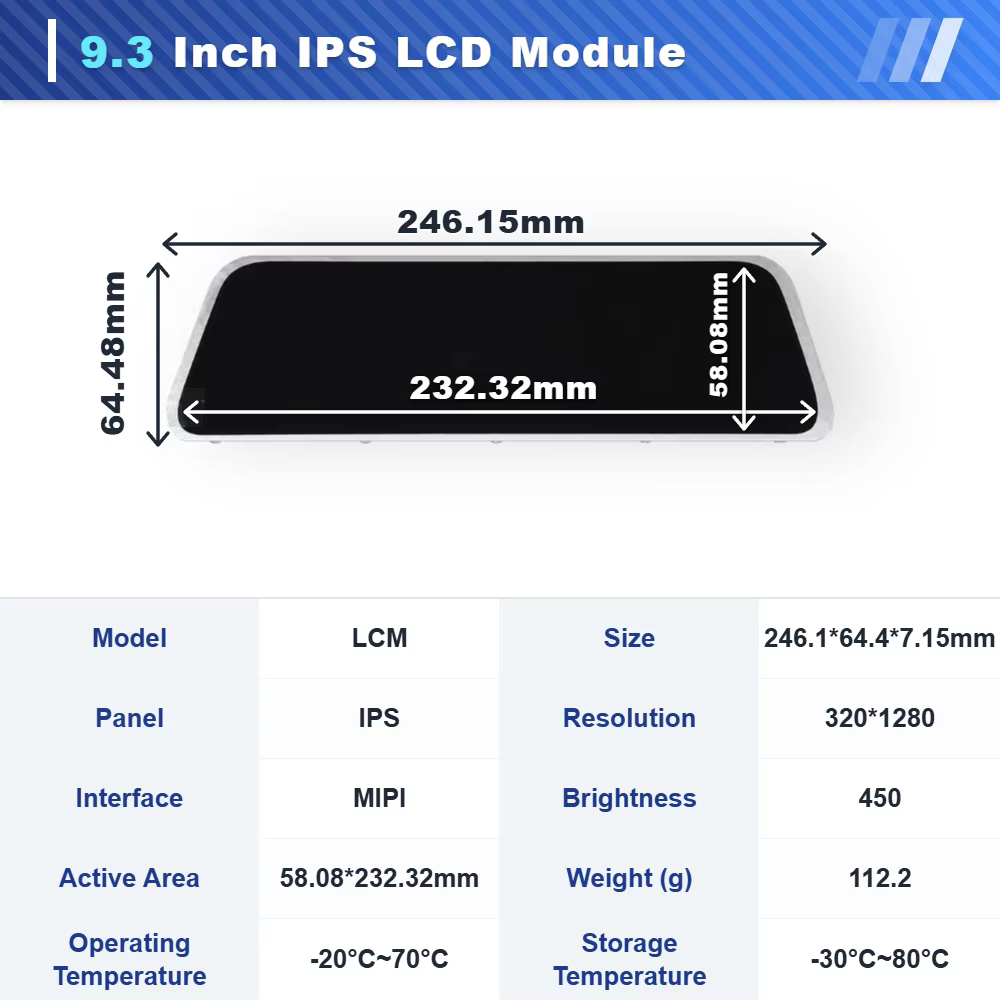

Product Nomenclature: WeiTai Factory Custom 9.30 Inch IPS TFT LCD Display Module
Native Grid Resolution: 320 × 1280 Pixels
Surface Luminance Output: 450 cd/m²
Active Viewing Zone (HxV): 58.08 mm × 232.32 mm
Physical Module Dimensions: 246.15 mm × 64.48 mm × 7.15 mm
Total Component Net Weight: 112.2 g
Signaling Interface Type: Mobile Industry Processor Interface (MIPI Layout)
Thermal Operating Range: -20°C to +70°C
Thermal Storage Range: -30°C to +80°C
This specialized stretched bar-type vehicle display panel has built up a great track record in demanding real-world field applications. Not long ago, a client working on an upgraded delivery van dashboard array ran into serious display flickering and touch disconnects during early road tests. These issues were caused by the intense structural vibration profiles of commercial vehicles. Working side-by-side with their engineering team through the EVT and DVT milestones, technical support specialists isolated the core issue and reinforced the mechanical layout of the COG and FOG bonding points. Thanks to these quick adjustments, the rugged slim-bezel liquid crystal display monitor sailed right through the final PVT manufacturing run. It proved it could maintain absolute signal stability and structural endurance even through heavy road bumps and sharp interior temperature shifts, helping the client speed up their time-to-market significantly.
Produce Name |
9.30 inch IPS LCD Module |
Resolution |
320*1280 |
Brightness |
450 cd/m2 |
Weight |
112.2g |
Size |
246.15*64.48*7.15 mm |
Active Area |
58.08(H)*232.32 (V) mm |
Interface |
MIPI |
Working temperature |
-20°C~70°C |
Storage Temperature |
-30°C~80°C |
Application |
Automotive display/Smart Home |

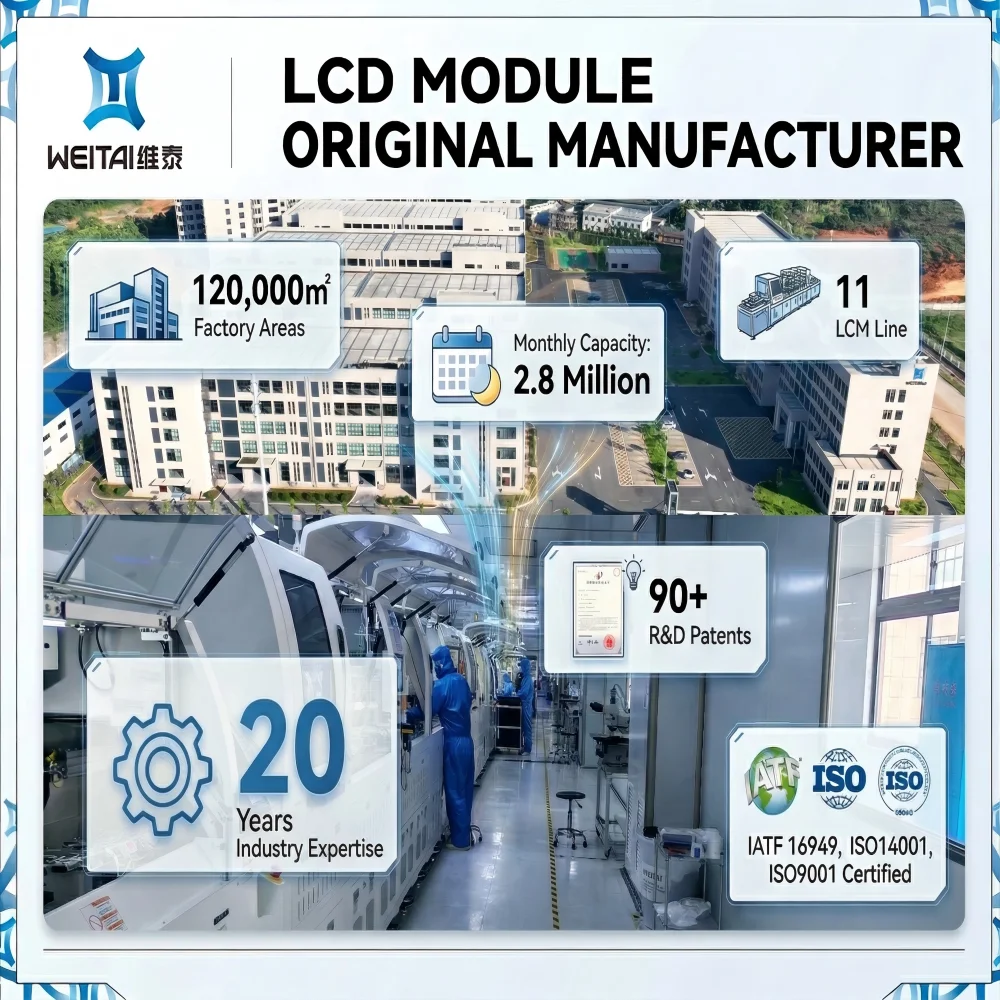

When you are locking in components for multi-year industrial programs or automotive lines, you need a manufacturing partner who can back up their claims with true production control. WEITAI operates fully automated fabrication facilities running synchronized ERP and MES software infrastructure. This means full management of the entire value chain under one roof—from high-precision glass cutting and terminal bonding to specialized backlight assembly and complex full-lamination treatments. Holding core quality benchmarks including IATF16949, ISO9001, and ISO14001, every batch of this WeiTai factory custom 9.30 inch IPS TFT LCD display module undergoes rigorous automated optical inspection before leaving the shipping dock. Backed by an annual manufacturing capacity exceeding 30 million units, WEITAI delivers a highly dependable OEM and ODM pipeline along with a guaranteed product lifecycle of over 5 years to keep your assembly lines moving without unexpected EOL risks.
What does the engineering workflow look like for integrating a custom stretched bar-type vehicle display panel? Comprehensive engineering consulting is available through every major milestone of New Product Introduction. Technical support teams guide you directly through the EVT, DVT, and PVT engineering phases, assisting your development squad with MIPI register timing adjustments and initialization code optimization to ensure perfect compatibility with your specific hardware processing platform.
Can your factory handle custom hardware modifications for the flexible printed circuit or touch screen layers? Yes, customizing hardware to match specific project goals is a core part of the standard service catalog. Thanks to extensive in-house full-lamination lines and agile development teams, flexible printed circuit (FPC) paths can be completely re-routed, capacitive touch screens (CTP) integrated, and anti-glare or anti-reflective surface coatings applied to perfectly fit your target operating environment.
How does WEITAI guarantee long-term component lifecycle stability for B2B buyers? A strict supplier quality control system is maintained from initial NPI right through to mass production. WEITAI conducts routine factory audits every single year and officially guarantees a lifecycle of over 5 years for most of our display catalog, protecting your commercial project from supply chain disruptions or sudden component obsolescence.
